TX200 S6 Operating Manual 105
CSS components
8.2.1.2 Removing system fan 2 (and 4)

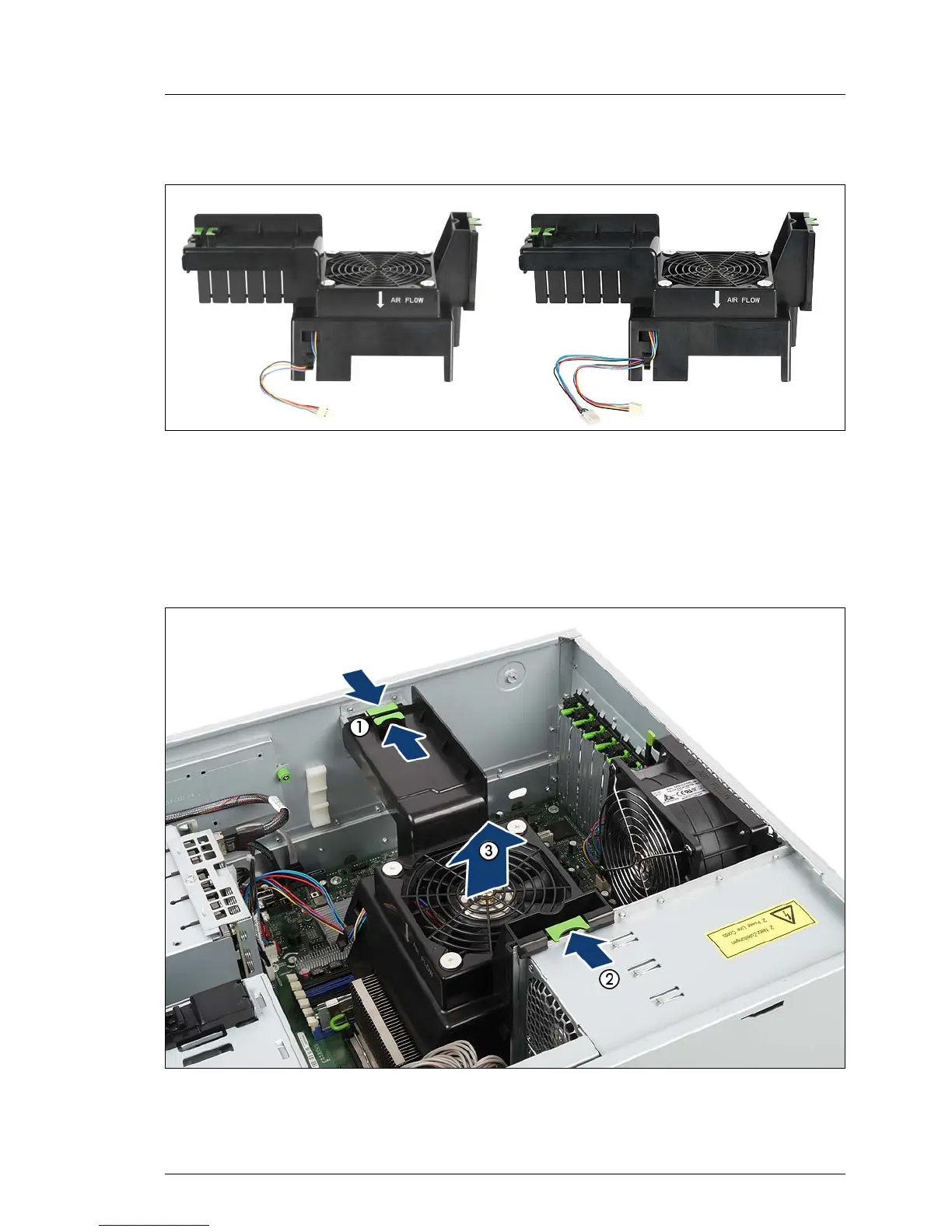

Figure 28: System fan 2 and system fan 2&4
The standard system fan 2 has just one fan cable; the redundant system
fan 2&4 (double fan) has two fan cables (as two fans are integrated internally).
The procedure for installing and removing both system fans is identical except
for connecting the fan cables.
Figure 29: Example: Removing system fan 2&4
