110 Operating Manual TX200 S6
CSS components
8.2.4 Replacing an expansion card
8.2.4.1 Removing a defective expansion card

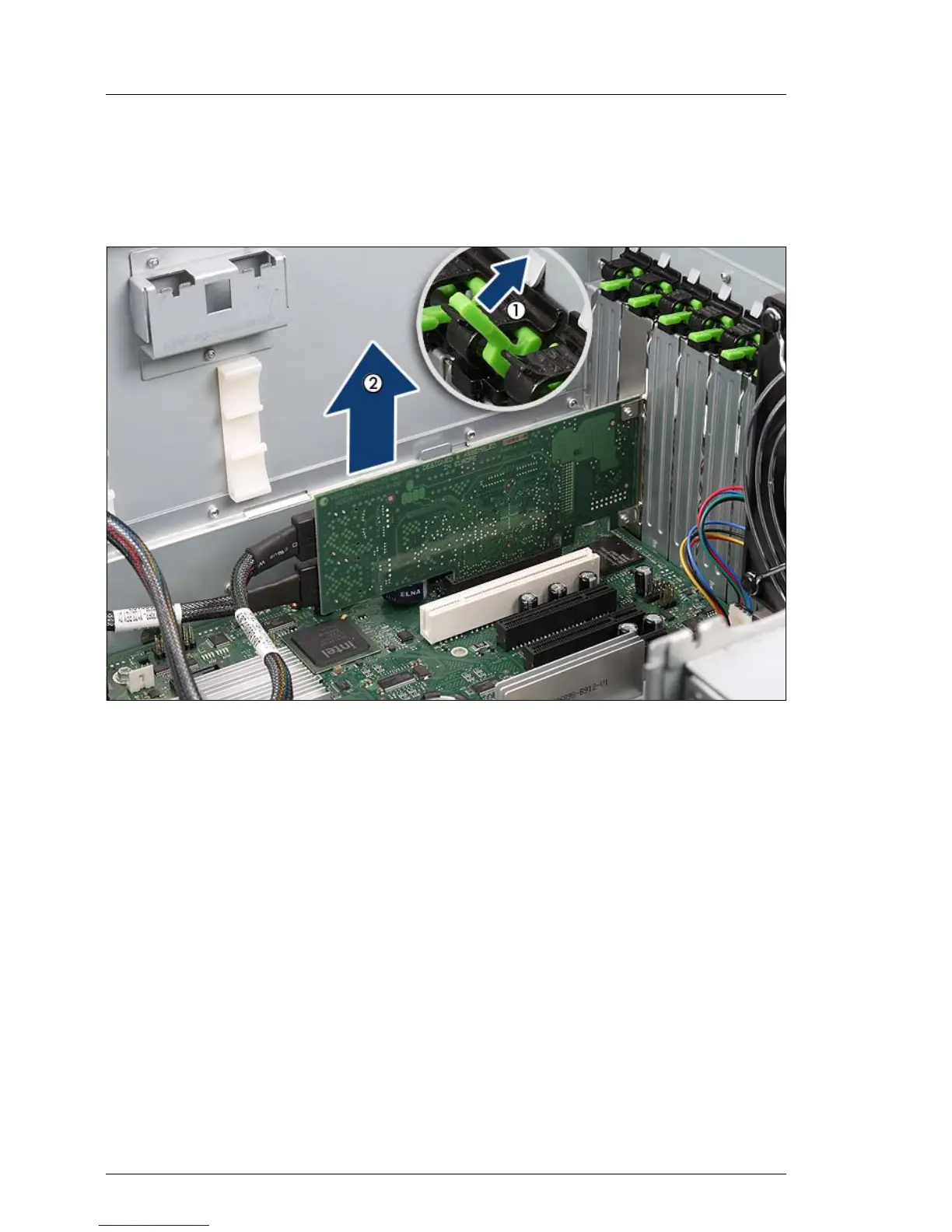

Figure 34: Removing a defective expansion card
Ê If necessary, remove the cables from the defective expansion card.
Ê Push the lever upwards (1).
Ê Press onto the clip and remove it.
Ê Pull the defective expansion card out of its slot (2).
