Fujitsu PRIMERGY TX200 S6

108 Operating Manual TX200 S6
CSS components
8.2.2 Replacing a memory module
8.2.2.1 Removing a defective memory module

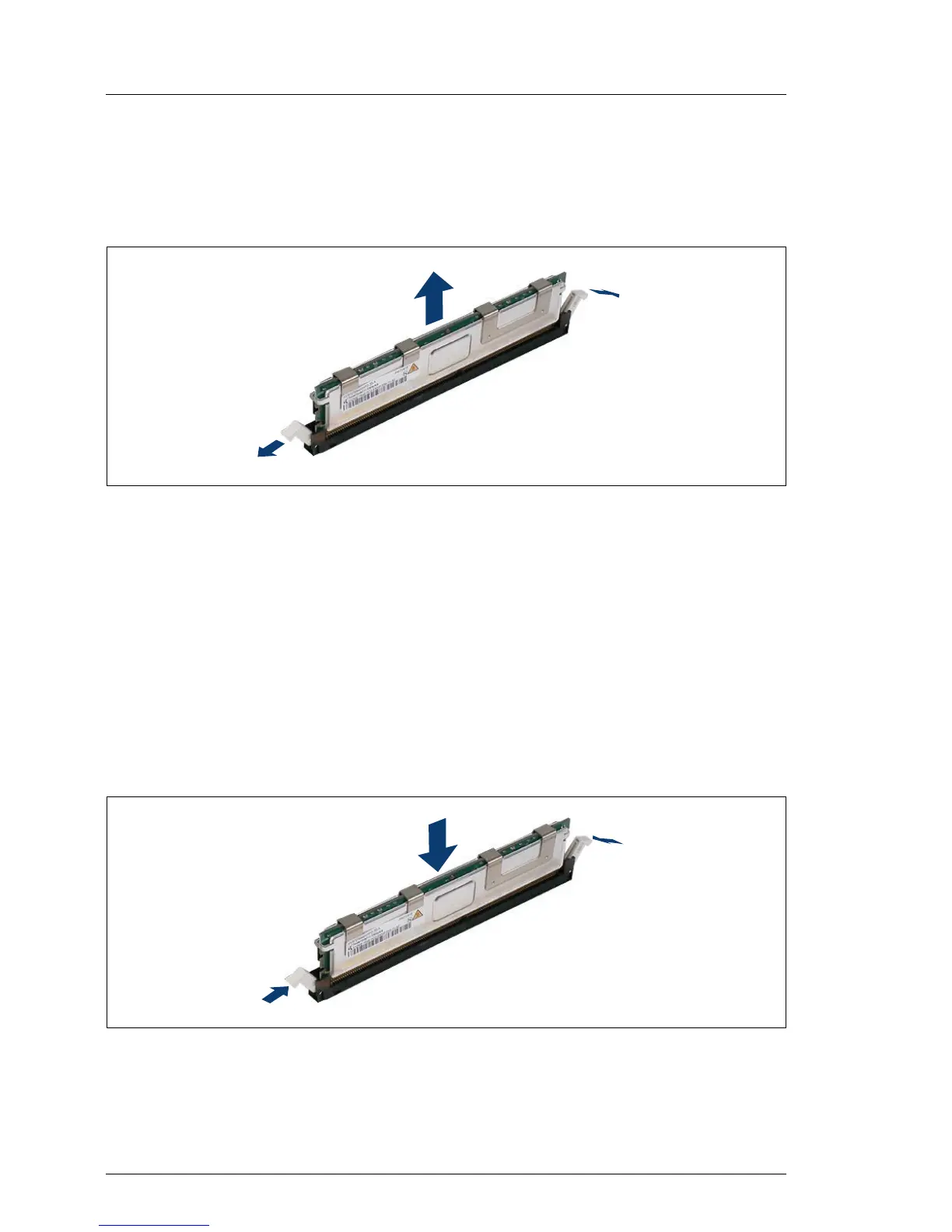

Figure 32: Removing a memory module
Ê Press the securing clips on both sides of the memory slot concerned
outward. (1).
Ê Pull the defective memory module out of the slot (2).
8.2.2.2 Installing a new memory module
V CAUTION!
Please note the equipping rules in the technical manual for the system
board D2799.
Figure 33: Inserting a memory module
Ê Carefully press the memory module into the slot (1) until the securing clips
on both sides of it engage (2).
1
2
1
2
1
2
