TX200 S6 Operating Manual 55
Hardware installation
I The support system no longer has to be fixed to the front support
upright because the easy lock engages and ensures a firm fit.
Ê Insert (3) the safety lock into the easy lock (snap fit).
V CAUTION!
Ensure that the safety lock has been inserted before the server is
inserted!
Ê Repeat the above steps for the right-hand support system (with the front and
rear right support uprights).
Ê Fit the PRIMECENTER/DataCenter rack cable management as described in
the technical manual for the corresponding rack.

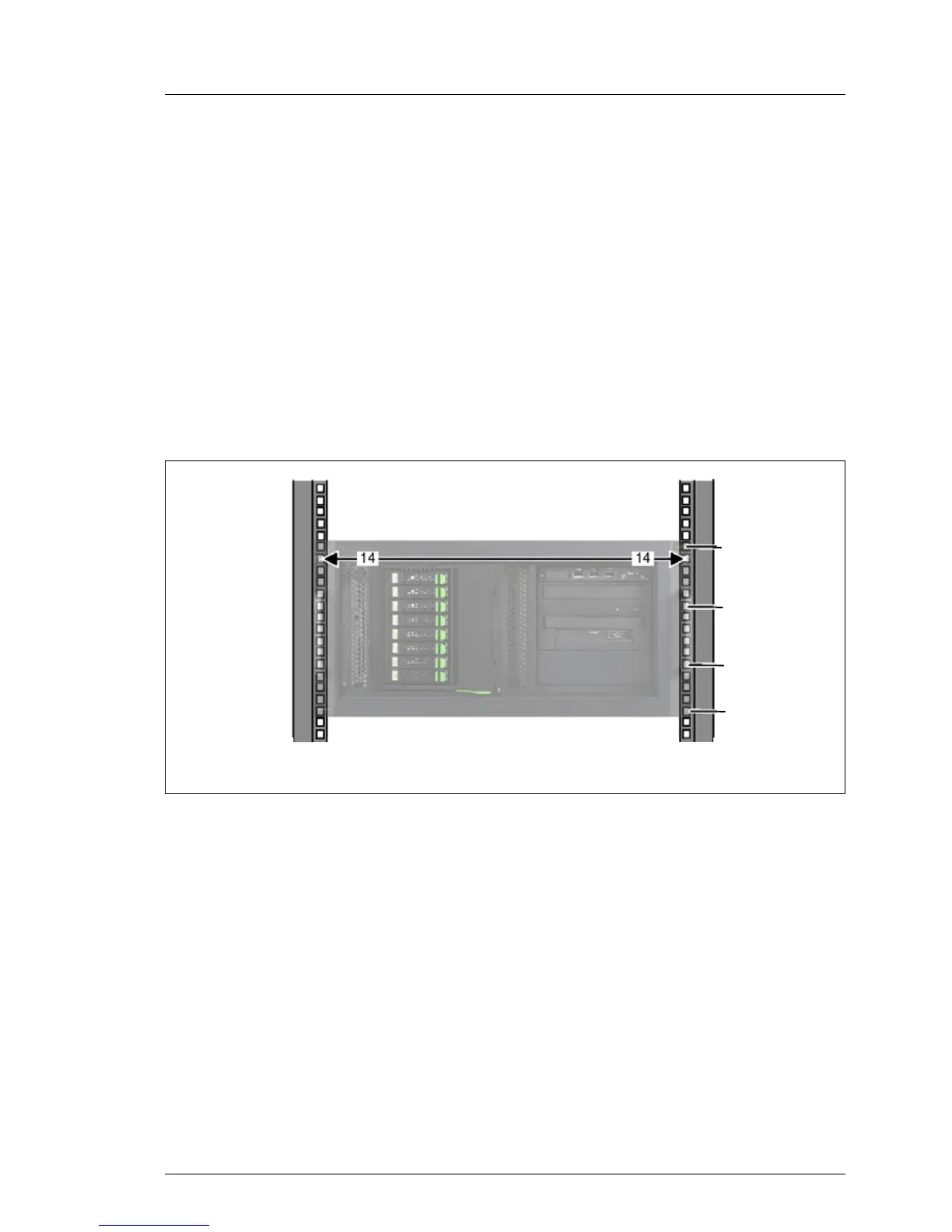

Figure 6: Position of the cage nuts
Ê Fit the cage nuts for securing the server in the corresponding catches on the
right and left support uprights.
Ê Insert the server (see "Inserting the server" on page 56).
