28 Operating Manual TX2550 M5
Product description
3.3.1.2 Server rear

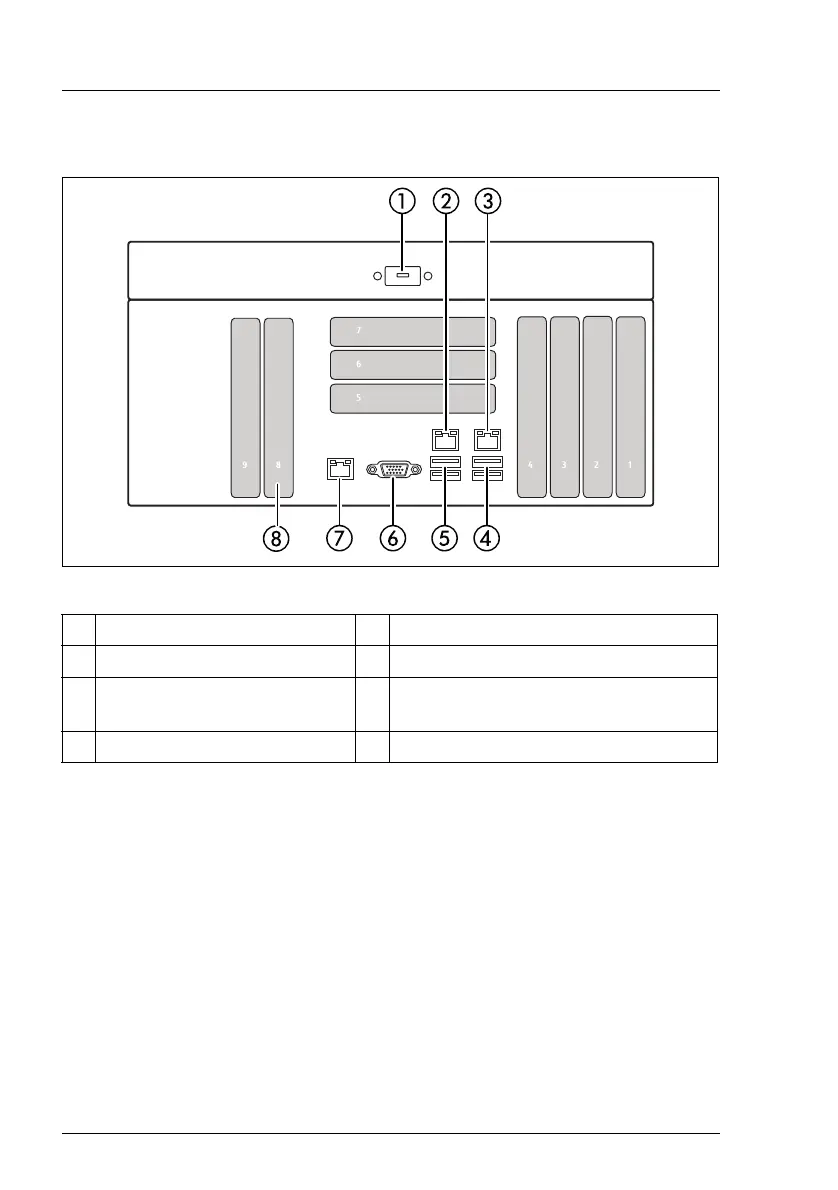

Figure 6: Connectors on the I/O panel
The corresponding indicators are explained in section "Indicators on the server
rear" on page 36.
I Depending on the BIOS settings, the shared LAN connector may also be
used as a management LAN connector. For more information, see the
corresponding BIOS Setup Utility reference manual.
I Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
1* Serial connector (optional) 5 2x USB connectors (USB 3.0)
2 Shared LAN connector 6 Video connector (VGA)
3 LAN connector 7 Management LAN connector (for
iRMC server management function)
4 2x USB connectors (USB 3.0) 8 Dedicated slot for OCP modules
* The serial connector can be used as the standard interface or for
communication with iRMC.
