Fujitsu PRIMERGY TX2550 M5 - Access to the drives (floorstand model)

80 Operating Manual TX2550 M5
Operation
6.2 Access to the drives (floorstand model)
6.2.1 Removing the drive covers

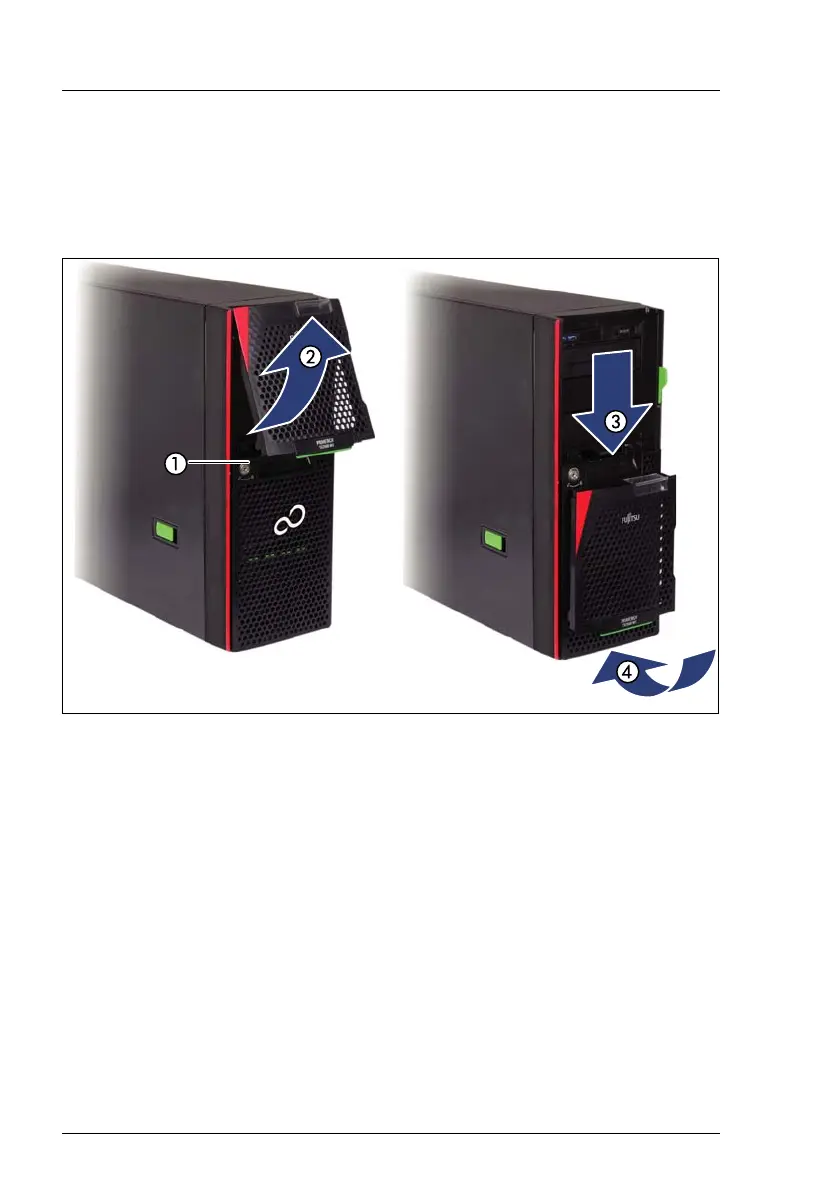

Figure 18: Removing the accessible drive bay cover
Ê Turn the key clockwise (1) to unlock the accessible drive cover and remove
the key.
I Depending on the setting of the green hook in the accessible drive
bay cover, you can open the drive cover without turning the key or
only with turning the key.
Ê Open the accessible drive bay cover carefully in the direction of the arrow
(2) until the cover is released and remove it.
V CAUTION!
Do not pull too hard to avoid damage to the locking mechanism.
Ê Place the accessible drive bay cover on the HDD bay cover (3).
Ê Push the accessible drive bay cover in the direction of the arrow (4).
