TX2550 M5 Operating Manual 81
Operation
I When operating with tape drives:
If the system is programmed to eject the media automatically, the
accessible drives must not be obstructed.
The drive cover is replaced and the server locked in the reverse order.
6.2.2 Removing the HDD bay cover

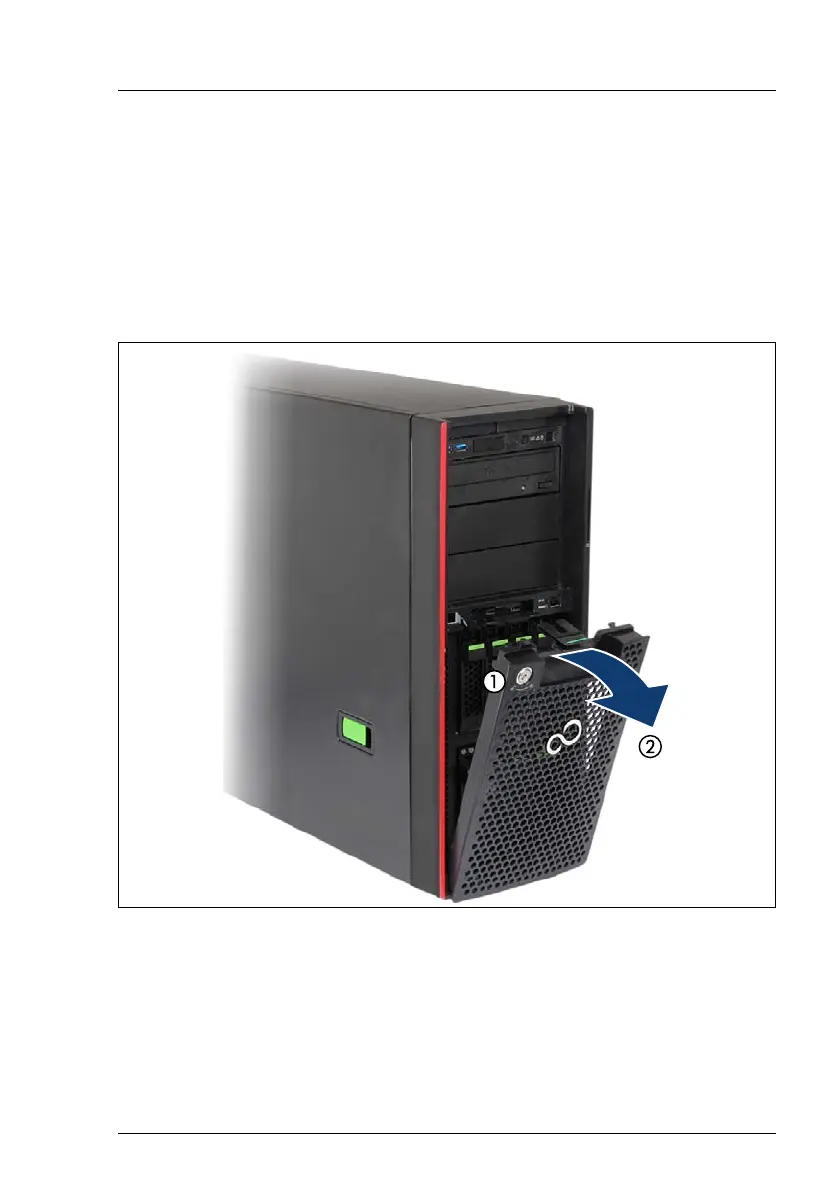

Figure 19: Removing the HDD bay cover
Ê Turn the key counterclockwise (1) to unlock the drive cover and remove the
key.
Ê Open the HDD bay cover in the direction of the arrow and remove it (2).
The HDD bay cover is replaced and the server locked in the reverse order.
