6.3.2 Installing 2.5-inch HDD/SSD modules
6.3.2.1 Removing a 2.5-inch HDD/SSD dummy module

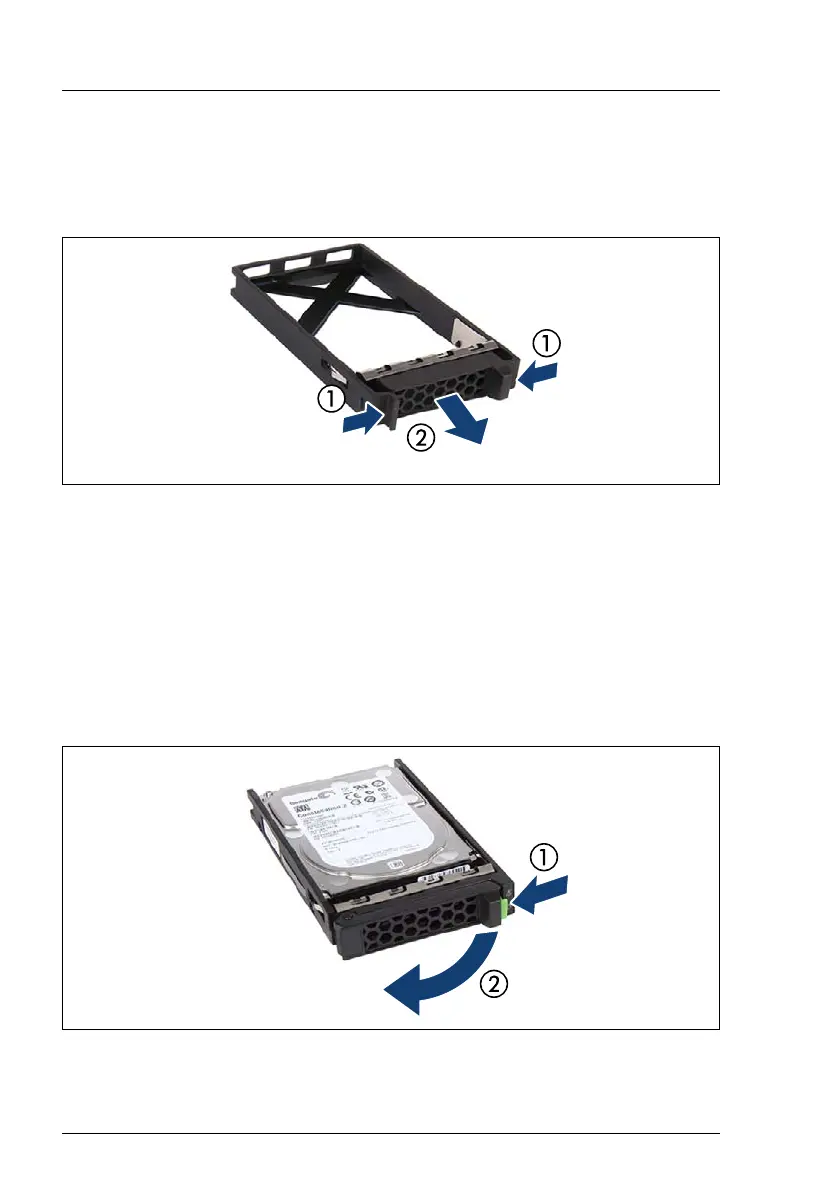

Figure 23: Removing a 2.5-inch HDD/SSD dummy module
Ê Press both tabs together (1) and pull the dummy module out of its bay (2).
V CAUTION!
Keep the dummy module for future use.
Always replace dummy modules into unused HDD/SSD bays to comply
with applicable EMC regulations and satisfy cooling requirements.
6.3.2.2 Installing a 2.5-inch HDD/SSD module
Figure 24: Opening the 2.5-inch HDD/SSD module locking lever
Ê Pinch the green locking clip (1) and open the locking lever (2).
