TX2550 M5 Operating Manual 65

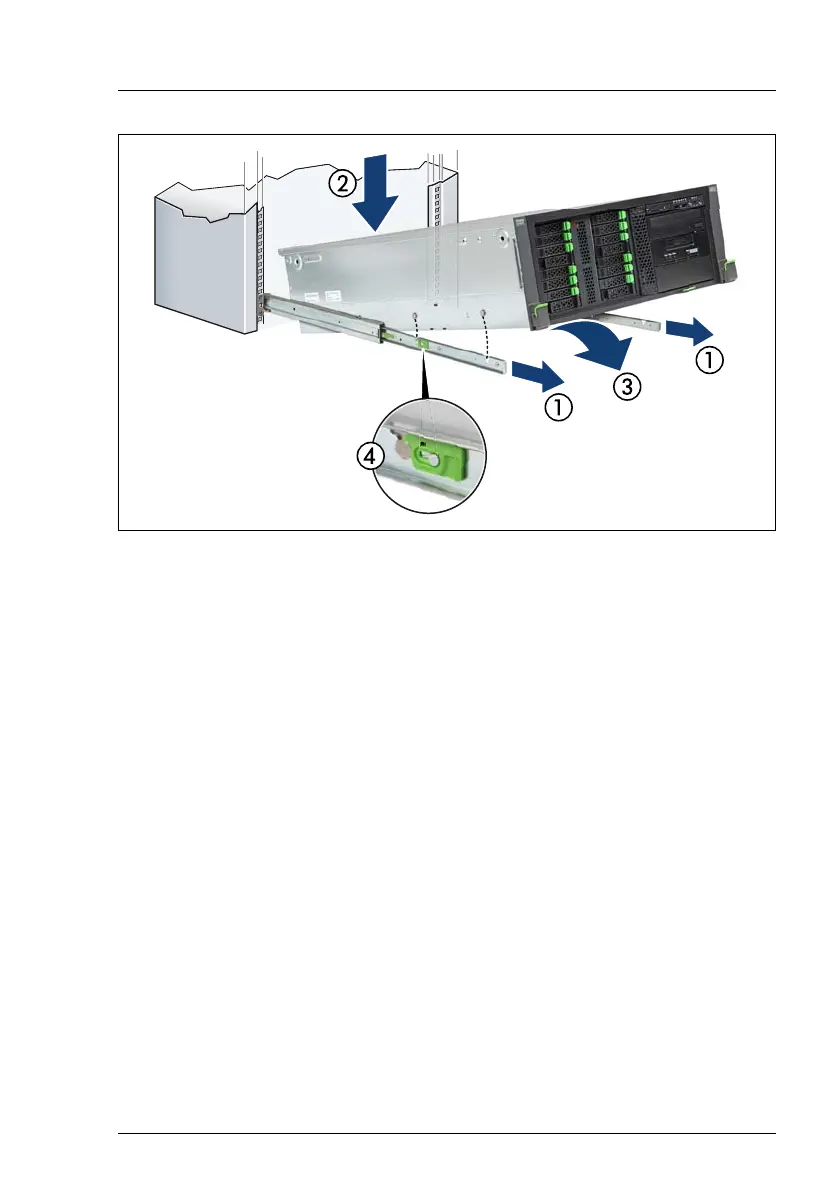

Figure 15: Inserting the server into the rack rails
Ê Fully extend the rack rails until they lock in place (1).
I The rack rails must click into place so that they can no longer be
moved.
Ê At a slight angle, lower the server onto the rear mounting point on the rack
rails (2).
Ê Fold down the server (3). Ensure that all six rack mounting bolts are properly
seated in the mounting points on the rack rails and that the locking bars
engage (4).
