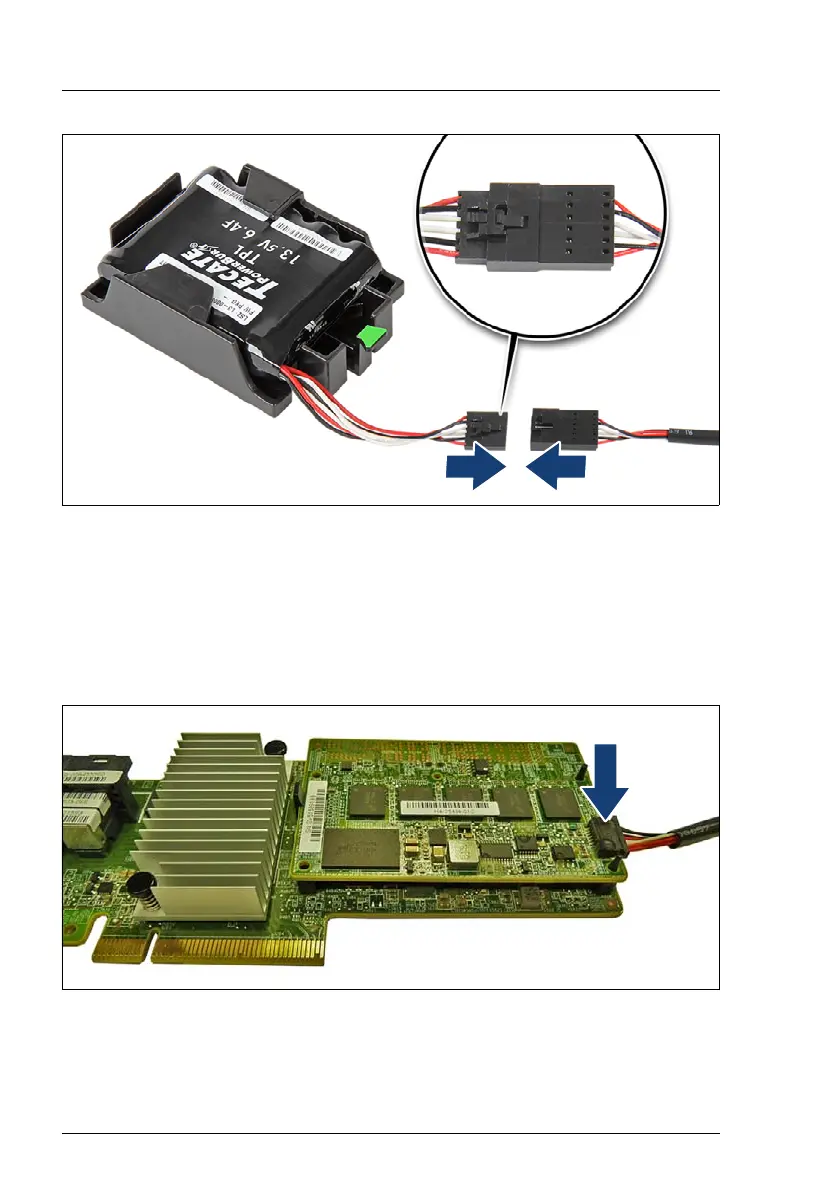

Figure 44: Connecting the FBU adapter cable to the FBU
Ê Connect the cable end of the FBU cable to the FBU adapter cable as shown.
Ê Secure the FBU to the server chassis as described in the server
documentation.
Connecting the FBU adapter cable
Figure 45: Connecting the FBU adapter cable
Ê Connect the loose end of the FBU adapter cable to the TFM on the RAID
controller (see section "Connectors" on page 109).

Fujitsu RAID Ctrl SAS 6G 5/6 512MB Specifications

General

Brand	Fujitsu
Model	RAID Ctrl SAS 6G 5/6 512MB
Category	Controller
Language	English
