Parts and Functions
This section shows the names of the scanner parts.

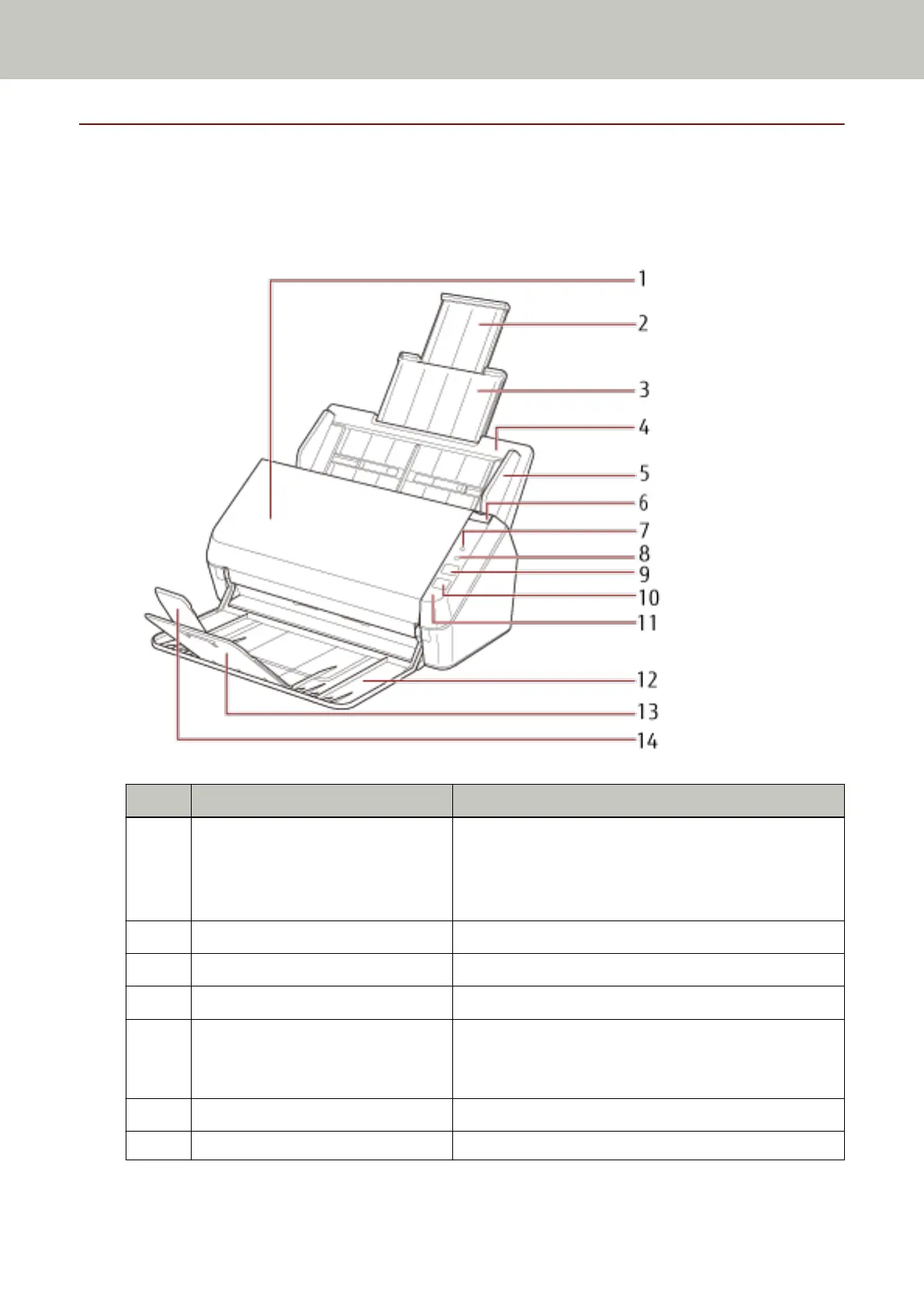

ā Front
No. Name Function
1 ADF (Automatic Document Feeder) Pulls and feeds the documents one sheet at a time from
the ADF paper chute (feeder).
Open this to replace consumables or to clean the inside of
the scanner.
2 Chute extension 2 Pull out to adjust to the document length.
3 Chute extension 1 Pull out to adjust to the document length.
4 ADF paper chute (feeder) Holds the documents to be scanned.
5 Side guide Positions the documents in place when the documents are
loaded in the ADF paper chute (feeder) as they are fed into
the scanner.
6 ADF release tab Pull this tab to open the ADF.
7 Check Indicator Lights, flashes in orange, or turns off when an error occurs.
