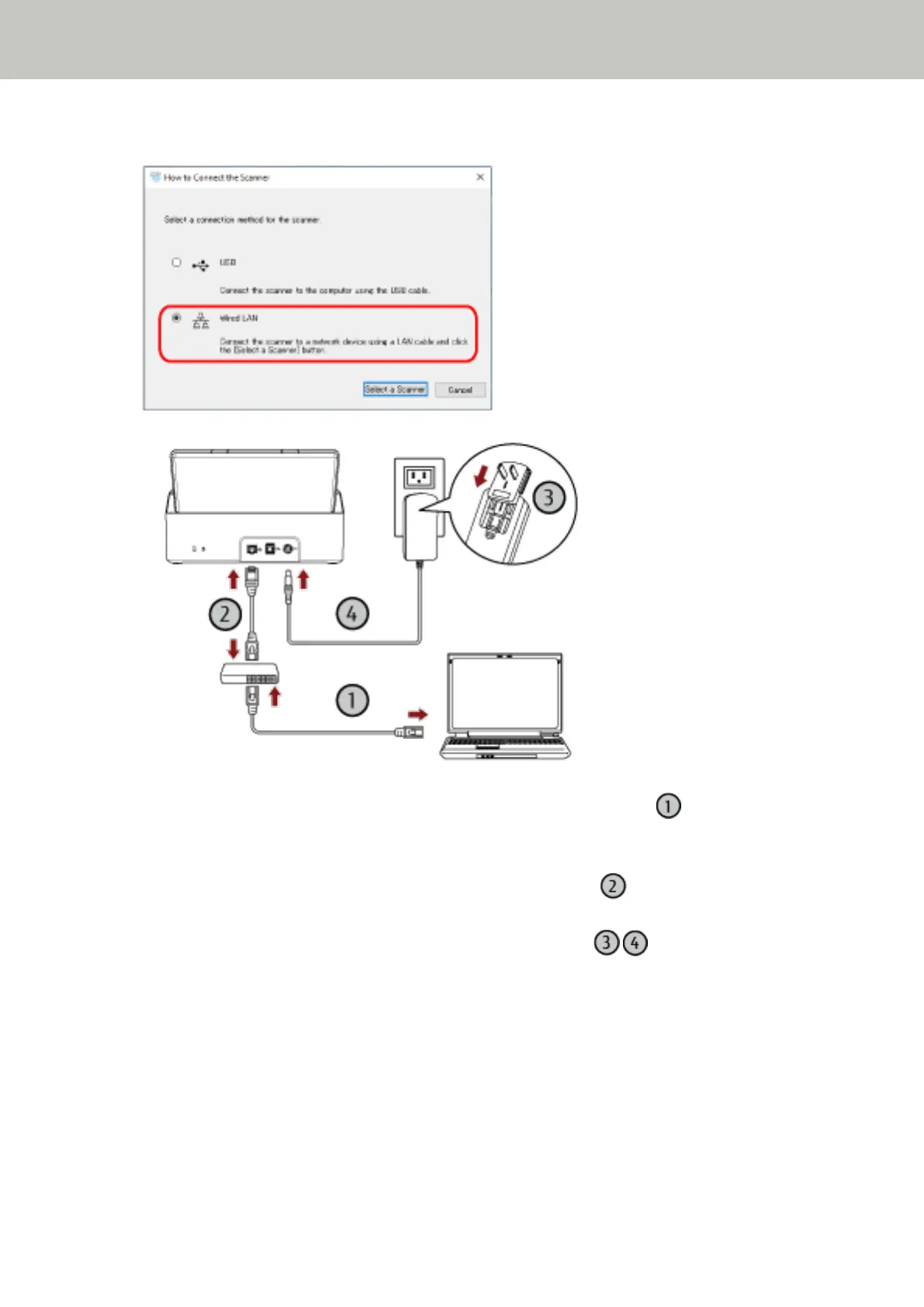

7 Select [Wired LAN] and connect the scanner to the computer as follows.
a Connect the computer to a network device via a wired LAN or Wi-Fi ( ).
For details about how to connect the computer to the network, refer to the computer manual.
b Connect the scanner to the network device via a wired LAN ( ).
c Connect the power cable to the scanner and the AC outlet ( , ).
d Turn on the scanner.
For details, refer to How to Turn the Power ON (page 31).
8 Click the [Select a Scanner] button in the [How to Connect the Scanner] window.
The [Scanner Selection Tool] window appears.
9 Click the [Set an IP Address] button.
A message appears, prompting you to connect the scanner to the computer via the USB cable.
Scanner Setup
26

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Fujitsu SP-1130N and is the answer not in the manual?

Fujitsu SP-1130N Specifications

General IconGeneral
Scanning TechnologyCIS (Contact Image Sensor)
Optical Resolution600 dpi
Maximum Document SizeA4
InterfaceUSB 3.2 Gen1x1, Ethernet
ADF Capacity50 sheets
Duplex ScanningYes
Color Depth24-bit
Weight2.7 kg
Scanning Speed (Duplex)60 ipm
Supported OSWindows, macOS, Linux
Dimensions298 x 135 x 133 mm
Scanning MethodADF (Automatic Document Feeder)
Dimensions (W x D x H)298 mm x 135 mm x 133 mm
Scan Speed (A4, 300 dpi)Simplex: 30 ppm (Color), 30 ppm (Monochrome)
