ATTENTION
Confirm that the brake roller is installed properly. Otherwise, paper jams or other feeding errors may occur.
7

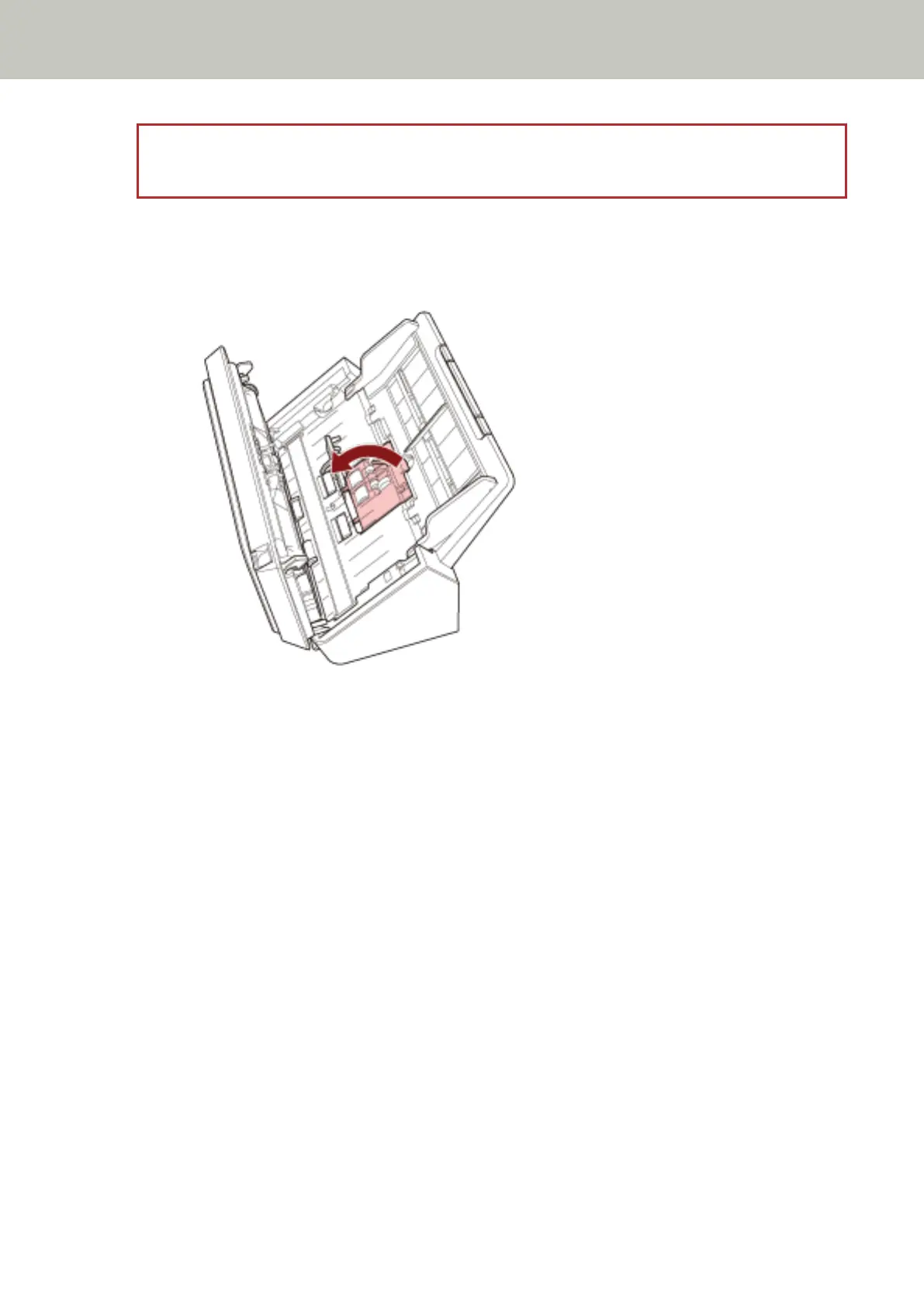

Remove the pick roller.
a
Open the side guides fully to both sides. Then place your finger into the depression and open
the sheet guide in the direction of the arrow.
Replacing the Consumables
83
82
84
Table of Contents
Default Chapter
2
Table of Contents
2
Introduction
6
About this Product
6
Manuals
6
Trademarks
8
Manufacturer
8
Safety Information
8
Symbols Used in this Manual
9
Abbreviations Used in this Manual
10
Arrow Symbols in this Manual
12
Screen Examples in this Manual
12
Notice
12
Scanner Overview
13
Main Features
13
Parts and Functions
14
About the Indicators
17
Scanner Setup
18
Overview of the Bundled Software
18
System Requirements
21
Connecting the Scanner Via a Wired LAN (When Obtaining an IP Address Automatically)
22
Connecting the Scanner Via a Wired LAN (When Assigning an IP Address Manually)
25
Connecting the Scanner to the Computer Via the USB Cable
29
Basic Operations
31
Turning the Power ON/OFF
31
How to Turn the Power on
31
How to Turn the Power off
31
Entering and Resuming from Power Saving Mode
32
Setting up the ADF Paper Chute (Feeder)
33
Opening/Closing the ADF
34
How to Open the ADF
34
How to Close the ADF
35
Setting up the Stacker
36
How to Perform a Basic Scan
39
Performing a Scan with an Image Scanning Application
39
Pressing a Button on the Scanner in Order to Start an Image Scanning Application and Perform a Scan
42
Button Settings (for USB Connection)
45
How to Load Documents
47
Loading Documents
47
Preparation
47
How to Load Documents
49
Documents for Scanning
52
Paper Size
52
Document Type
52
Paper Weight (Document Thickness)
52
Documents that May Not be Scanned Successfully
52
Documents that Must Not be Scanned
53
Precautions
54
Loading Capacity
56
Area Not to be Perforated
57
Conditions Required to Accurately Detect Overlapped Documents (Multifeed)
58
Conditions for Mixed Batch Scanning
59
Conditions for Automatic Page Size Detection
61
Various Ways to Scan
62
Scanning Documents with Different Widths
62
Scanning Long Page Documents
65
Daily Care
66
Cleaning Materials
66
Location and Frequency
68
Cleaning the Outside of the Scanner
69
Cleaning the Inside of the Scanner (ADF) with Cleaning Paper
70
Cleaning the Inside of the Scanner (ADF) with a Cloth
72
Replacing the Consumables
77
Consumables and Replacement Cycles
77
Replacing the Roller Set
79
Troubleshooting
87
When a Paper Jam Occurs
87
Errors
89
Paper Jam
91
Multifeed
92
Cover Open
92
Sensor Error
93
Optical Error (ADF Front)
93
Optical Error (ADF Back)
93
Being Used by Others
94
No Document Has Been Loaded
94
Scanning Has Been Stopped by the User
94
Troubleshooting
95
The Scanner Cannot be Powered on
96
Cannot Connect the Scanner and a Computer with the Network
97
Cannot Connect the Scanner and a Computer Via the USB Cable
102
Scanning Does Not Start
103
Scanning Takes a Long Time
104
The Scanned Image of a Picture or Photo Is Rough/Image Noise Appears
105
Quality of Scanned Text or Lines Is Unsatisfactory
106
Images Are Distorted or Not Clear
107
Vertical Streaks Appear on the Images
108
Overlapped Documents Are Frequently Fed into the Scanner
109
Situation in Which the Document Is Not Fed into the ADF Occurs Frequently
111
Paper Jams/Pick Errors Occur Frequently
112
Images Turn out Elongated
114
A Shadow Appears at the Top or the Bottom of the Image
115
There Are Black Traces on the Document
116
Before You Contact the Scanner Service Provider
117
Actions to Take before You Contact the Scanner Service Provider
117
Items to Check before You Contact the Scanner Service Provider
117
Checking the Product Label
119
Scanner Settings (Software Operation Panel)
120
Starting up the Software Operation Panel
120
Setting the Software Operation Panel to [View Only Mode]
122
Setting [View Only Mode]
123
Exiting [View Only Mode]
125
Setting a Password
127
Changing the Password
128
Clearing the Password
130
Resetting the Password
132
Setting Item
134
Device Setting
134
Settings Related to Sheet Counters
135
Checking the Sheet Counters
135
Clearing the Sheet Counters
137
Message for Replacing Consumables
138
Settings Related to Waiting Time
139
Waiting Time for the Scanner to Enter Power Saving Mode [Power Saving]
139
Appendix
141
Basic Specification
141
Installation Specification
143
Outer Dimensions
144
Uninstalling the Software
145
Customer Support
147
Troubleshooting
147
Contact for Inquiries
147
Contact for Purchasing Consumables or Cleaning Materials
147
