Remove the 2 mounting screws.
Remove the Wires.
06-05
Screws

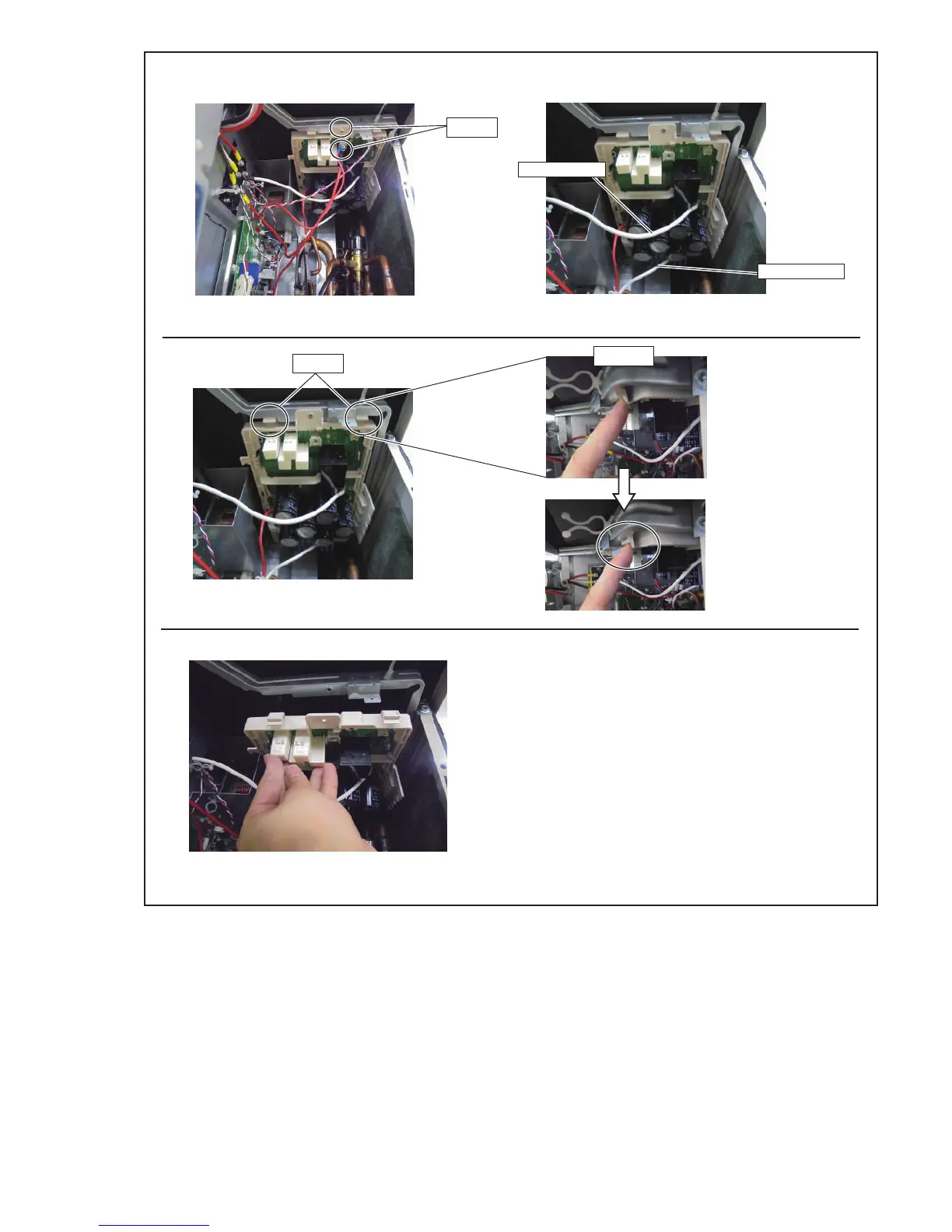

5-4. POWER PCB removal I
To DIODE BRIDGE
To INVERTER PCB
Remove the 2 Hooks.
Hooks
Remove the POWER PCB.
Side view
