Remove the 2 mounting screws
06-06

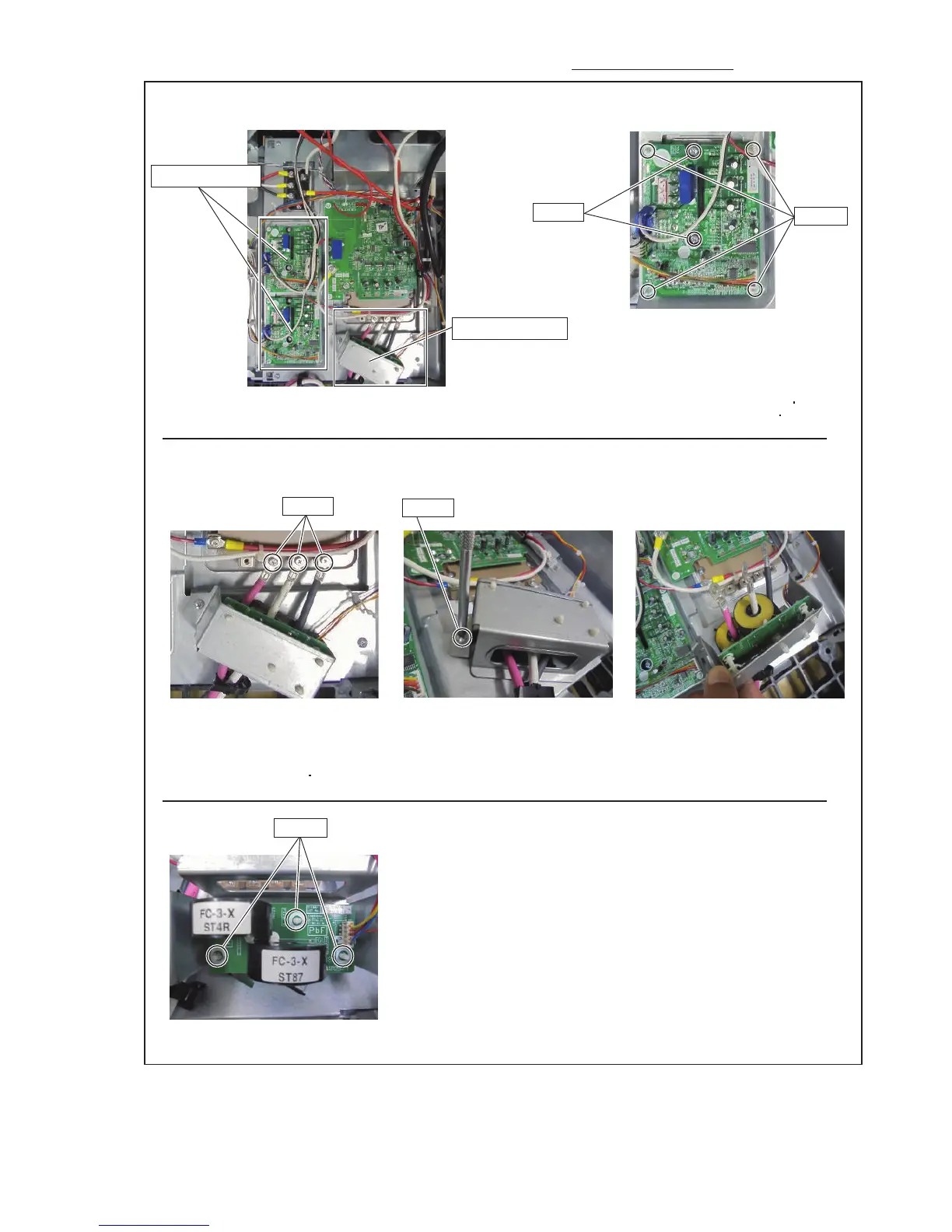

6. FAN DRIVER PCB and INVERTER CT PCB removal ( For AJY108LELAH )
FAN DRIVER PCB
INVERTER CT PCB
6-1. FAN DRIVER PCB removal
6-2. INVERTER CT PCB removal
Spacers
Screws
and spacers. (5 places)
Note the tightening torque at the installation.
Tightening torque is as follows.
- Temporary tightening : 0.2 to 0.4 N m
- Final tightening : 0.98 to 1.47 N m
Remove the 3 mounting screws.
Screws
Remove the mounting screw.
Screws
Remove the 3 spacers and connector.
Spacers
Note the tightening torque at the installation.
Tightening torque is as follows.
- Final tightening : 1.4 to 1.6 N m
To Next Page
