12 EN

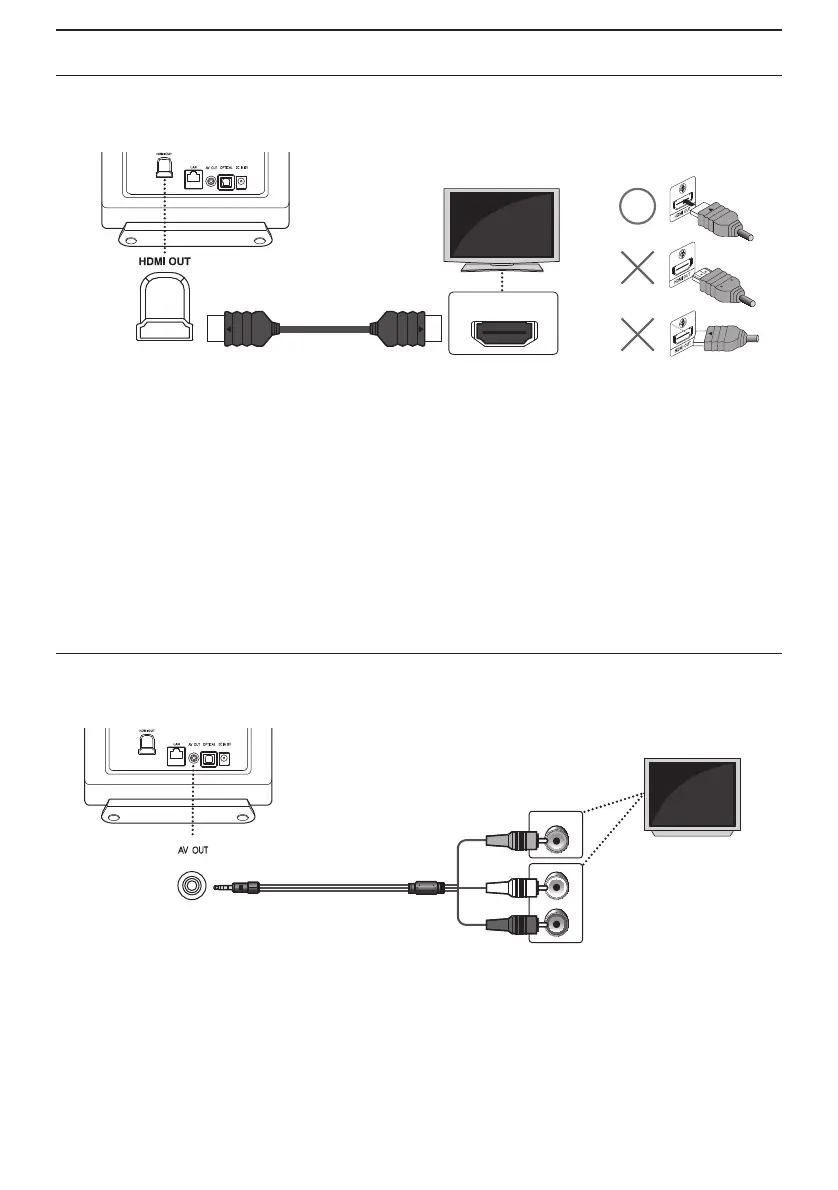

3. CONNECTIONS
3.1 HDMI Video / Audio Connection
(Supports up to 1080i*
1
, 1080p*
2
, 1080p/24*
3
resolution.)
No analogue audio connection required.
*
1
1080i: Outputs video data with a frame rate of 25/30 frames per second.
*
2
1080p: Outputs video data with a frame rate of 50/60 frames per second.
*
3
1080p/24: Outputs video data with a frame rate of 24 frames per second.
• Do not tilt the connector when inserting it into the HDMI jack, and make sure the shapes of the
jack and the connector are matched.
• When connected to an HDCP incompatible display device, the picture will not be displayed
properly.
• Use an HDMI cable with the HDMI logo (a certified HDMI cable) for this connection.
• High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for better
compatibility.
• To enjoy Blu-ray 3D™ video, connect this unit to a 3D capable TV using a 3D compatible HDMI
cable.
3.2 Standard Video + Standard Audio Connection
(Supports only 480i/576i resolution.)
• Connect this unit directly to the TV. If the audio / video cables are connected to a VCR, then the
pictures may be distorted due to the copyright protection system.
HDMI IN
Yo u r T V
HDMI cable (not supplied)
R
L
AUDIO IN
VIDEO IN
Yo u r T V
AV cable (supplied)
To Next Page
