17EN

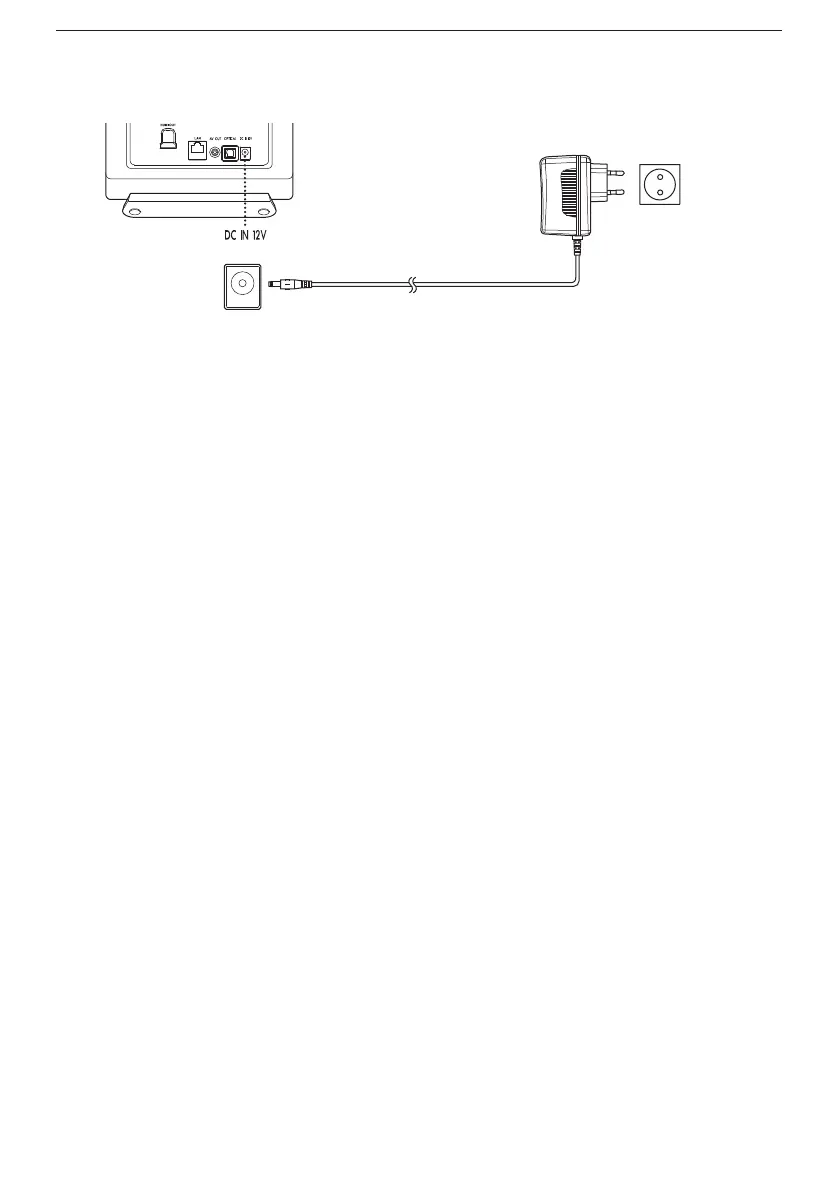

3.5 Connecting the AC Adapter
• After you made all necessary connections, connect the AC adapter to the DC IN 12V jack.
Then connect the AC adapter to the AC outlet.
AC adapter (supplied)
AC outlet
