Multiple loudspeaker systems

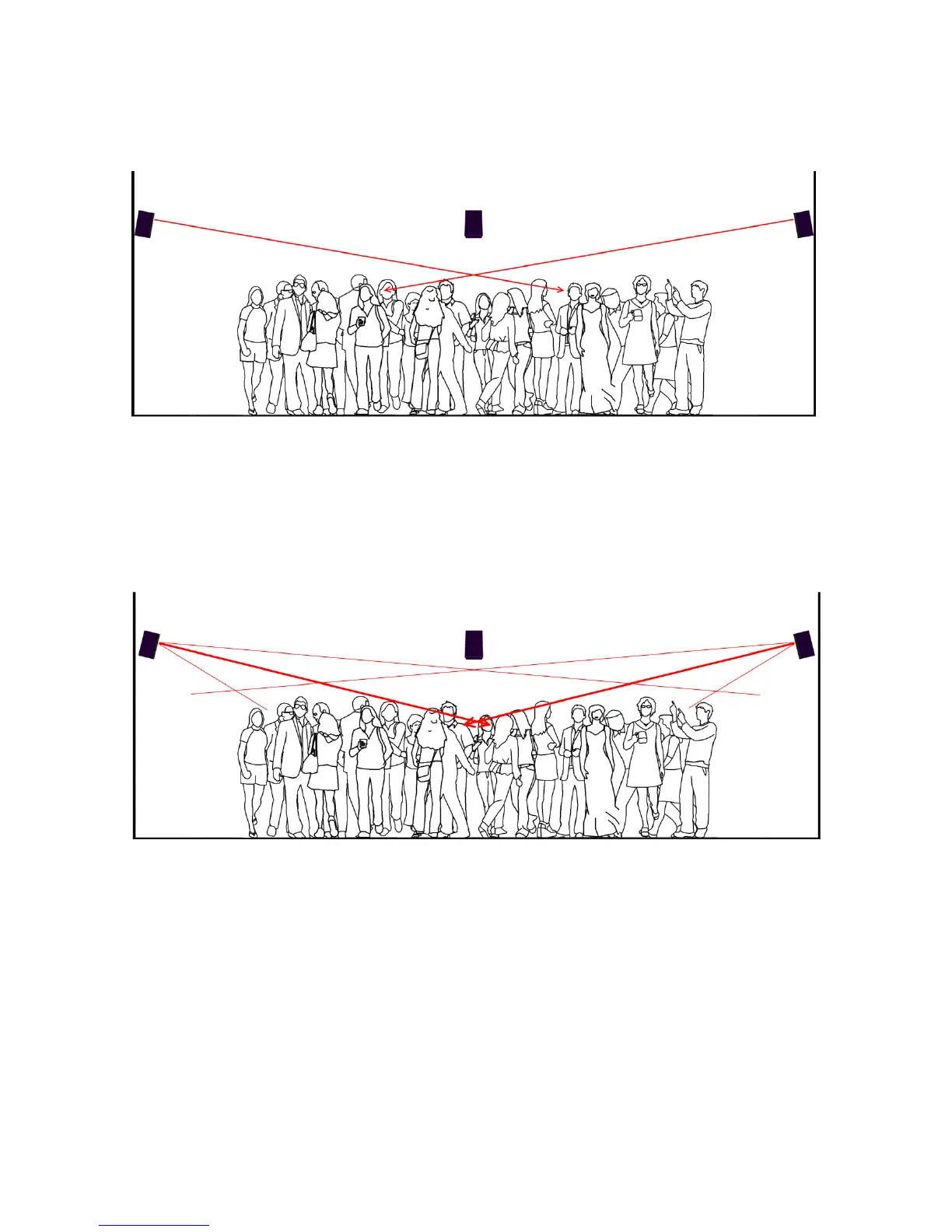

Fig 6.2-3 Aiming multiple F81s for concentrated coverage
Multiple F81s may be used to concentrate coverage into a specific area. This will provide audience
members with a pleasant, enveloping experience.
Minimising difficult room effects
Fig 6.2-4 Raising and tilting F81s for more concentrated central coverage in difficult acoustics
Difficult room effects can be minimised by aiming your F81s towards head height at the centre of the
audience area. This ensures that coverage is concentrated onto the main audience area and away from
the walls.
The strong central summation combined with the smooth off-axis performance around the edges will
provide even coverage with minimal overspill.
