9.4 XO series loudspeaker management patches

Where F81s are likely to be used with a wide variety of source material, including live performances and

DJs, a high quality system controller is recommended. Funktion One XO2, XO4 or XO4A loudspeaker

management systems provide all the necessary cross-over functions plus, of course, protective limiting.

2-channel patches with XO2 loudspeaker management system

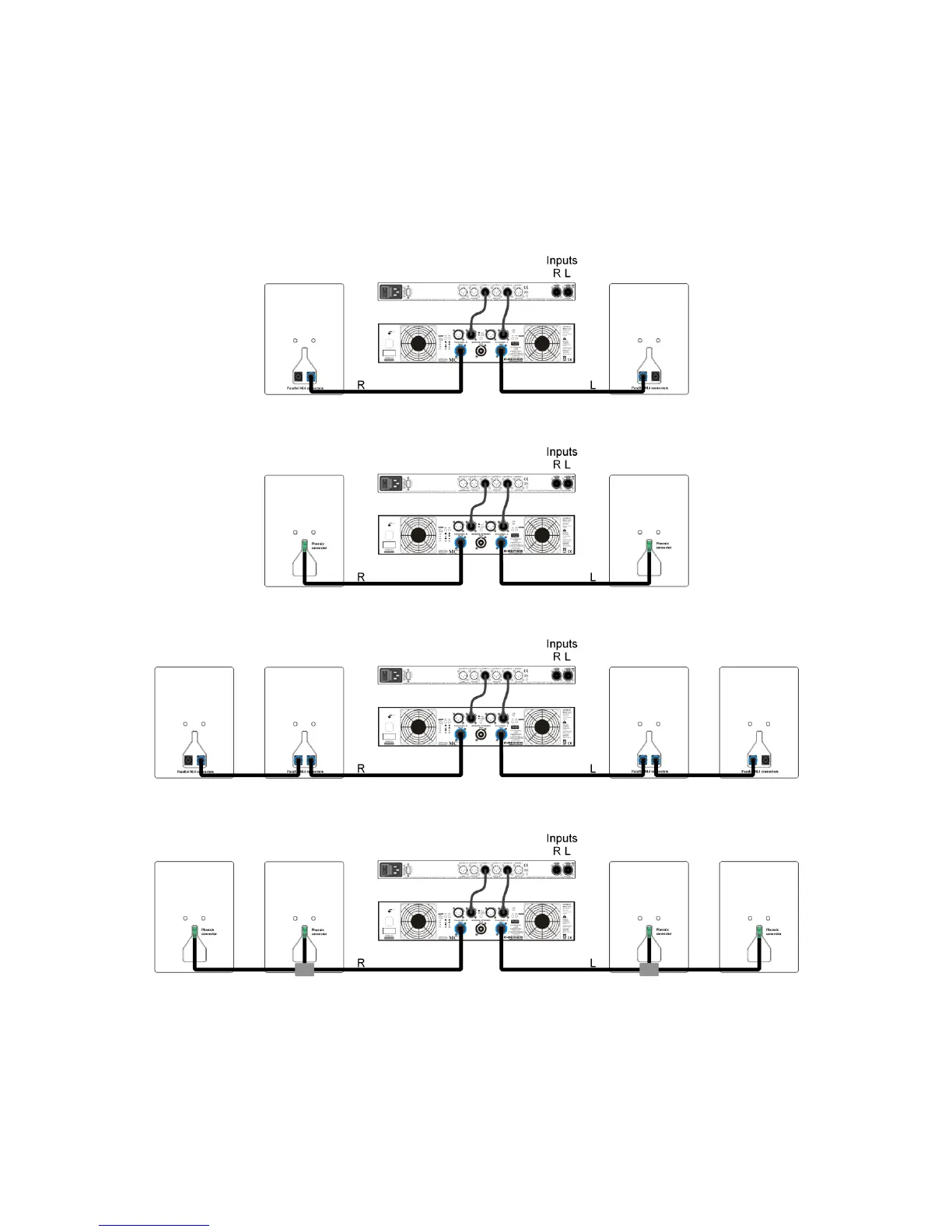

Fig 9.4-1 2-channel 8 ohm patch using Funktion One XO2 controller and E15 amp

(2 x 2-way + 2 x mono configuration shown, F81s with Speakon connectors)

Fig 9.4-2 2-channel 8 ohm patch using Funktion One XO2 controller and E15 amp

(2 x 2-way + 2 x mono configuration shown, F81s with Phoenix connectors)

Fig 9.4-3 2-channel 4 ohm patch using Funktion One XO2 controller and E15 amp

(2 x 2-way + 2 x mono configuration shown, F81s with Speakon connectors)

Fig 9.4-4 2-channel 4 ohm patch using Funktion One XO2 controller and E15 amp

(2 x 2-way + 2 x mono configuration shown, F81s with Phoenix connectors)

Note the connector blocks in lower illustration. Avoid cramming two cables into one Phoenix connector.
