Notes
XO series outputs channel allocations will vary depending on loudspeaker/bass system combinations –
see XO series user manuals for typical configurations.
See Section 11 of this User Guide for advice on XO series limiter settings vs amplifier gain etc.
See Appendix A at the end of this User Guide for a discussion about clipping.
See Appendix B at the end of this User Guide for a discussion about system gain structure.

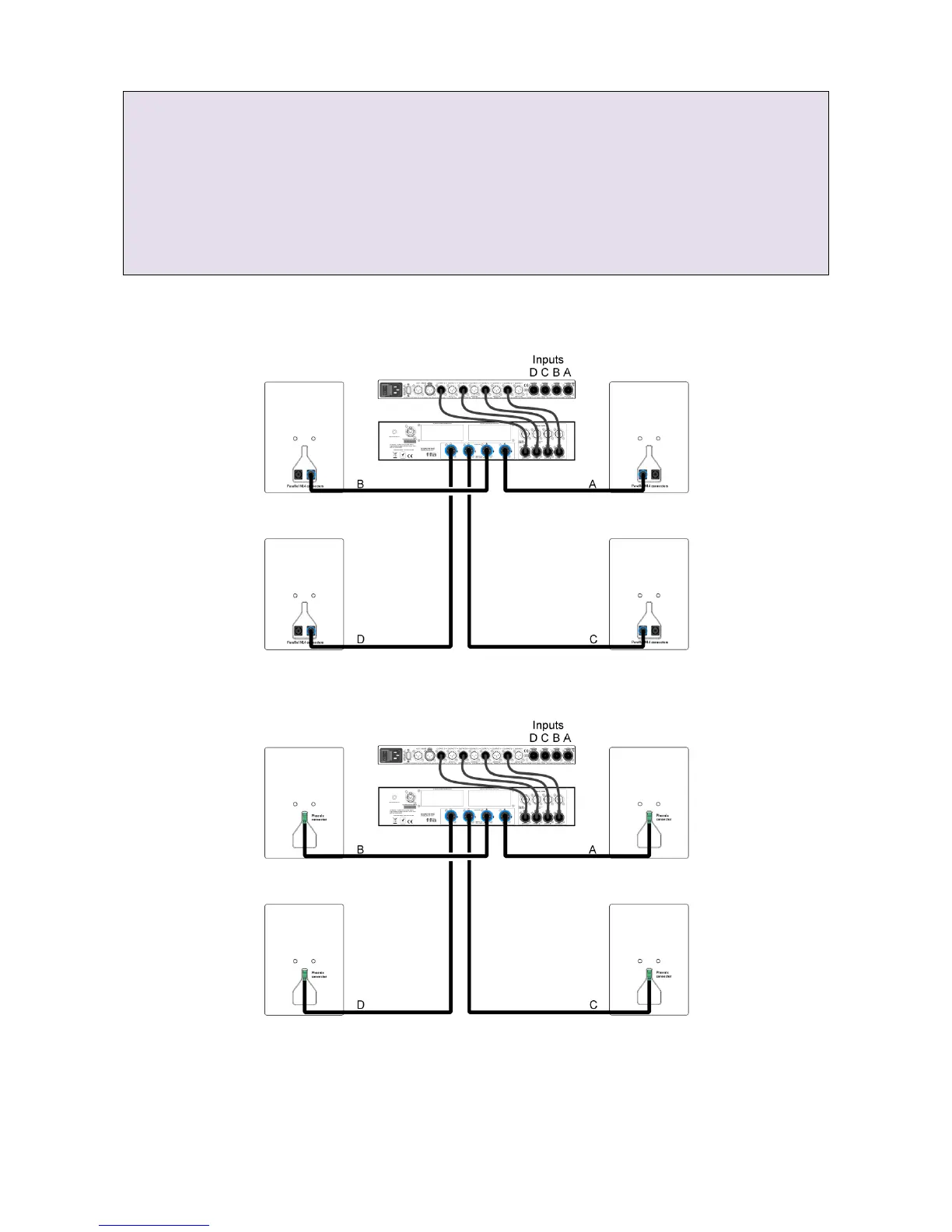

4-channel 8 ohm patches with XO4/4A loudspeaker management system
Fig 9.4-5 4-channel 8 ohm patch using Funktion One XO4A controller and F40Q amp
(4 x 2-way configuration shown, F81s with Speakon connectors)
Fig 9.4-6 4-channel 8 ohm patch using Funktion One XO4A controller and F40Q amp
(4 x 2-way configuration shown, F81s with Phoenix connectors)
