6.3 Wall mounting and yoke accessories
Wall mounting bracket

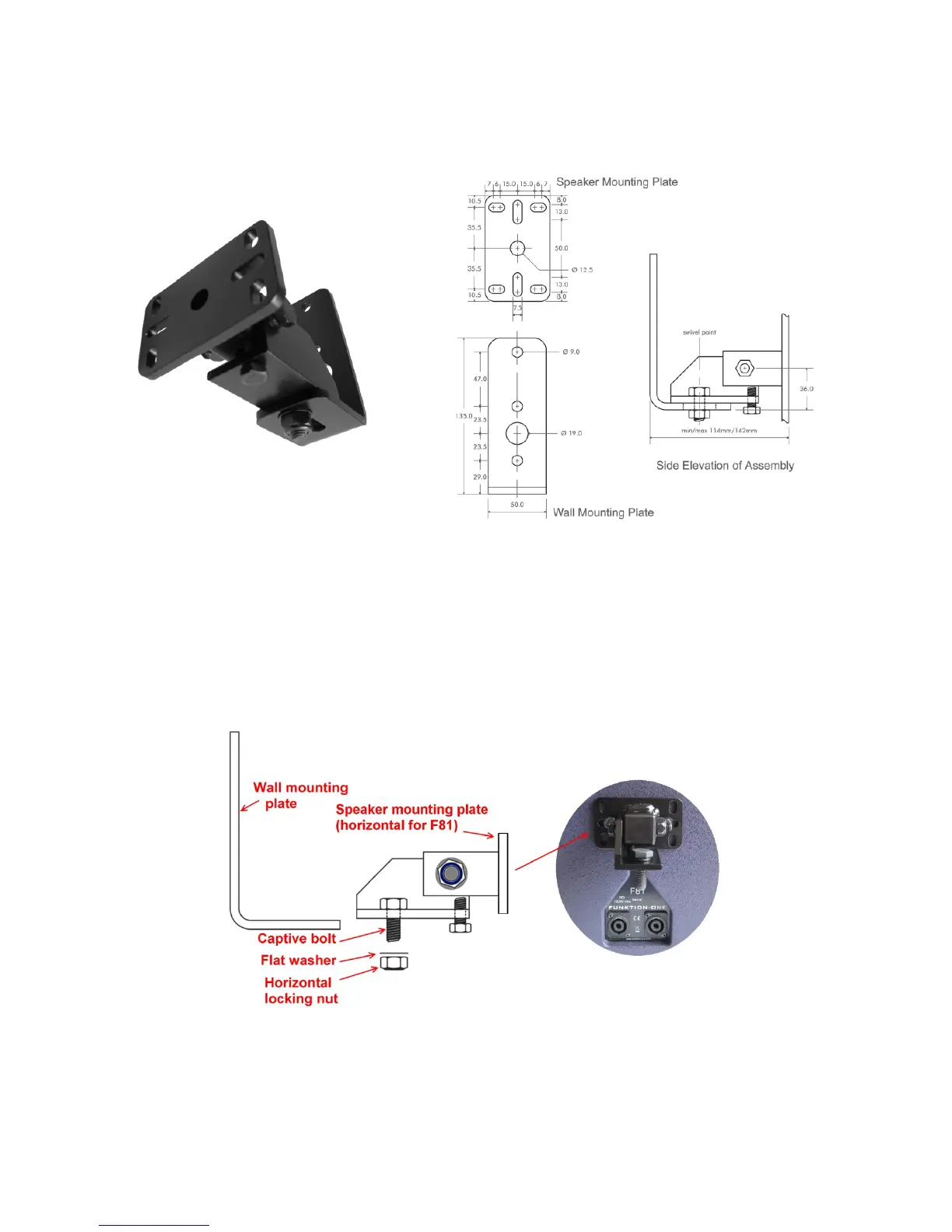

Fig 6.3-1 WMS-50 F55/F81 wall mounting bracket (all dimensions in mm)
The optional WMS-50 wall mounting bracket allows your F81 to be mounted on a wall and aimed
accurately.
The photograph shows speaker mounting plate horizontal for normal F81 orientation.
1
st
and 2
nd
fit
The wall mounting plate may be removed and sent to site for pre-installation if required.
Fig 6.3-2 Wall mounting plate removed for fitting on site Speaker mounting plate fitted to F81
