9.3 Simple system patches with external control

F81s may be used without loudspeaker management systems in set-ups where signal levels are carefully

controlled – e.g. in installations where limiters are built into the zone controllers.

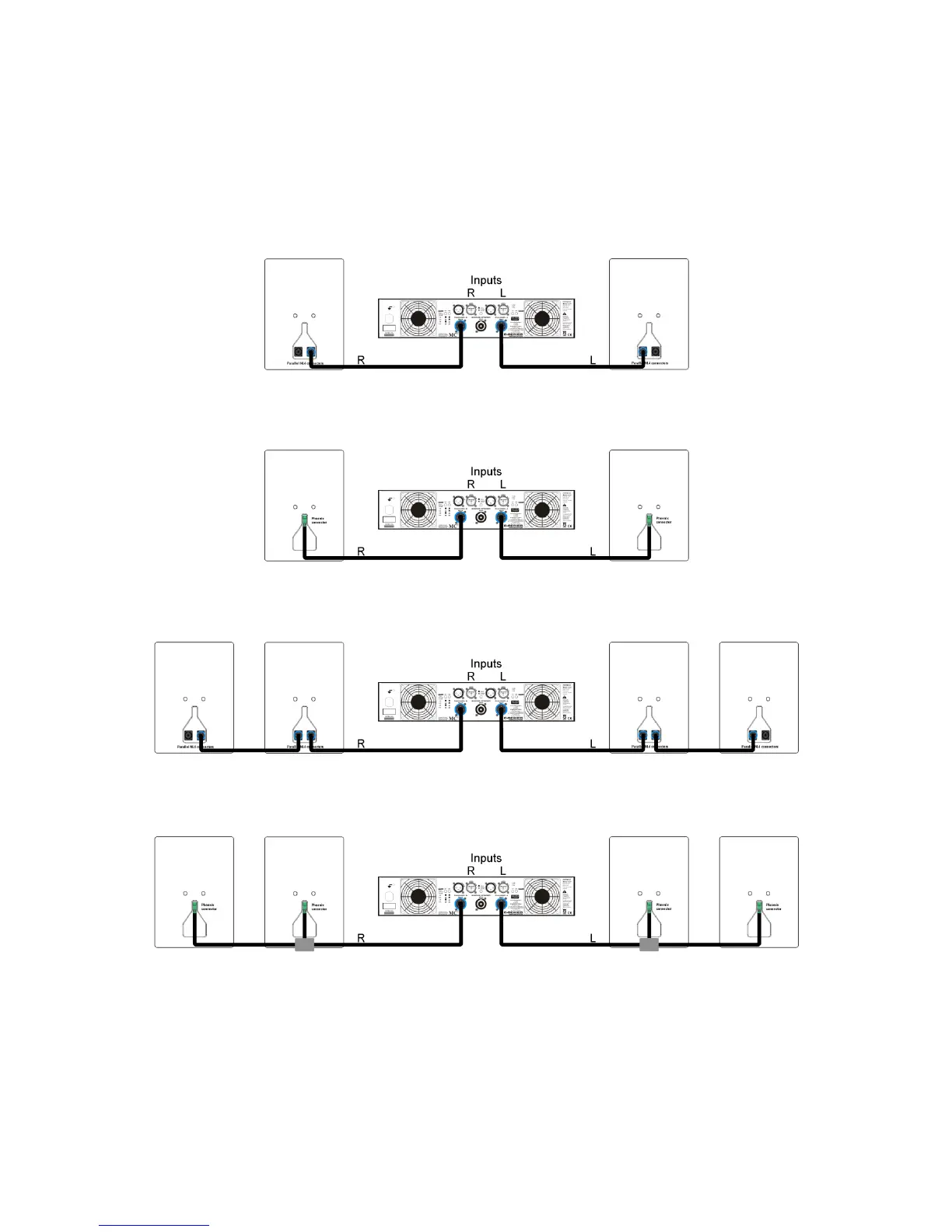

2-channel patches with external control

Fig 9.3-1 2-channel 8 ohm patch using Funktion One E15 power amplifier

(F81s with Speakon connectors)

Fig 9.3-2 2-channel 8 ohm patch using Funktion One E15 power amplifier

(F81s with Phoenix connectors)

Fig 9.3-3 2-channel 4 ohm patch using Funktion One E15 power amplifier

(F81s with Speakon connectors)

Fig 9.3-4 2-channel 4 ohm patch using Funktion One E15 power amplifier

(F81s with Phoenix connectors)

Note the connector blocks in lower illustration. Avoid cramming two cables into one Phoenix connector.
