16
Always discuss your required wall mounting plate positions, the weight of your loudspeaker
and wall anchorage methods with an expert builder or the architect to make sure you comply with the
relevant building and safety regulations

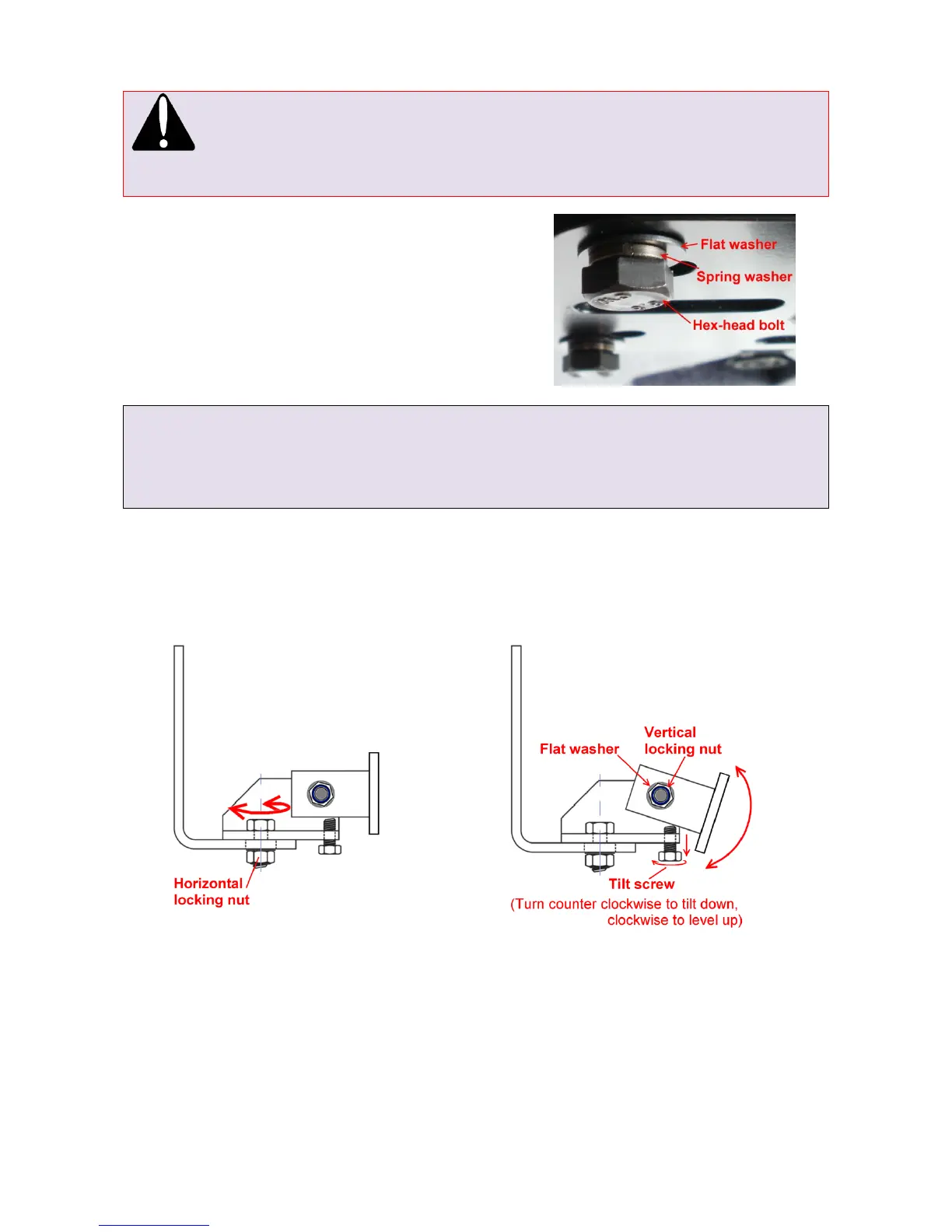

The speaker mounting plate is attached to your F81 with the
M8 hex-head bolts, flat washers and spring washers provided.
The hex-head bolts, flat washers and spring washers replace
the countersunk blanking bolts at the rear of your F81. The
countersunk bolts should be retained for future use.
Tighten the hex-head bolts so that the spring-washers are
fully compressed – (example on right)
Remember to replace the rear bolts
Do not run the system with its rear bolts missing as this will detune the cabinet and cause air-flow noise.
If you remove the wall bracket, always refit the original countersunk blanking bolts.
Reassemble the wall bracket system on site using the flat washer and the horizontal locking nut supplied
before make final swivel and tilt adjustments.
Swivel & tilt
Fig 6.3-4 Horizontal swivel Fig 6.3-5 Vertical tilt
Horizontal swivel
Loosen the horizontal locking nut to swivel the main assembly to the required position.
Retighten the horizontal locking nut once you’re happy with the position.
www.funktion-one.com © Funktion One Research Limited 2011
