Vertical tilt

Loosen the vertical locking nut to allow the loudspeaker plate to be tilted to the required position using

the tilt screw (Fig 6.3-5 on previous page).

If the loudspeaker is already attached to the speaker mounting plate, this is much easier to do if you get

a helper to lift the loudspeaker gently whilst you make the adjustment.

Retighten the vertical locking nut once you are happy with the vertical positioning. Then give the tilt

screw a final tweak just to make sure it’s still tight.

Yoke kit

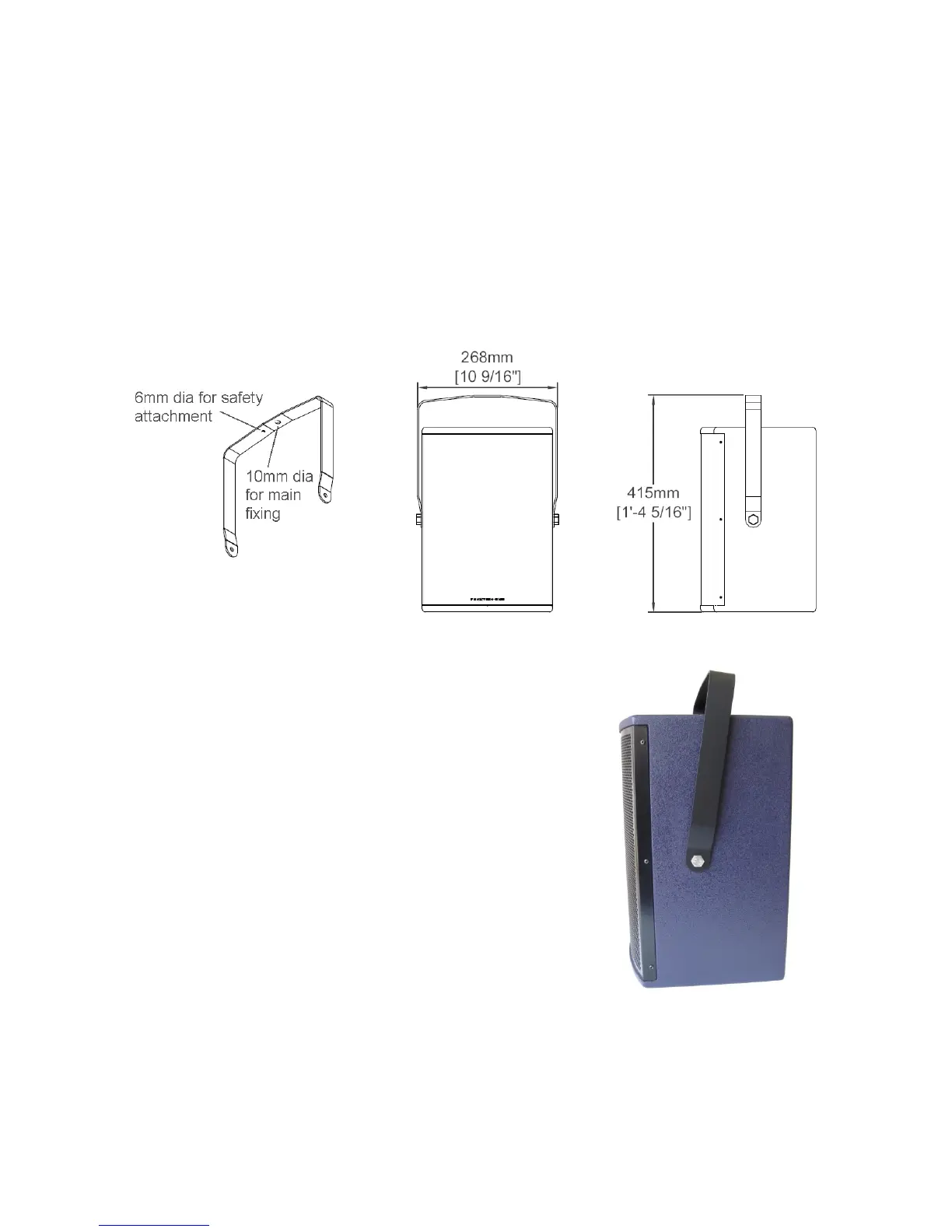

Fig 6.3-7 YF81-K1 yoke kit (all dimensions in millimetres and feet & inches)

The optional YF81-K1 yoke kit allows you to fly your F81

from a truss or 51mm barrel via a standard half-coupler

using the 10mm main fixing hole.

The yoke also has a 6mm safety wire attachment hole.

The F81 has integral M6 side bushes so that the yoke may

be fitted using M6 hex-head bolts and flat washers for fixed

installations.

M6 hand-wheels are available for easy tilt adjustment during

temporary set-ups.

F81 with yoke

(M6 hand-wheel shown)
