6.6 Connecting the components to the electronics box
The individual components are connected to the electronics box as follows :
[1] Plug the microphone jack into the jack socket with the microphone symbol
[2] The electronic box line-in can be used to connect an optional MP3 player with line-out. To do so, a connection
cable 0.14 in stereo jack plug to 0.14 in stereo jack plug (l = 4.92 ft) is required.
IMPORTANT: Only connect the device (MP3 player, iPod™, etc.) to the electronics box line-in with a jack cable when it
is being powered by battery alone (without the recharger), as interfering impulses may otherwise cause damage to the
electronic box line-in.

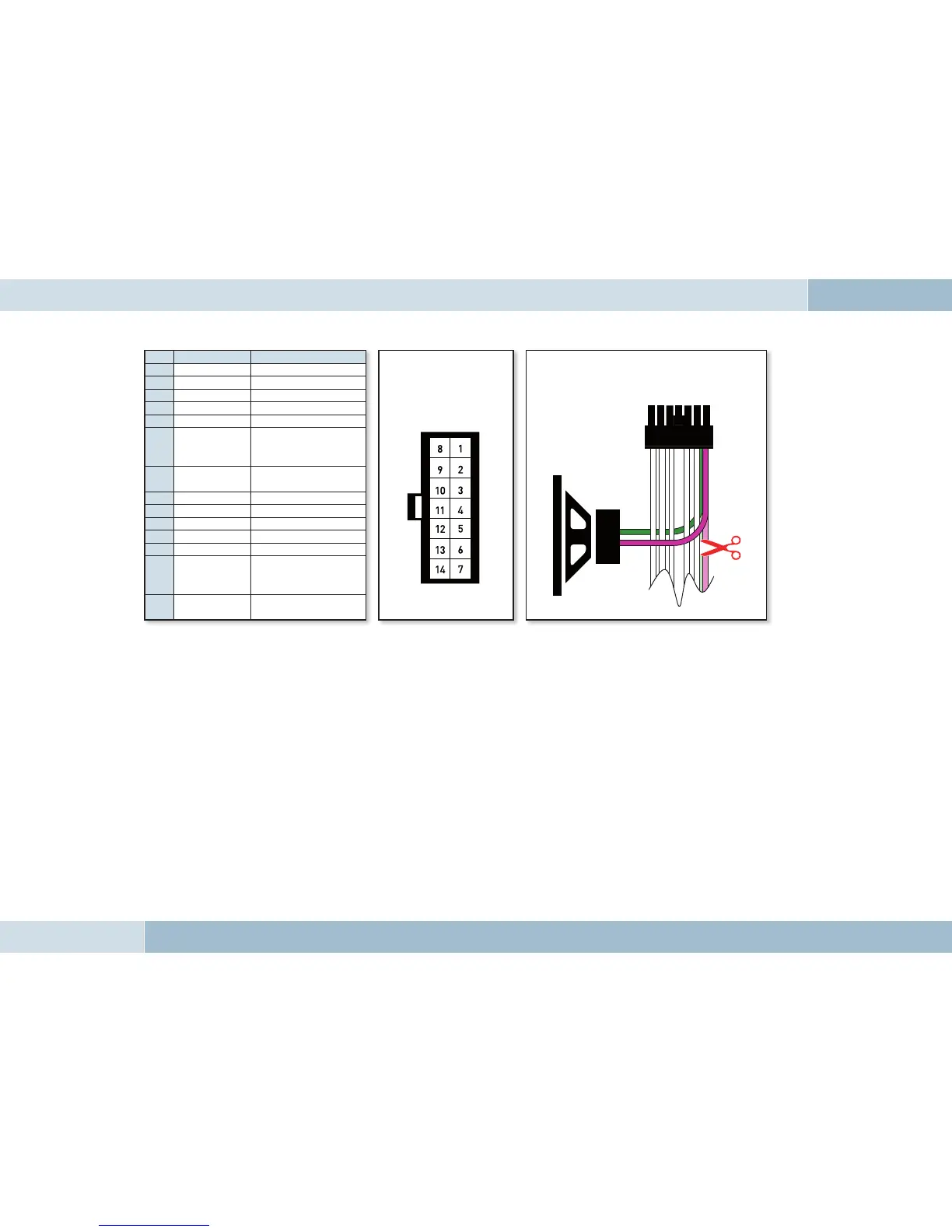

Fig. 12:
Additional external
loudspeakers
Pin Colour Function
View of the plug side,
from which the wiring is
fed in the plug housing
(with pin allocation)
Connection option for additional speakers on pin 7
(purple lead) and pin 14 (green lead) of the 14-pin plug
1 Brown Ground (31)
2 Yellow Radio mute
3
4
5
6 White
Car audio speaker
output +
(front right)
7 Purple
Speaker lead +
(front right)
8 Red Permanent positive (30)
9 Blue Ignition (15)
10
11
12
13 Black
Car audio speaker
output -
(front right)
14 Green
Speaker lead -
(front right)
