Furrion FURRIONNET-ZERO FSCC60PWM-BL User Manual

7
Installation
English
What’s in the Box
Locate all of the following items that are
included with the MPPT Charge Controller. If
any item is damaged or missing, contact your
dealer.
− MPPT Solar charge controller x 1
− Instruction Manual x 1
− Warranty Card x 1
− Solar Charge Controller Mounting
Bracket x 1 *
− Flat head screw (ST4.2*19mm) x 4 *
* FSCC30PW-BL: 25A solar charge controller
without mounting bracket
FSCC60PW-BL: 50A solar charge controller
without mounting bracket
FSCC30PWB-BL: 25A solar charge
controller with mounting bracket
FSCC60PWB-BL: 50A solar charge
controller with mounting bracket
FSCC60PWM-BL: solar charge controller
mounting bracket.
CAUTION
The controller requires at least 6" of
clearance above and below for proper air
flow. Ventilation is highly recommended if
mounted in an enclosure.
WARNING:
Risk of explosion!
Do not install in a confined area where
battery gas can accumulate.
WARNING:
Risk of electric shock! Exercise caution
when handling solar wiring. The solar PV
array may produce open-circuit voltages
in excess of 100V when in sunlight. Make
sure that all the power is turned off before
installation and operation.
Solar Charge Controller Mounting
Bracket Installation (if included)
Refer to separate Solar Charge Controller
Mounting Bracket installation manual
included in the packaging to install it.
MPPT Solar Charge Controller
Installation

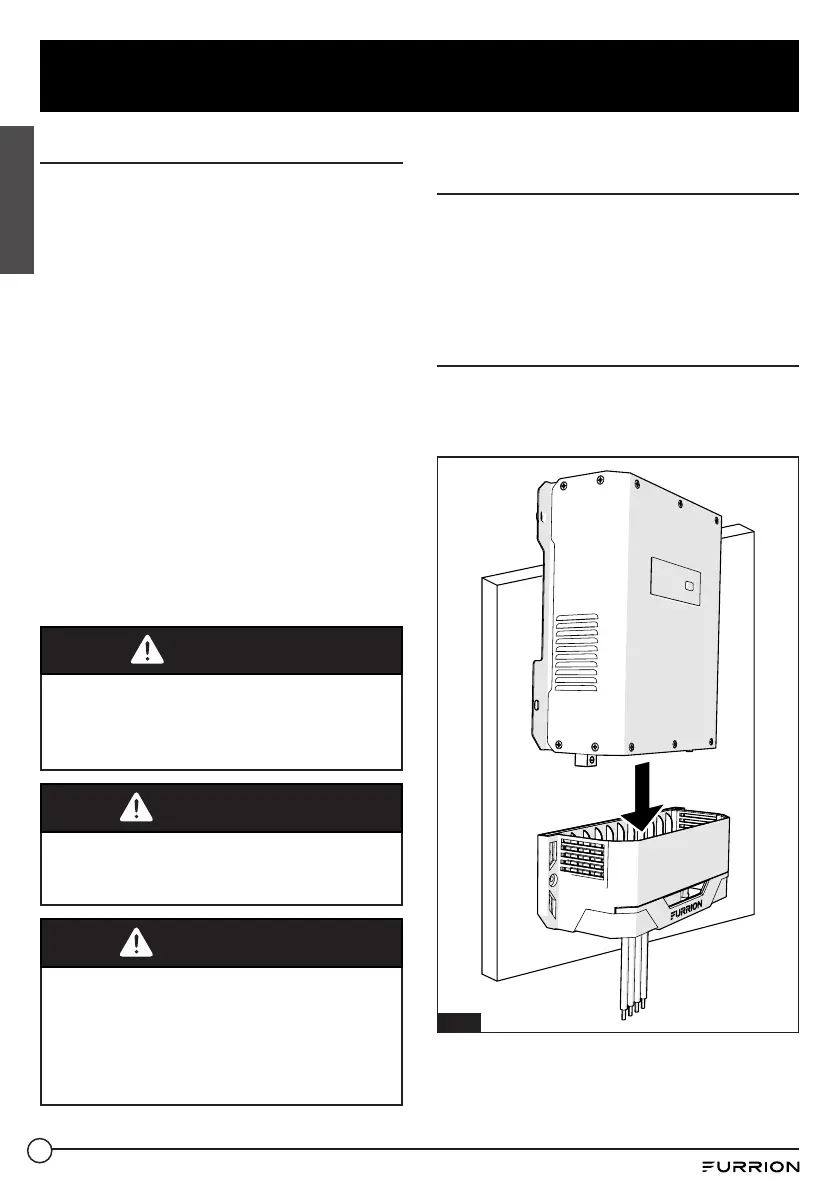

1. Insert the MPPT controller into the Solar
Charge Controller Mounting Bracket
(FSCC60PWM-BL). (Figure 1)
Fig. 1
