1-18
Sheath
CABLE GLAND
Plate
Gasket
Flat
washer
Bolt
Within 4 cm
Tubing
Shield

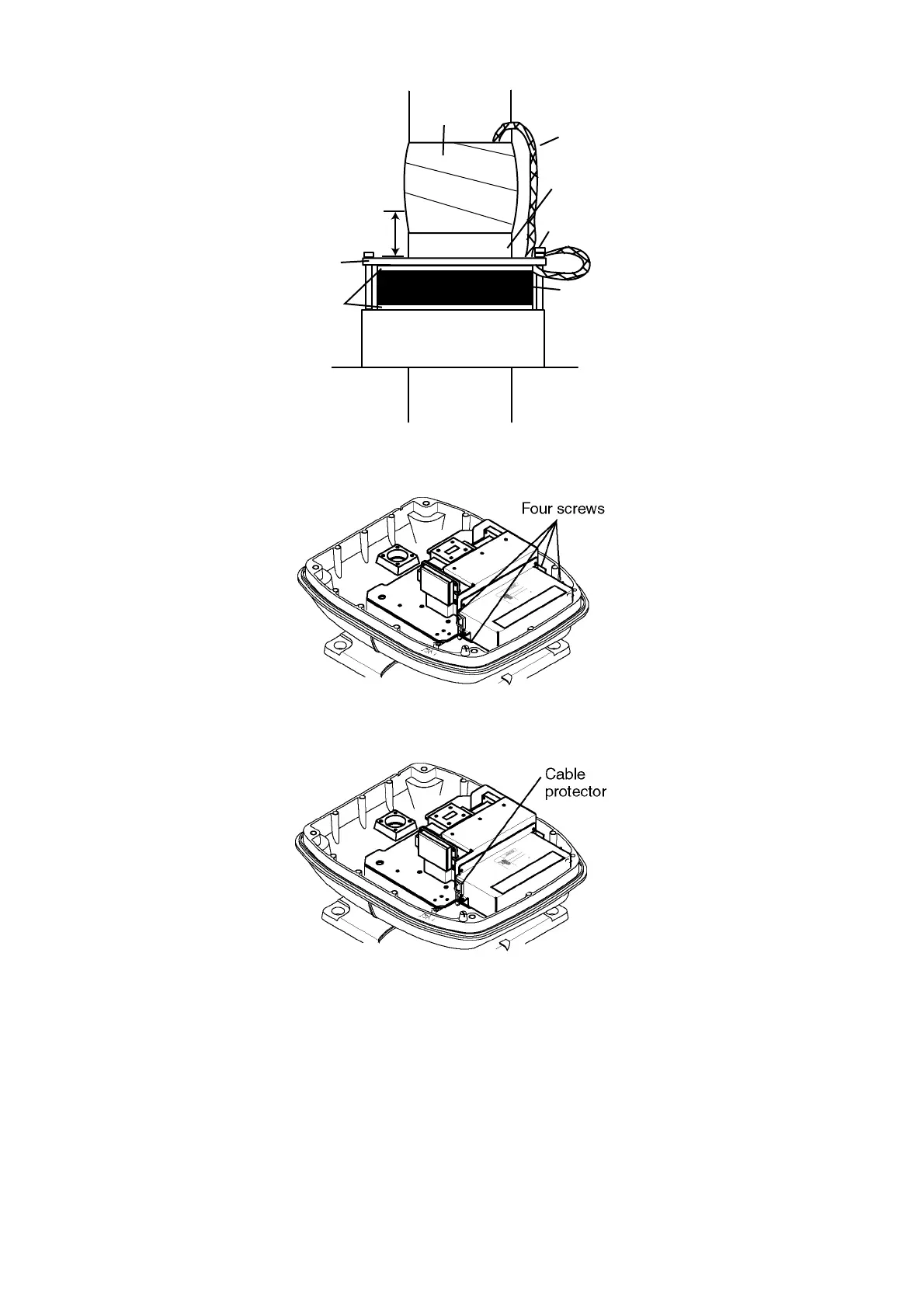

How to fix signal cable in cable gland
6. Unfasten four screws shown in the figure below.
Antenna unit chassis, cover opened
7. Pass the signal cable through the cable protector.
Antenna unit chassis, cover opened
8. Connect the signal cable to the RTB Board (03P9249), referring to the interconnection
diagram and the figure below.
9. Attach three EMI cores to the signal cable as shown below.
To Next Page
