Furuno 2127 - Flush Mounting of Monitor Unit; Attaching Panel Hook and Panel Cover

1. MOUNTING
1-7
570
4-φ8 FIXING HOLES
598
(96)
505
4-FIXING HOLES
554
471
30
80
Monitor unit MU-231CR
570±1
313
±
1
(For FAR-2817/2827)
313
±
1
±
1

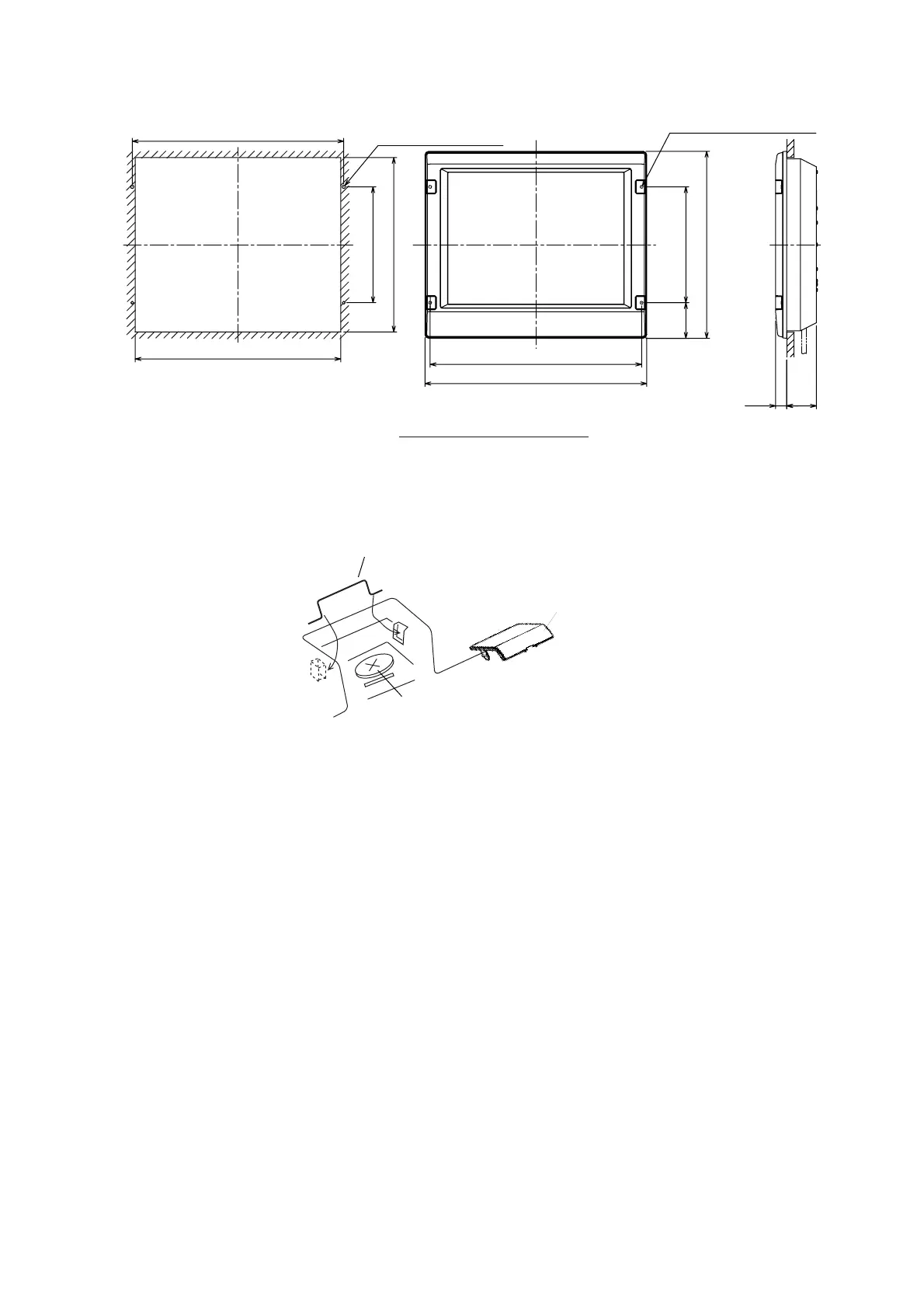

Flush mounting of monitor unit
Panel hook
Panel cover
Fixing screw
Attaching panel hook and panel cover
Note: If you need to remove the monitor unit from the mounting panel, remove the four
panel covers with your fingernail and use two panel hooks supplied as accessories to
lift the monitor unit.
