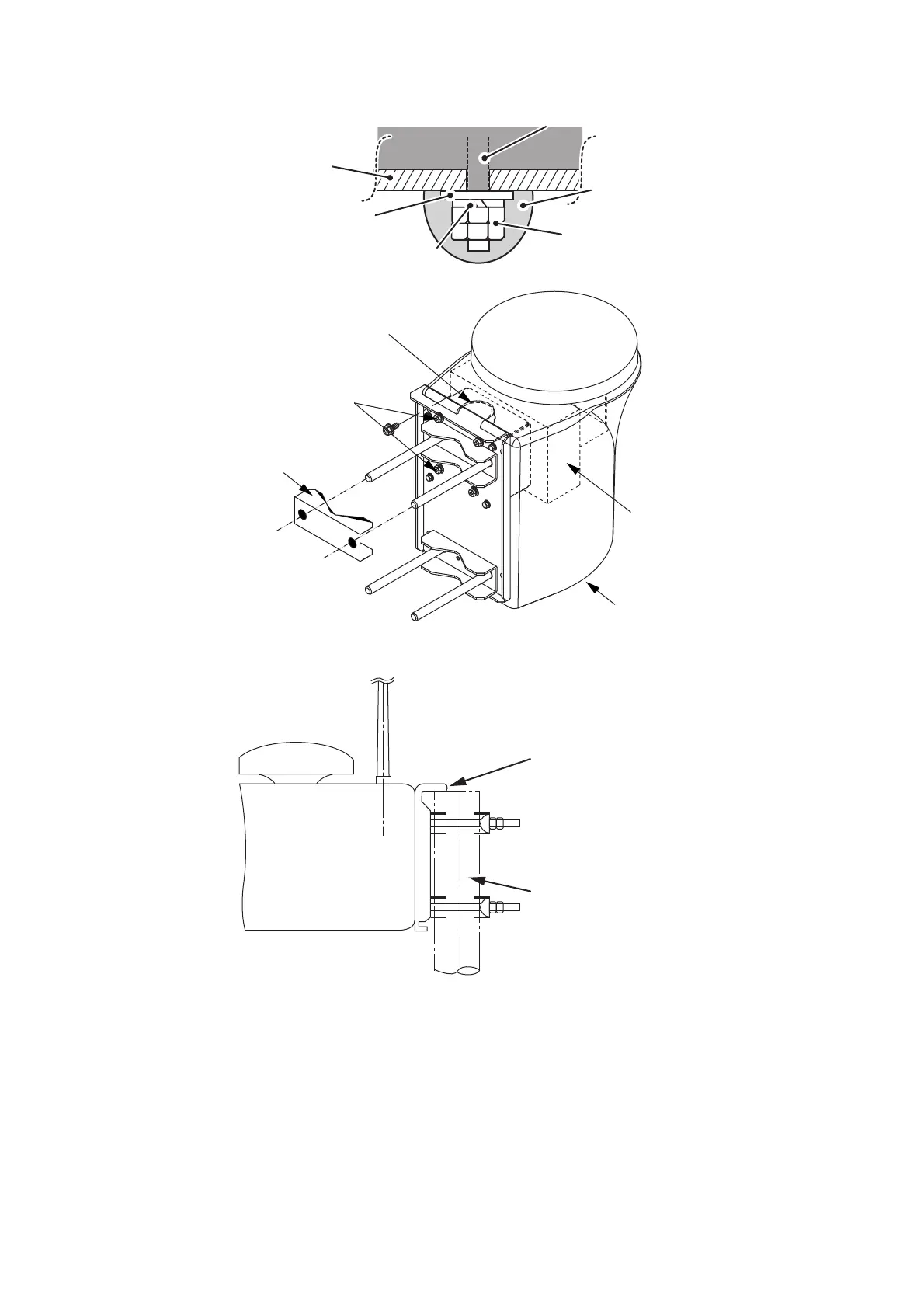

1. MOUNTING

1-6

Note: Coat the exposed parts of bolts and nuts with marine sealant (local supply).

GPS/VHF Combined antenna

Mounting platform

Hex nuts

Bolt

Spring washer

Flat washer

Coat with

marine sealant

Antenna baseAntenna base

Antenna fixing bracket

Loosen four screws.

(M5×16)

Bottom cover

Combined box

Whip antenna fixture

Stanchion

The antenna flange

should be placed at

the top of the

stanchion to prevent

the antenna from

slipping down the

stanchion.
