Furuno FI70DSW User Manual

1. OPERATION AND CONTROLS OVERVIEW
1-5
1.7.1 How to change the displayed page
The FI-70 can display up to seven different pages of information. Use the software
keys to change pages backwards and forwards between the pages.
The number of the current page is displayed as a large numeral in the center of the
screen for three seconds after the page is displayed.
Pages with no display information selected are skipped. In the example below, no
information is selected to be displayed on pages 2, 5 or 7.

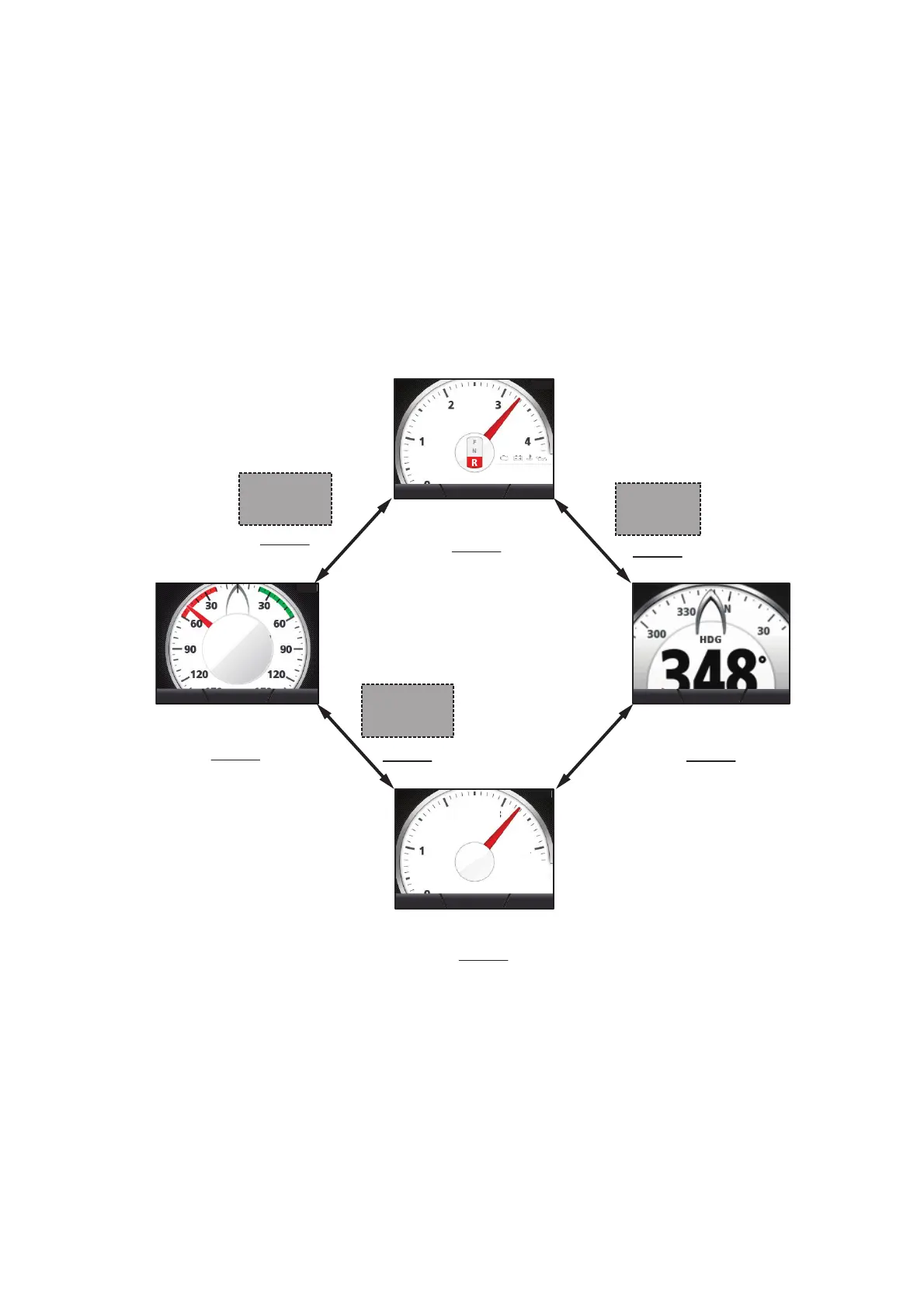

Pressing the right software key will display, in order, Engine → Compass → Speed
→ Wind direction → Engine, while pressing the left software key will display the pages
in reverse order.
Not set
Not set
Not set
Page 2
Page 5
Page 7
Page 1
Engine
Page 3
Compass
Page 6
Wind direction
Page 4
Speed
x1000
RPM
3280
Eng. Temp.
125.6
1
1
Ent NextPrev
33
Ent NextPrev
STW
kn
10
15
20
17.8
SOG
4
4
Ent NextPrev
50
º
AWA
A
6
6
Ent NextPrev

Furuno FI70DSW Specifications

General

Display Type	Color LCD
Resolution	320 x 240 pixels
Waterproof Rating	IP56
Power Supply	12-24 VDC
Weight	0.6 kg (1.3 lb)
Backlight	LED
NMEA2000	Yes
Input Voltage	12-24 VDC
Operating Temperature	-15°C to +55°C
Interface	NMEA2000
Screen Size	4.1 inches
