8. INSTALLATION
8-12
5. Fasten the Voice Scrambler circuit board to the transceiver with the screws unfas-
tened at step 4. Plug in the connector from the Voice Scrambler circuit board
where the dummy connector was connected.
6. Close the shield cover.
7. Turn the transceiver right side up.
8. Check that the gasket at the rear of the transceiver is properly seated. (See the
figure at the bottom of page 8-10.)
9. Set the cover to the transceiver and connect the connector to the circuit board in
the transceiver.
10. Close the cover.

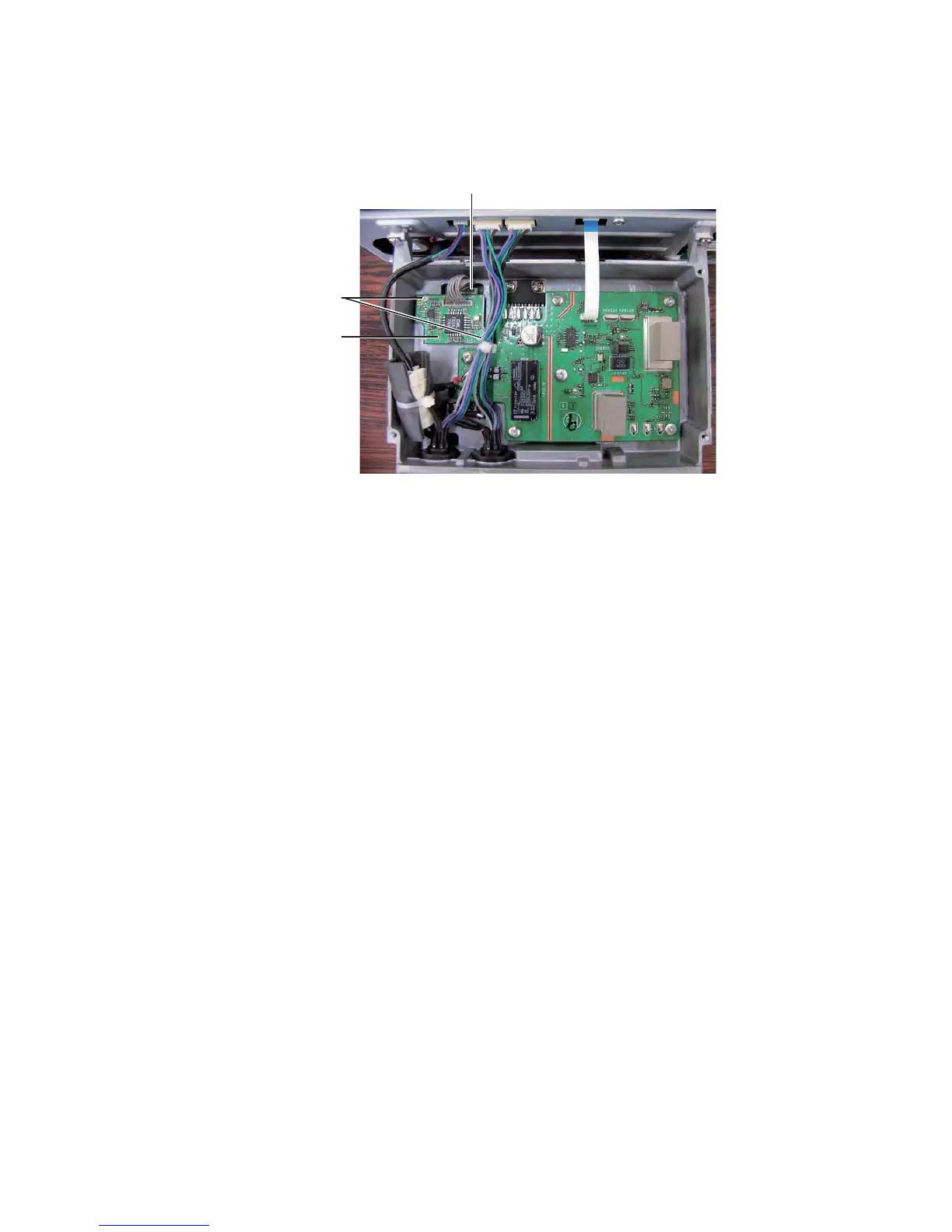

Plug in connector from
circuit board here.
Voice Scrambler
circuit board
Fasten circuit board
with screw.
