Configuration with the web interface
5-23
To add or edit a Modem profile, do as follows:
1. Go to SETTINGS > Modem profiles and click New entry or Edit. The supported
modem profiles are listed in the drop-down list Modem profile.

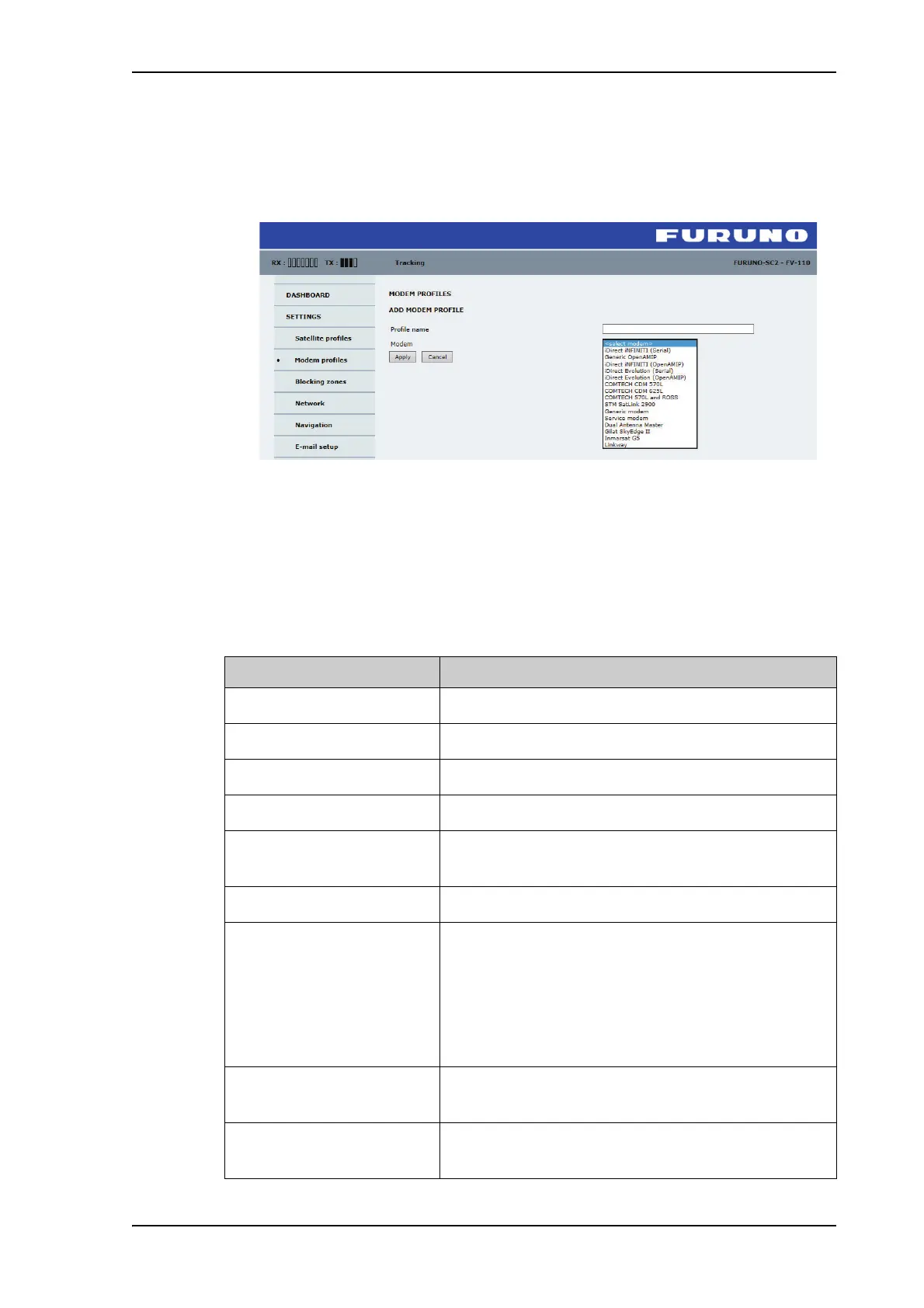

Figure 5-17: Web interface: SETTINGS, Modem profile – supported modems
2. Fill in a Modem profile name of your own choice.
3. Select one of the supported VSAT modems from the drop down list. Once you have
selected a VSAT modem, entry fields required for this VSAT modem are displayed.
Generic modem: If you have a modem that is not included in the list, select the generic
modem. This is mainly used for troubleshooting purposes.
4. Fill in or edit the data provided by your VSAT service provider.
The following configuration data may be needed by the modem:
Table 5-14: Modem configuration data
Parameter Description
IP address Enter the IP address for the dual antenna master.
Port Enter the modem IP port number.
VSAT modem root password iDirect serial login. Default: P@55w0rd!
VSAT modem user password iDirect serial login. Default: iDirect
Baud rate Select the baud rate for the modem communication or
modem GPS input.
GPS output Disable GPS output or select the appropriate baud rate.
10 MHz reference Select the 10MHz reference source for the BUC/LNBs.
Recommended settings:
VMU-TX: STM Satlink 2900, Gilat SkyEdge II,
COMTECH
ACU Internal: iDirect modems, service modem,
InmarsatG5
RSSI lock type Select None (no RX lock), High (positive voltage) or
Low (negative voltage)
RSSI lock level Enter the voltage level for the modem RX lock signal.
Range: 0 - 14000 mV (-14VDC to +14VDC)
