6. BERTHING DISPLAY
6-3

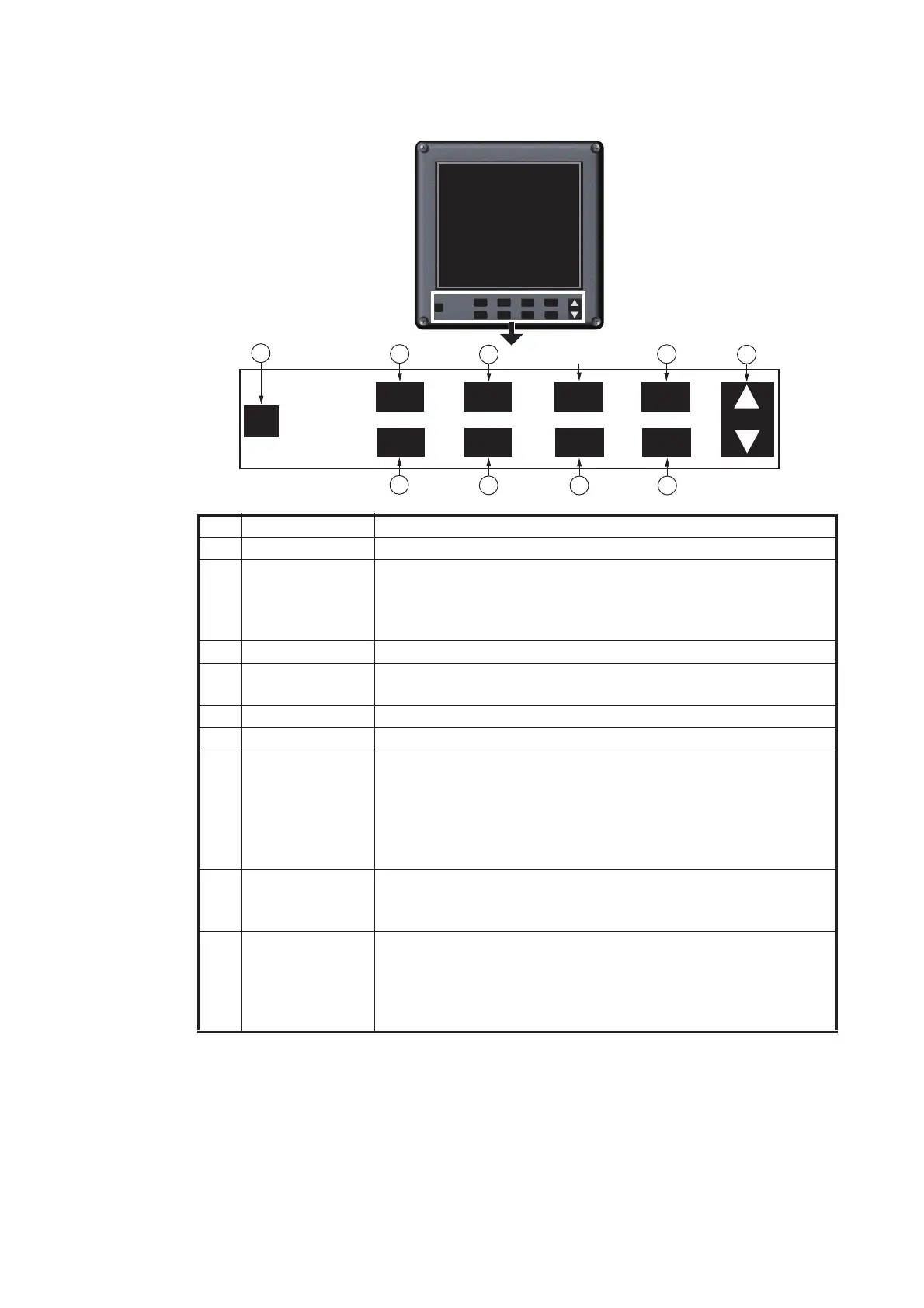

6.2 Controls for the Display Unit DS-600
No. Control Function
1 PWR Turn the power on and off.
2 DISP • Select a display.
• Close the menu and return to the last-used display.
• In multiple data displays, select a data indication to change
its unit of measurement (with the UNIT key).
3 TRKG/MODE Select the ship speed mode between SOG and STW.
4 UNIT Select the unit of measurement for speed, depth, distance, cur-
rent (tide) speed, wind speed, etc.
5 RNG Select the range in the berthing and echo monitor displays.
6 DAY/NT Select the daytime and nighttime displays alternately.
7 MENU ESC • Open the menu.
• Return control to the menu window without making any
changes at the menu options window.
• Select the item to change its unit of measurement in multiple
data displays.
• Close the menu when the menu window is active.
8 ENT • Confirm an operation in menu operation.
• Long-push to hide or show nav data and 3-axis speed data
in the berthing display.
9 BRILL • Adjust the screen brilliance in 10 levels including off. T to
decrease the brilliance, S to increase the brilliance. To
quickly increase or decrease the brilliance, press and hold
the related cursorpad point.
• Move the cursor in menu operation.
