10
For non-waterproofing
When you do not need the waterproofing, use the cable fixing metal (supplied as the installation
materials).

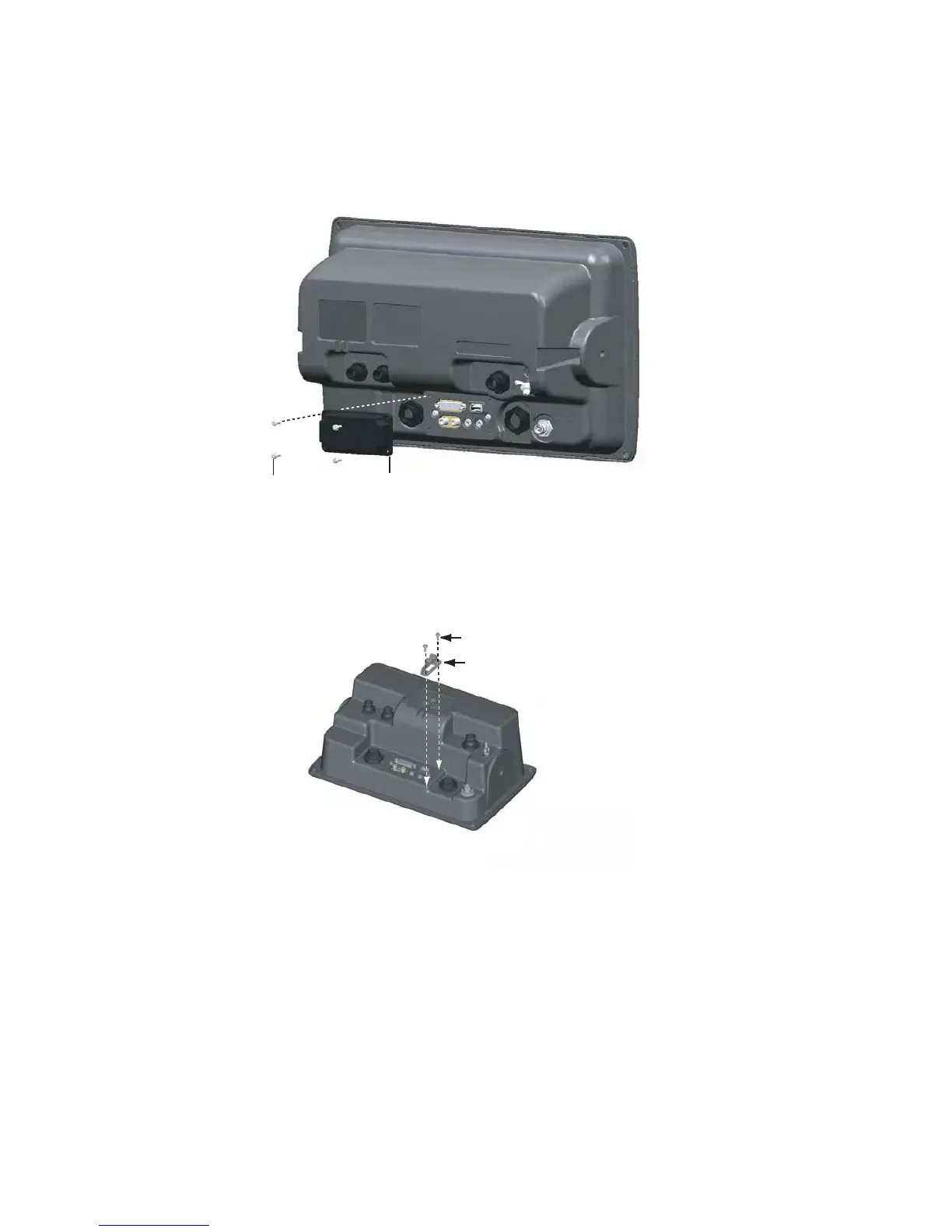

1. Unfasten four binding screws to detach the connector cover at the rear of the display unit. Dis-
card binding screws.
2. Attach the cable fixing plate by using the binding screw (M3x10, supplied as the installation
materials).
3. Attach each connector to the appropriate location at rear of the display unit.
4. Wind the cable tie (supplied as the installation materials) to fix the cables to the cable fixing
plate.
Connector cover
Binding screw
(4 pcs.)
Binding screw (M3x10)
Cable fixing plate
To Next Page
