22
(Setting for ETR)

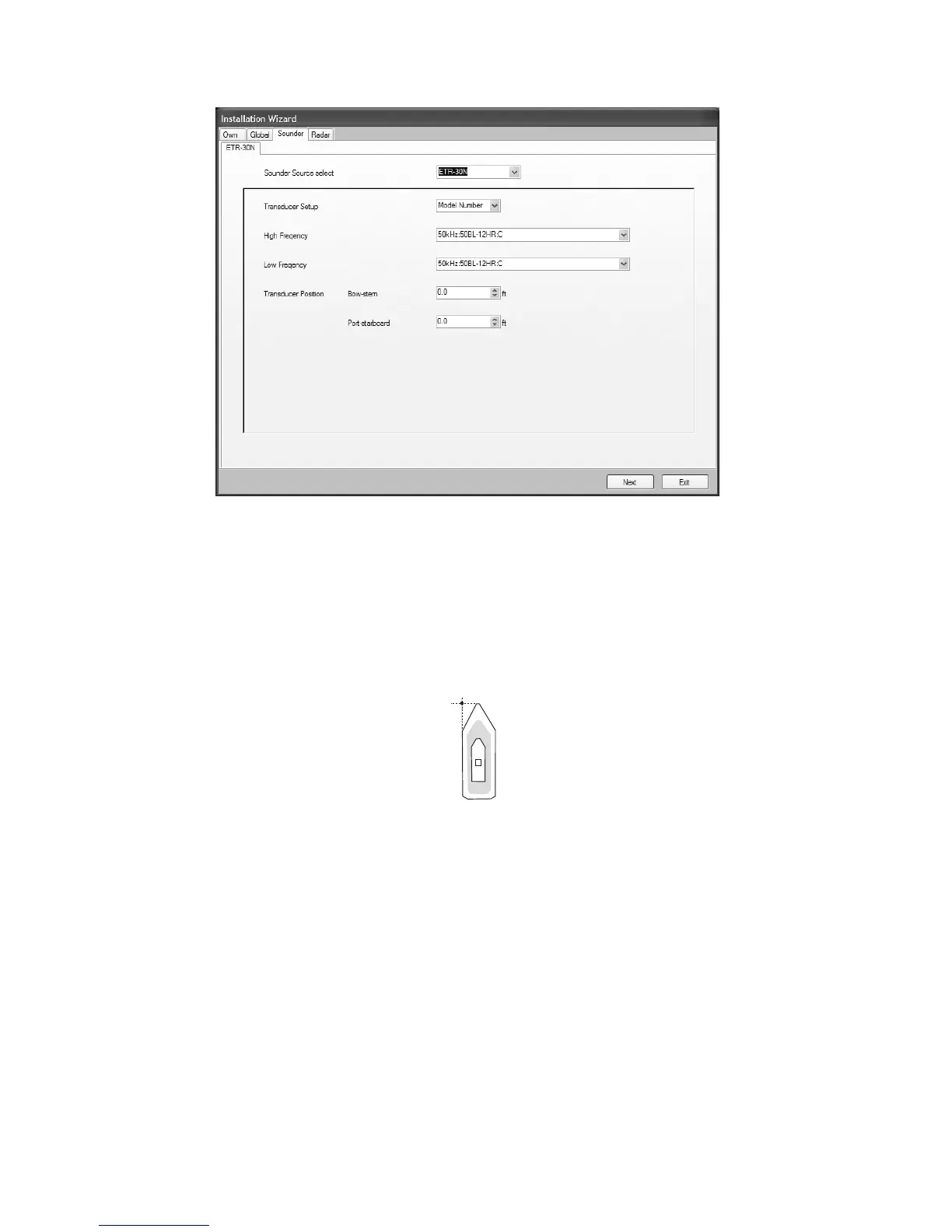

a) Click the Transducer Setup pull-down menu, and choose Model Number or Manual,
according to the transducer connected.
Model Number: Furuno’s transducer
Manual: Transducers other than Furuno
b) If you choose Model Number at step a), click the High Frequency and Low Frequency pull-
down menus, and choose the applicable model type. For Manual, set the high and low fre-
quencies with the respective pull-down menus.
c) Use the arrow buttons at Transducer Position to set transducer position.
d) If a radar sensor is connected, click the Next button to continue.
(For FCV-1150)
Do the step c) shown above.
Origin
To Next Page
