21

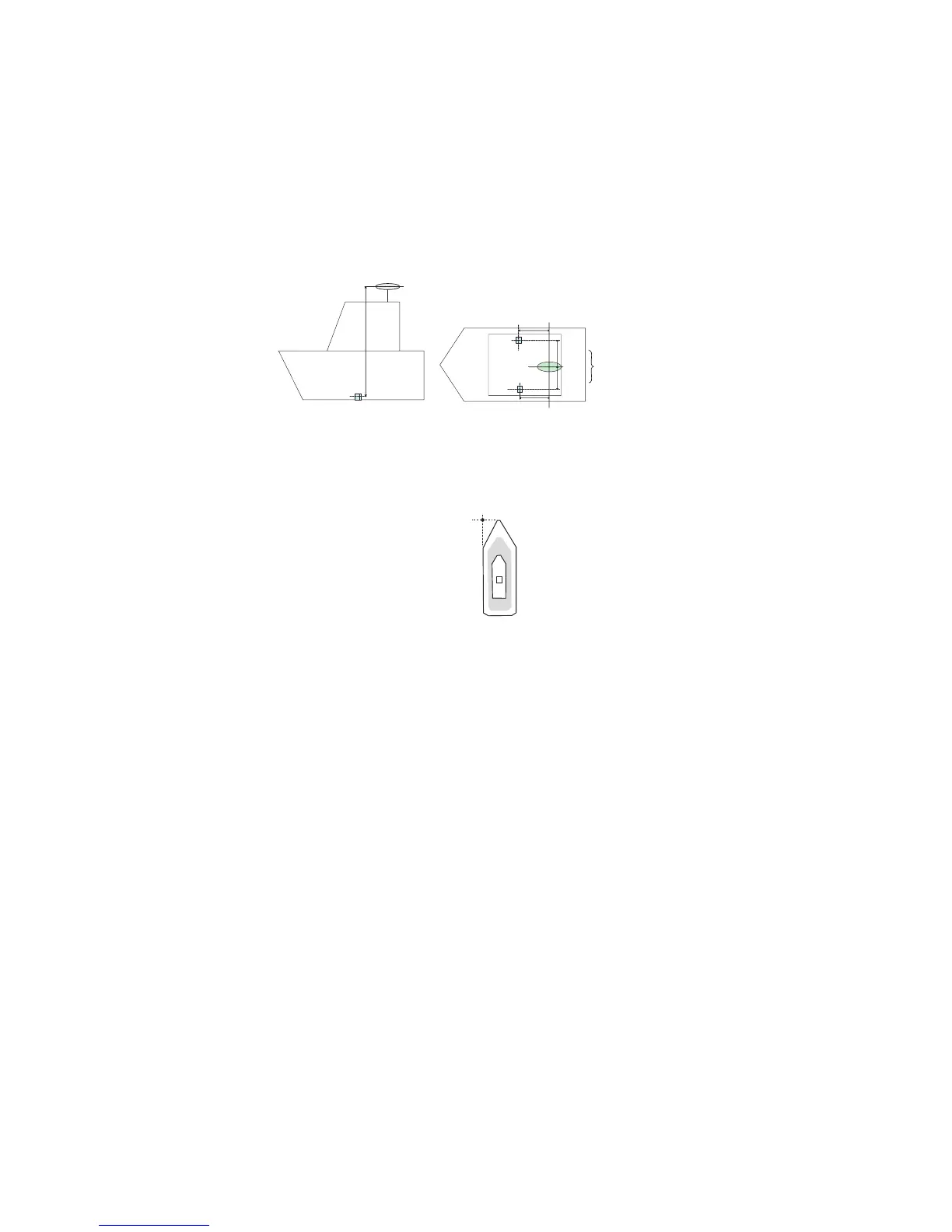

d) If the satellite compass SC-30 or SC-50/110 is connected, set the distance between
antenna unit (or sensor) of the satellite compass and transducer (high and low if con-
nected) at the Transducer Position for SC pull-down menus.
Bow-stern: Set the distance from antenna unit to the transducer in bow-stern direction.
When the transducer is located on the fore side, set a positive value.
Up-down: Set the distance from the transducer to the antenna unit in the vertical direction.
Port-starboard: Set the distance from antenna unit to the transducer in port-starboard
direction. When the transducer is located on the starboard side, set a positive value.
e) Click the Motion Sensor pull-down menu, and choose SC-30 or SC-50/110 if connected.
f) Set the transducer position at the Transducer Position pull-down menus.
g) If the DFF3 is equipped with a water temperature sensor, click the Temperature Port pull-
down menu, and choose the temperature source, MJ (NMEA0183 connector), High-
freq(ency) or Low-freq(ency).
h) If a radar sensor is connected, click the Next button to continue.
Note: For DFF3, set the tap setting in the network sounder after setting up all the MFDs.
For details, see the Operator’s Manual for DFF3.
SC-30
9.3 m
(Up-down)
1.5 m
(Bow-stern)
1.4 m
(Bow-stern)
High
Low
0.8 m
1.0 m
SC-30
(Port-starboard)
Origin
To Next Page
