22
17.Choose the desired unit of length and width for the boat (ft, m) at the Length/Width unit pull-
down menu.
18.Choose the unit of height for the boat (ft, m) at the Height unit pull-down menu.
19.Set the length of boat at the Boat Length pull-down menu.
20.Set the width of boat at the Boat Width pull-down menu.
21.Click the Next button.

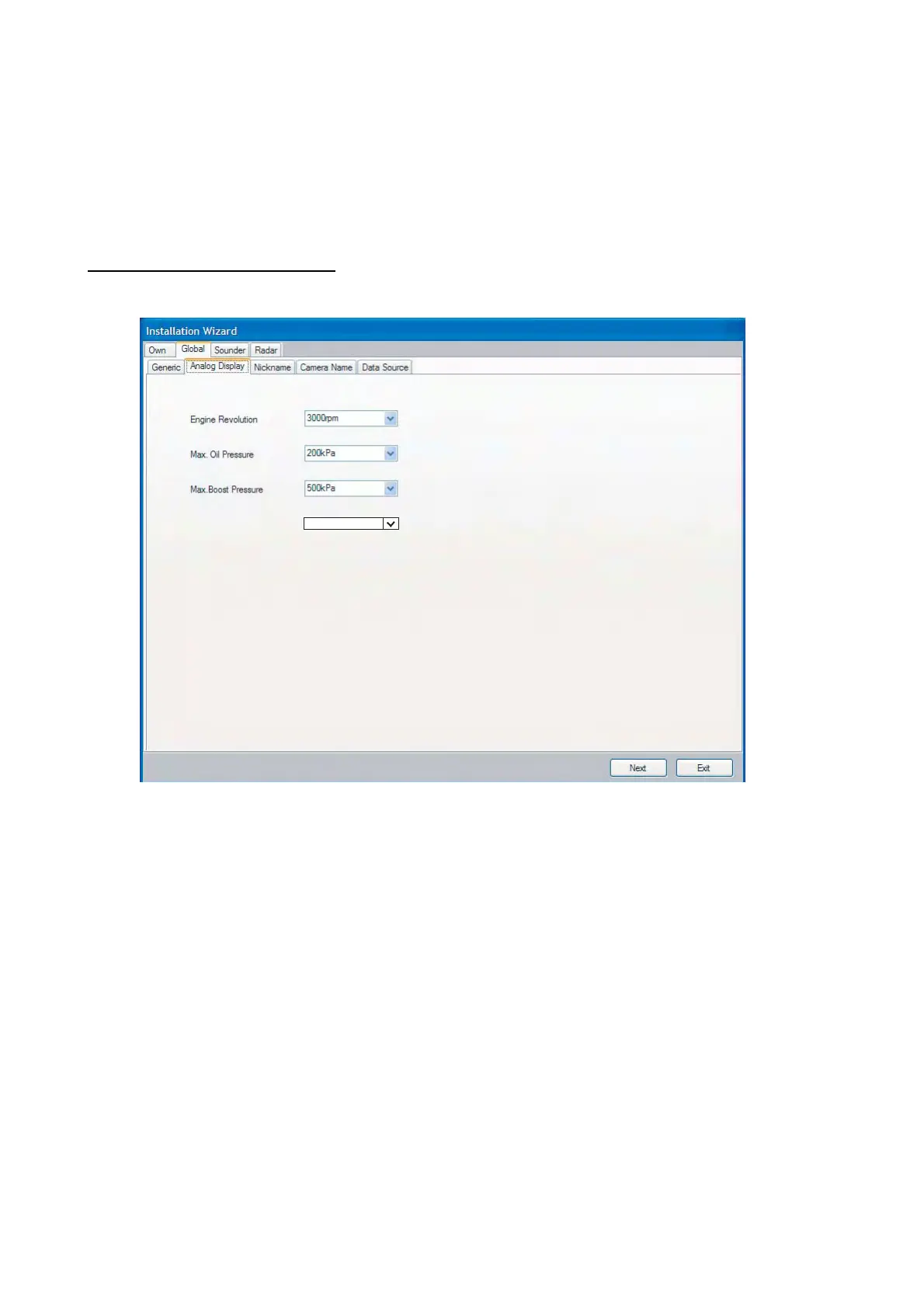

Global tab-Analog dialog box
Set your engine’s specifications.
22.Choose the max. scale of the tachometer (3000 rpm, 4000 rpm or 8000 rpm) at the Engine
Revolution pull-down menu.
23.Choose the max. scale of the oil pressure meter (200 kPa, 500 kPa or 1000 kPa) at the Max.
Oil Pressure pull-down menu.
24.Choose the max. scale of the boost meter (200 kPa, 500 kPa or 1000 kPa) at the Max. Boost
Pressure pull-down menu.
25.Choose the number of engines on your boat (1, 2 or 3) at the Number of Engine pull-down
menu.
26.Click the Next button.
Number of Engine
1
