Furuno TZT2BB - Side Scan Display Operations; How to Switch between TX and STBY; How to Change Echo Color; How to Show or Hide the Scale Box

8. MULTI BEAM SONAR DFF-3D
8-8

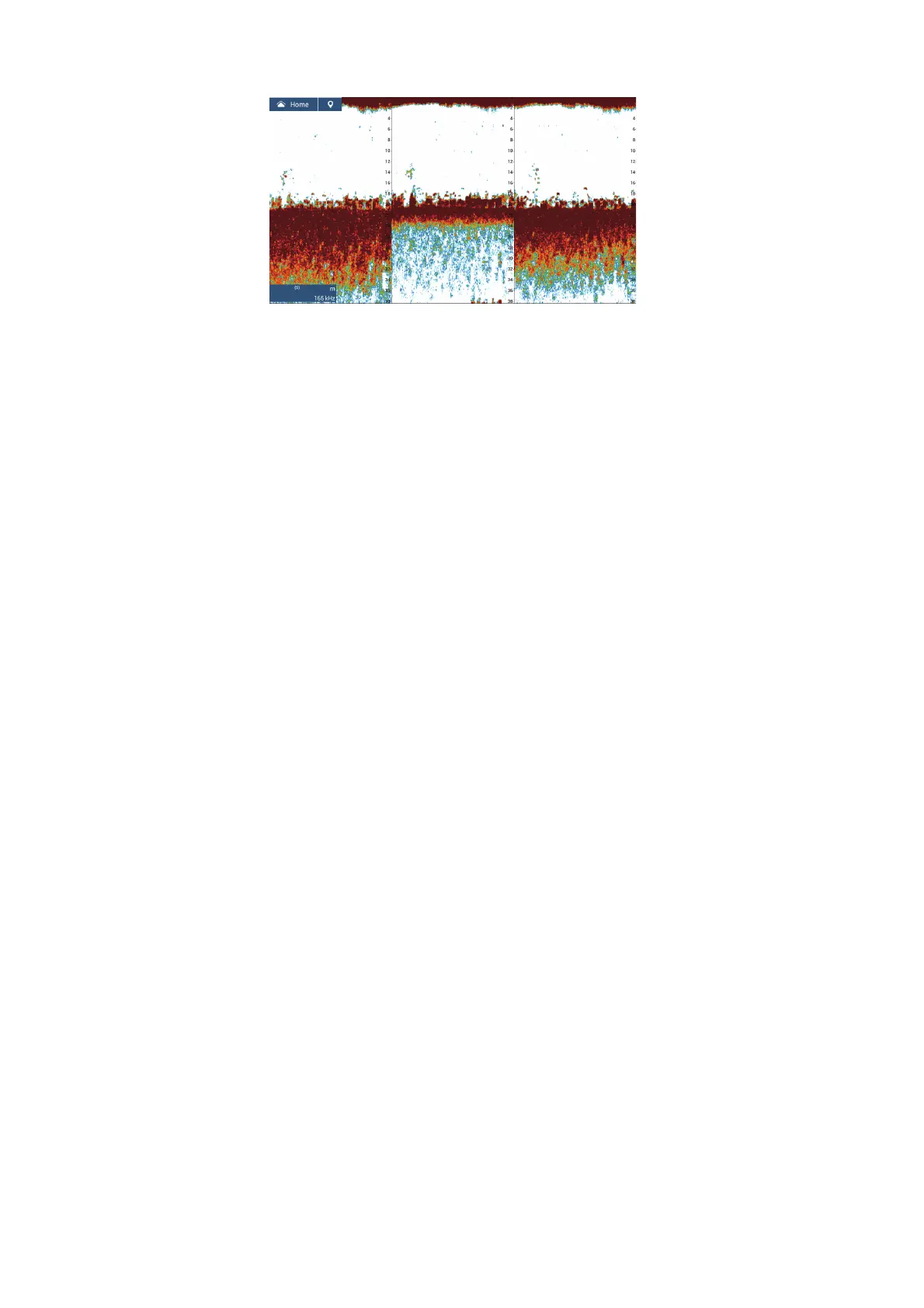

8.4 Side Scan Display Operations
This section covers the functions available with the side scan display. For the menu
items shared with the conventional fish finder, see chapter 7. To show the menu for
this function, tap the screen to show the pop up menu; or from the [Home] screen, tap
[Settings][Multi-Beam Sonar].
8.4.1 How to switch between TX and STBY
Tap the side scan display to show the pop-up menu. Select [TX] to start transmitting.
[ST-BY] appears at the center of the screen when transmission is stopped.
8.4.2 How to change echo color
1. Select [Settings] on the home screen.
2. Select [Multibeam Sonar] - [Side Scan].
3. Select [Echo Color].
4. Select [White], [Blue] or [Brown] as required.
5. Select [Close] to close the pop-up menu.
8.4.3 How to show or hide the scale box
The scale box, shown at the bottom left corner on the display, shows depth and TX
frequency. You can show the box as follows.
1. Tap the side scan display to show the pop-up menu.
2. Select [Scale Box] to show the scale box.
Port
Port
Downward
Downward
Starboard
Starboard
21.0
