FUTABA 7CAP - Transmitter Controls Overview (Airplane Mode); Airplane Mode Transmitter Switches; Transmitter Sticks and Trim Levers; Other Transmitter Controls (Dial, LCD, Power)

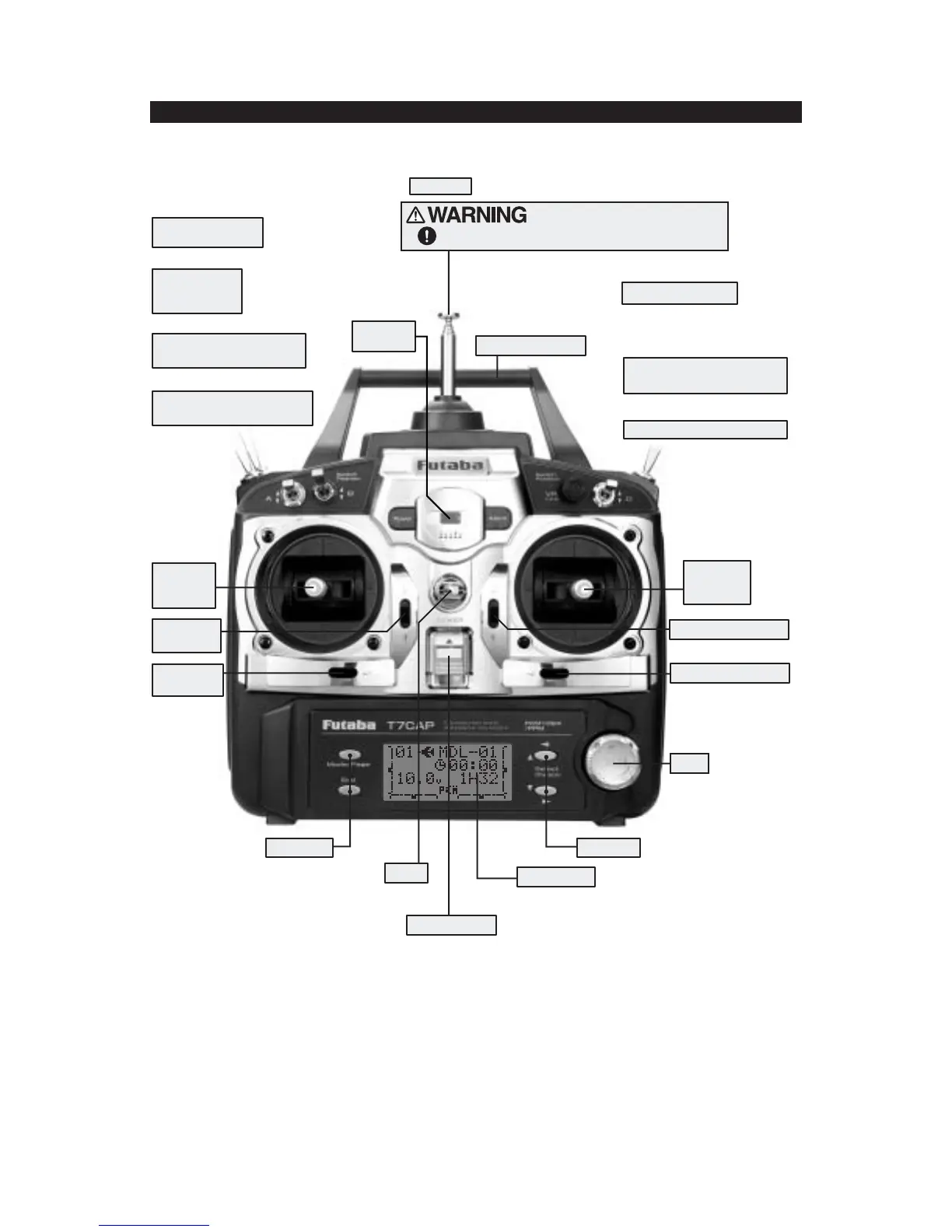

TRANSMITTER CONTROLS - AIRPLANE
SW(B)
VR
SW(A)
SW(F)
SW(E)
SW(D)
SW(G)
This controls CH6, and if flaperon mixing
is activated controls the flap.
Flap Trim Control
Rudder Dual Rate Switch
Elevator Dual Rate Switch
/TH-CUT/P-MIX/TIMER
Snap Roll or
Trainer Switch
Landing Gear
Switch
/CH5
/CH7
Rudder
/Throttle
Stick
Power
LED*
Throttle
Trim Lever
Rudder
Trim Lever
LCD Panel
Power Switch
(Up position: ON)
Hook
(for optional neckstrap)
Edit Keys
Edit keys
Aileron Trim Lever
Dial
Elevator Trim Lever
Elevator
/Aileron
Stick
Aileron Dual Rate Switch
Elevator - Flap Mixing or
Airbrake Mixing Switch
Carrying Handle
Antenna
Antenna must be fully extended when flying.
Be careful not to bend your antenna when you
collapse or extend it.
11
This figure shows the default switch assignments for a Mode 2 system as supplied by the factory.
You can change many of the switch positions or functions by selecting a new position within
the setting menu for the function you wish to move. (Example: move aileron dual rates to switch G
to create triple rates. See p. 34 for details.)
*Power LED blinks to indicate if any mix switches are activated.
