FUTABA 7CAP - Basic Tail Types and ELEVON (ACRO) Function; Basic Tail Types (Simple, Tail-less, V-TAIL); ELEVON Functionality for Tailless Aircraft; Adjusting ELEVON Aileron Differential

There are 3 basic tail types in aircraft models:
Simple. Model uses one elevator servo and one rudder servo (or multiple servos on a Y-harness). This is the default.
Tail-less model. Model uses 2 wing servos together to create roll and pitch control. see ELEVON.seep. 45.
V-TAIL. Model uses 2 surfaces, at an angle, together to create yaw and pitch control. see V-TAIL.seep. 46.
Note: Only one of the two tail-type functions ( V-TAIL,andELEVON) can be used at a time.
(See the wing type example on page 42.)
Using ELEVON(ACRO ): used with delta wings, flying wings, and other tailless aircraft that combine aileron and
elevator functions, using two servos, one on each elevon. The aileron/elevator travel can be adjusted independently.
This is also popular for ground model use, such as tanks, which drive two motors together for forward, and one motor
forward/one backward for turning. Also aileron differential can be adjusted in this programming.
Adjustability:
• Requires use of CH1 and CH2.
• Independently adjustable aileron/elevator travel.
• Adjustable aileron differential.
NOTE: If ELEVON is active, you cannot activate FLAPERON.
You must deactivate the last function to activate ELEVON.
NOTE: Be sure to move the elevator and aileron sticks to full deflection during setup. If large travels are specified, when
the A
ILERON and ELEVATOR STICKS are moved at the same time the controls may bind or run out of travel.
(For details on setting up a complex aerobatic plane, such as "space shuttle" style controls, please visit
www.futaba-rc.com\faq\faq-7c.html. Many other setup examples are also available at this location.)

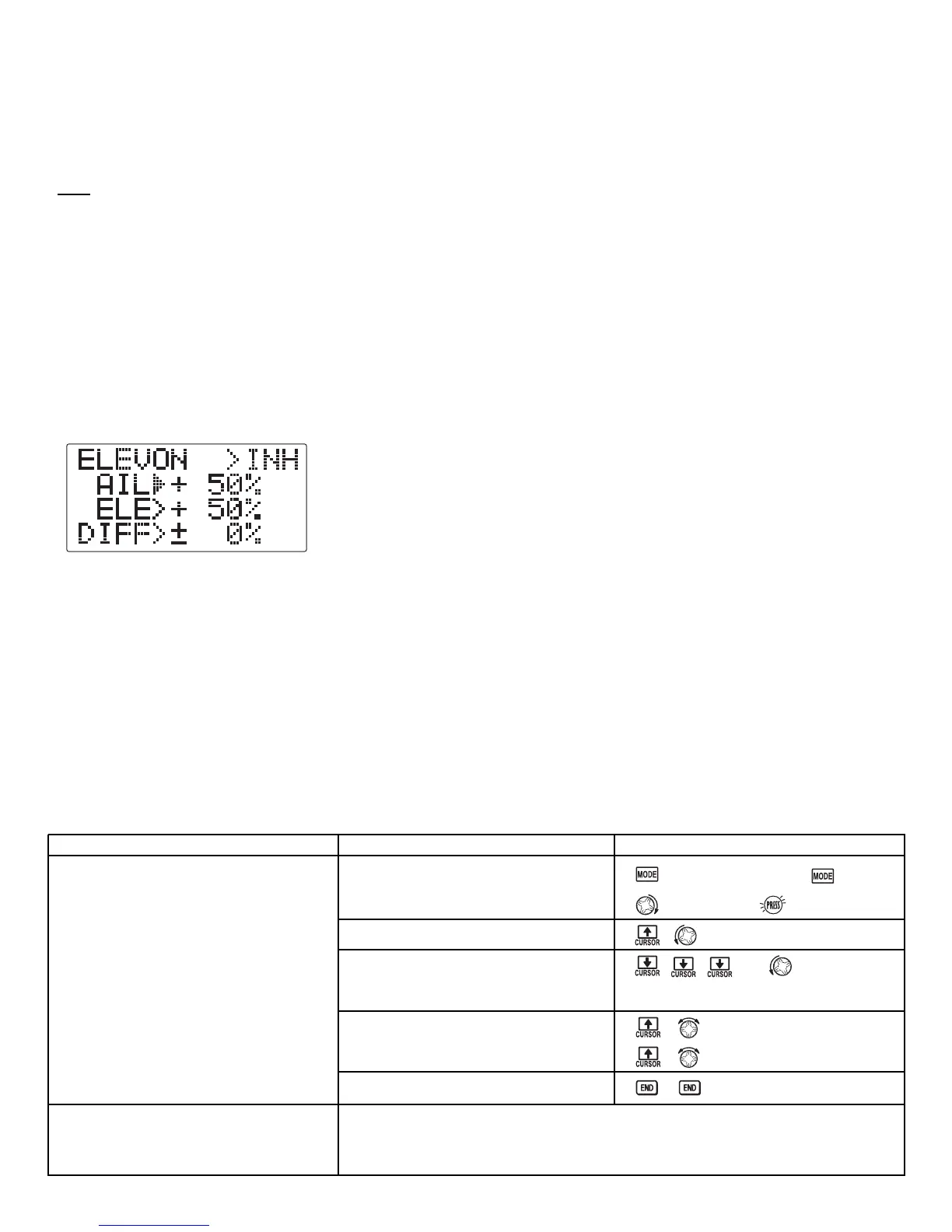

GOAL of EXAMPLE: STEPS: INPUTS:
45
Activate ELEVON.
Adjust aileron differential to +10%.
Where next?
Open the ELEVON function.
Activate the function.
Optional: adjust the aileron
differential.
(Ex: +10%. )
Optional: adjust the aileron/elevator
travel as desired.
Close menu.
for 1 second.
(If basic, again.)
to ELEVON.
to +10%.
Adjust individual servo's SUB-TRIMs: see p. 40 and END POINTs: see p. 32.
Set up dual/triple rates and exponential (D/R,EXP) :seep. 34.
View additional model setups on the internet: www.futaba-rc.com\faq\faq-7c.html
(Elevator travel)
(Aileron travel)
