ADJUSTMENTS AND FLIGHT TECHNIQUES
Master and Slave Channel Selection

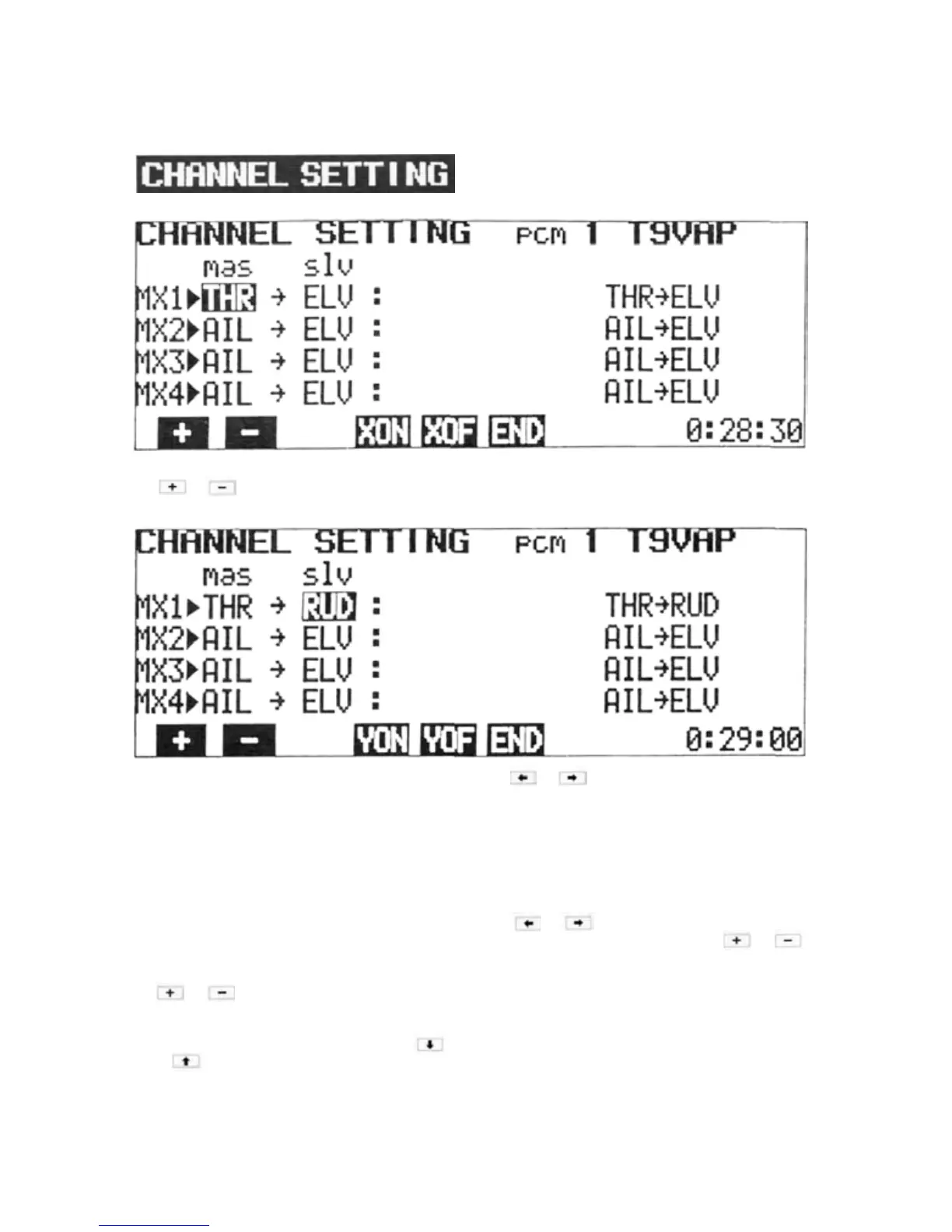

In the first example shown, THR (Throttle) is set at "mas". The Master channel can be changed by pressing
the
program key. or
The cursor can be moved to the "slv" position with the
selected by pressing the + or - program key.
or
cursor key and the Slave channel
Master Channel Setting
1) Select the PROG-MIX screen as described on
page 22.
2) Select the CHANNEL SETTING screen by
pressing the SET program key.
3) The Master channel can be set by pressing the
or program key to change the
Slave Channel Setting
1)
Move the cursor
to
the
"slv"
position
with
the
or cursor key.
2) Select the Slave channel with the or
program key. In the example above, the Slave
channel on MX1 (Mixing Circuit No. 1) is set
to
AIL.
channel.
4) The mixing circuit to be programmed can be
selected by moving the cursor with the
or cursor key.
[24]
