FUTABA 9VAP - RECEIVERS AND SERVOS

•RECEIVERS AND SERVOS
Receiver, servo, switch, and battery connections
Five servos
are supplied
as standard
CH9 Servo
Landing Gear
Adaptor
NR-4J
Power Switch

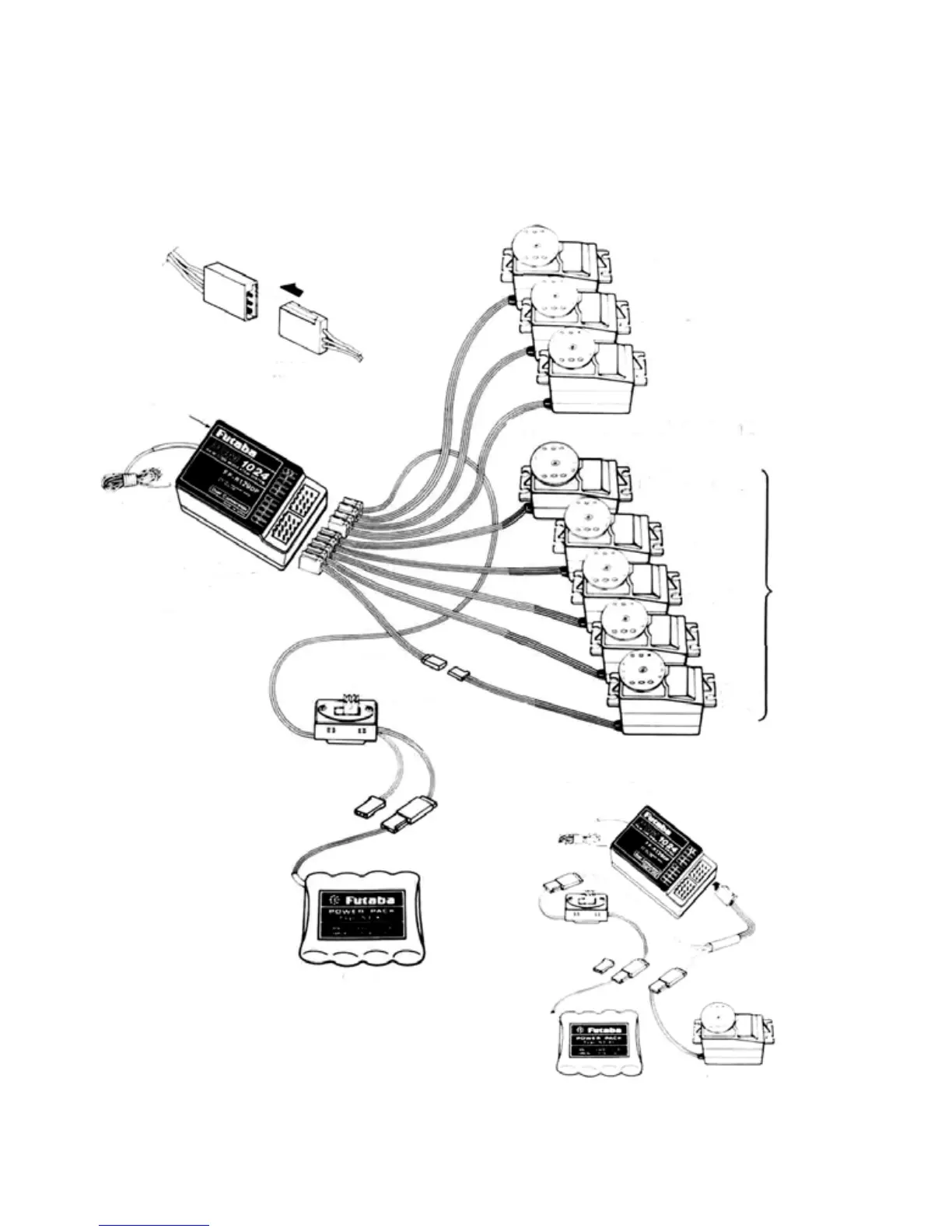

CH9 Connection Diagram
Aileron
Servo
Elevator
Servo
Extension cord
Throttle
Servo
Rudder Servo
Landing Gear Servo
PCM Receiver
R129DP
Antenna
Wire
Lighter-shaded parts must be purchased separately.
Flap Servo
Spoiler Servo
Pitch Control Servo
Pay careful attention to the
polarity of the connectors.
Receiver Crystal
