ADJUSTMENTS AND FLIGHT TECHNIQUES
5) Set the servo throw at mixing by moving the
cursor to the FLP, ELV, or SPO position with
the cursor keys and setting the rate by press-
ing the , or 100 program key. Use
the or k ey to change the servo
operating direction when necessary.
NOTE: The throw of the FLP and ELV
servos can be conveniently
changed by using the sub trim-
mers (6 -> 2MIX FLP. and 6 ->
2MIX ELE.). The characters in
parentheses represent the rate
actually set (computer value plus
the sub-trimmer setting).

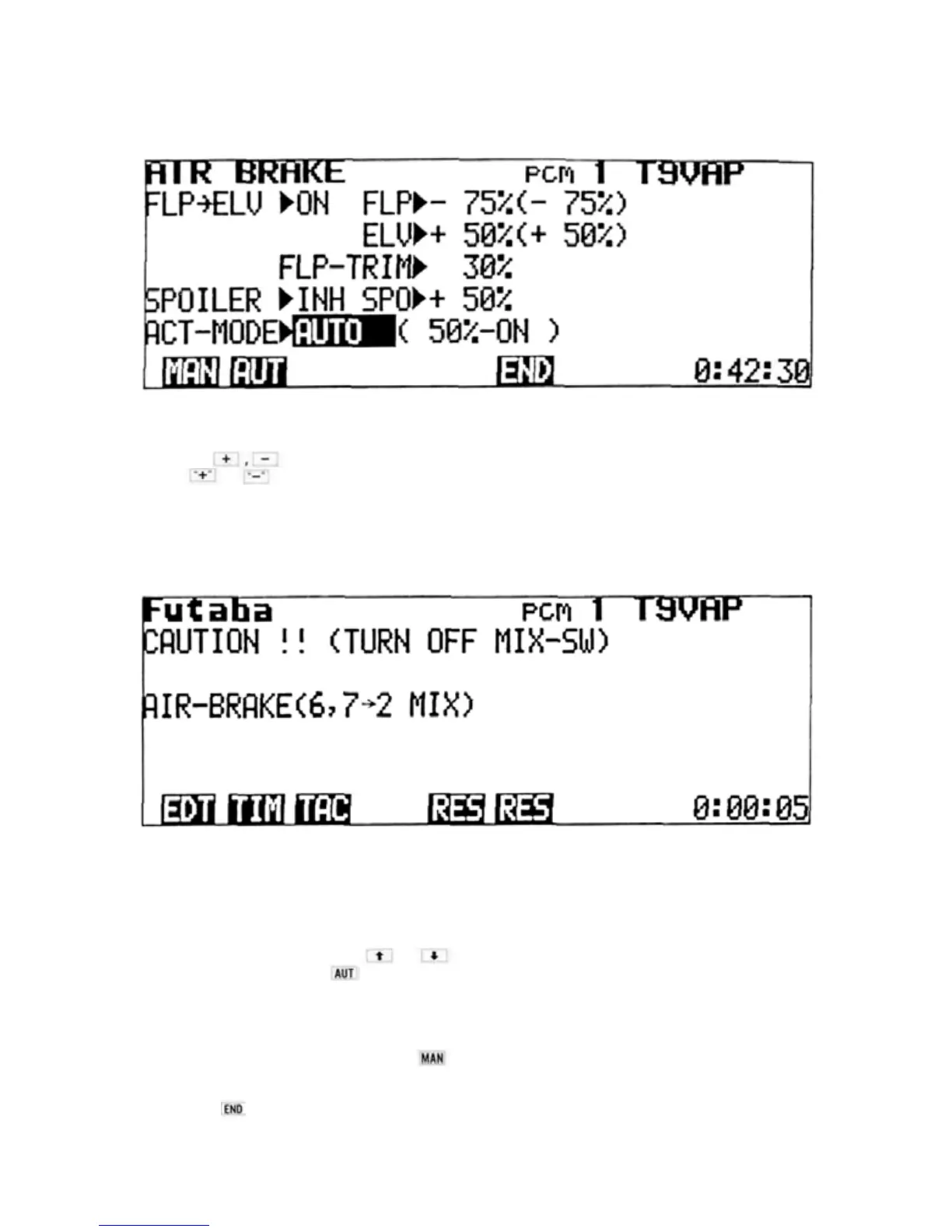

AUTO MODE SETTING
In the AUTO mode, the Air-Brake can be automatically deployed by lowering the throttle
stick.
6) To set the AUTO mode, move the cursor to
the ACT-MODE line with the or
cursor key and press the program key.
The position of the throttle stick at that time
is memorized as the mixing ON/OFF point.
The Air-Brake will deploy automatically when
the throttle is moved below that point. To
return to the manual mode, press the
program key.
NOTE: If the AIR BRAKE Switch is in-
advertently left ON when the
transmitter power is turned OFF,
a warning screen will be display-
ed when the power is again
switched ON. A buzzer will also
sound. When the AIR BRAKE
switch is turned OFF, the nor-
mal initial screen will be display-
ed.
7) To return to the original MIXING screen,
press the
key.
