＜ Modelmenu(CommonFunctions) ＞
AFR
The angle and curve of each operation function can be set. [All model types]
AFR function is used to adjust the throw and
operation curve of the stick, lever, and switch
functions for each Àight condition.
This is normally used after End Point has de¿ned
the maximum throw. When mixing is applied from
one channel to another channel, both channels
can be adjusted at the same time by adjusting the
operation rate through the AFR function.
ŏ Operation curve adjustment: Three types
of curves (EXP1, EXP2, and Point) can be
selected. A maximum 17 points curve can be
used for the point curve type. (Initial setting:
9 points) The number of points can also be
increased and decreased and curves from
complex curves to simple curves can be
used.
ŏ Operation speed adjustment: The operation
speed of each function when the function
is operated (including at flight condition
switching) can be adjusted. The function
operates smoothly at a constant speed
corresponding to the set speed.

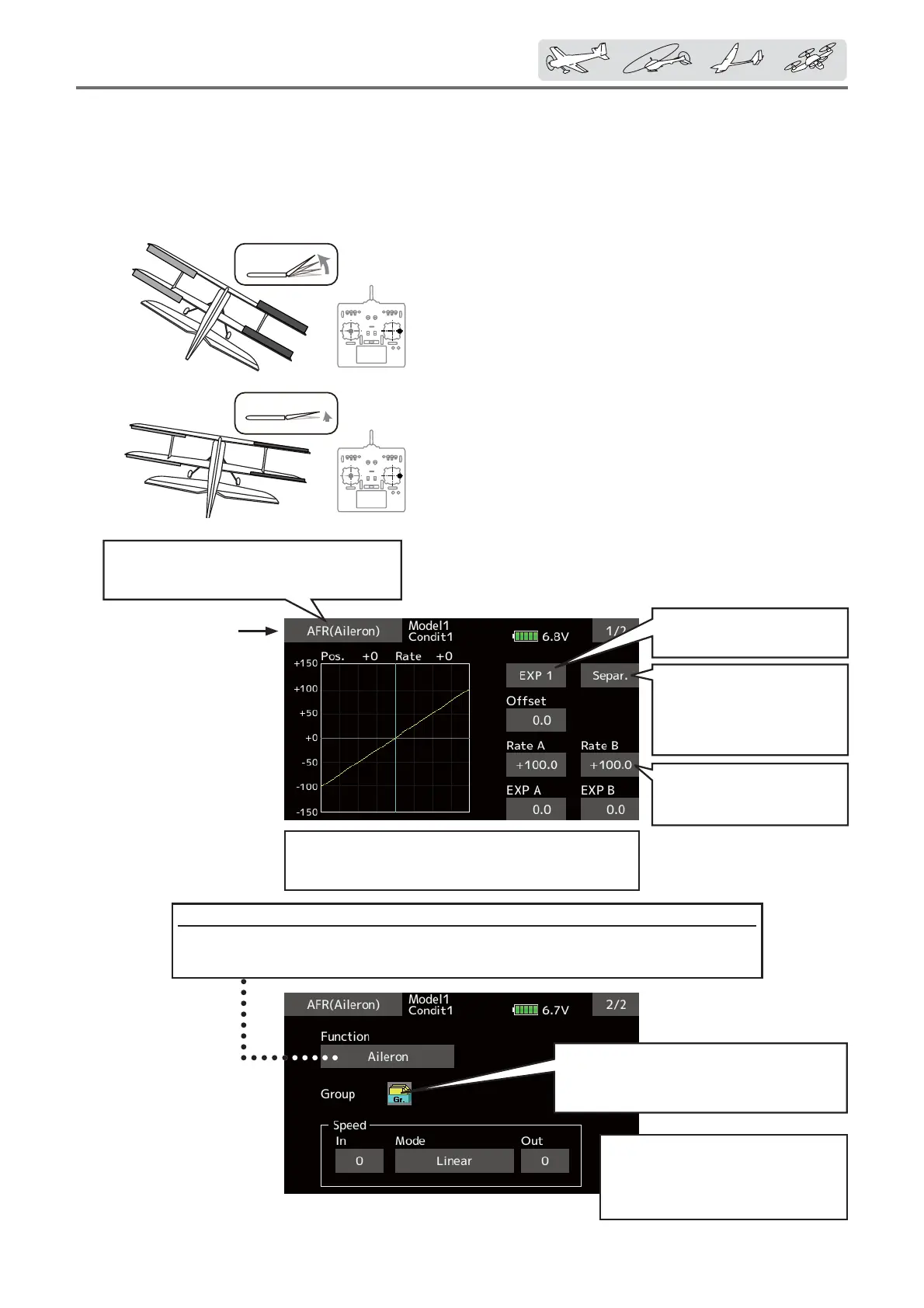

ŏ Select [AFR] at the model menu and call
the setup screen shown below.
Function selection
1. When the function select button is tapped, a selection screen appears.
2. Select the function you want to set at the selection screen.
WhenD/RisturnedON,thedisplaywill
show"D/R----",andtherudderangle(rate)
andEXPcanbesetwhenD/RisON.
● Operationcurvesetting
(Foradescriptionofthesettingmethod,seethe
descriptionatthebackofthismanual.)
● Servospeedsetting
(Foradescriptionofthesetting
method,seethedescriptionat
thebackofthismanual.)
● Group/singlemodeswitch(Gr./Sngl)
(Formoreinformation,seethe
descriptionatthebackofthismanual.)
ŏReturn to Model menu
Left/right,Up/down,overall
adjustmentatRateAand
RateB
Curveselect
Separately ⇔ Combination
(Leftandright
symmetrical
curve.)
Curveselect
EXP1,EXP2,Pointcurve
100%
40%
Rate
Rate
