FUTABA FX-36 - Servo Monitor

65
＜ Linkagemenu ＞
●Longpressthe[U/M]
buttonintheHome
screentocallthesetup
screenshown.
＜or＞
Eachchannelmovementcanbechecked.
Selectthe[OFF]orpushingthe
H/Ebutton → Testingisstopped
[Neutral]:Modewhichlockseachservointhe
neutralposition
[Moving]:Modewhichrepeatsoperationof
eachservo

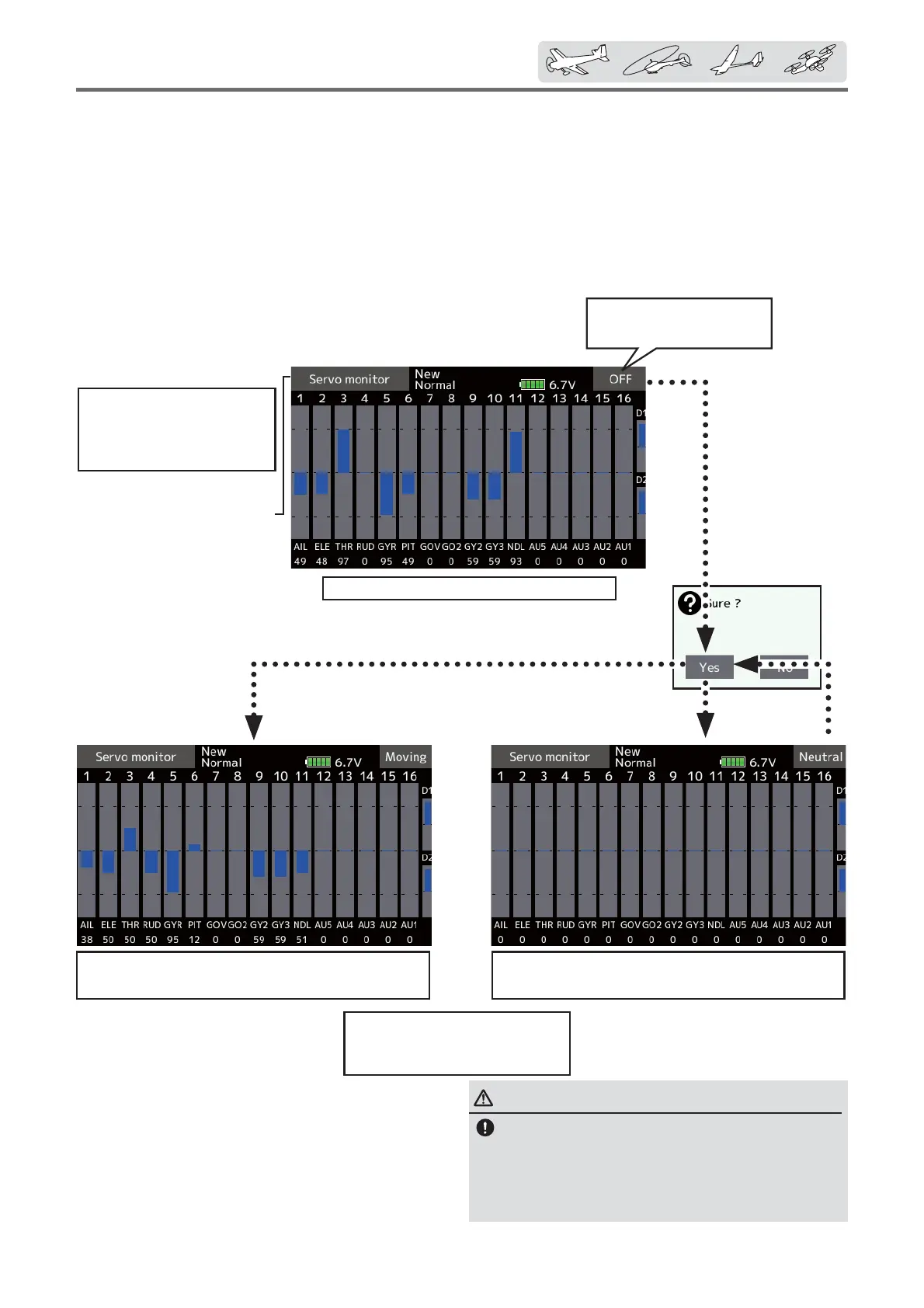

Servomonitor
Servo Test  Graph Display / Displays servo positions.
This is used for testing servo movement.
“Moving Test” (repetition mode) and “Neutral
Test” (¿xed position mode) are available.
The “Neutral Test” is good for finding the
neutral position of a servo horn.
In order to prevent any potential difficulties,
the servo test function will be inoperable, or
inaccessible, under certain conditions. Speci¿cally,
the Servo Test function is not operational if the
Throttle cut is ON in either airplane or helicopter
modes; or if the Throttle hold is ON in helicopter
mode.
ŏ Select [Servo monitor] at the linkage menu and
call the setup screen shown below.
WARNING
Don'tsetaservotestmodewhenthe
drivemotorisconnectedandtheengine
hasbeenstarted.
■ Inadvertentrotationofthemotororaccelerationofthe
engineisextremelydangerous.
Testmodechange:
OFF → Neutral → Moving
ŏReturn to Home or
Linkage menu
