＜ Linkagemenu ＞
The Linkage menu is made up of functions which
perform model addition, model type selection, end
point setting, and other model basic settings.
ŏ Select the function
name and return to
the Home screen.

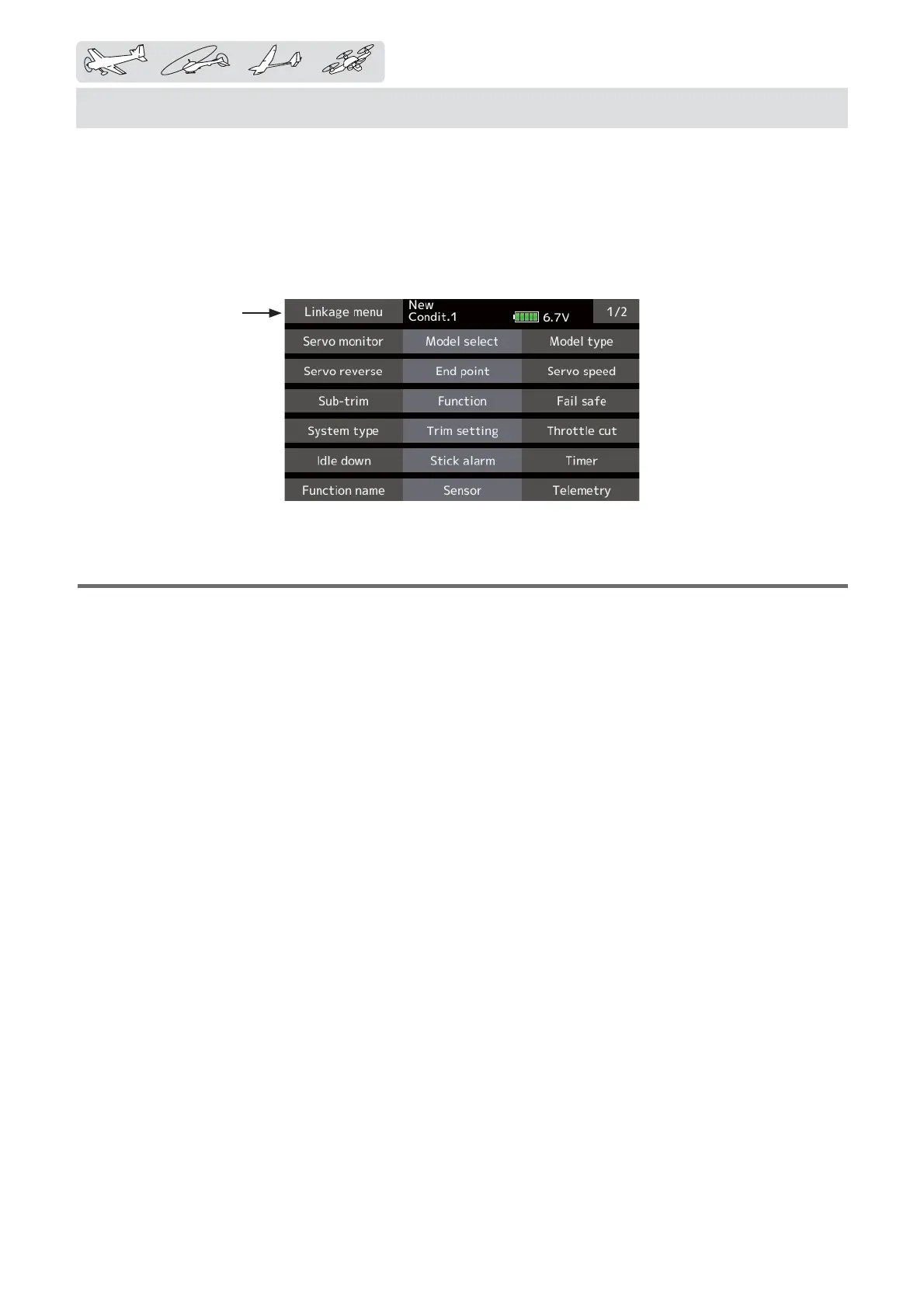

ŏ Tap the [Linkage menu] button in the Home
screen to call the setup screen shown below.
ůƌƑƎƄƊƈŃƐƈƑƘŃƉƘƑƆƗƌƒƑƖŃƗƄƅƏƈ
[Servo monitor]: Displays the servo test and operation position
[Model select]: Model addition, call, deletion, copy, model name setting
[Model type]: Model type, wing type, tail type, swash type, selection
[Servo reverse]: Servo direction reversal
[End point]: Servo basic rate adjustment and limit setting
[Servo speed]: Servo speed setting
[Sub-trim]: Adjusts the neutral position of each servo
[Function]: Channel assignment of each function can be changed
[Fail safe]: Fail safe function and battery fail safe function setting
[System type]: System mode selection, link of a transmitter and receiver, telemetry mode selection
[Trim setting]: Control step amount and mode selection of the digital trim
[Throttle cut]: Stops the engine safely and easily
[Idle down]: Lowers the idle speed of the engine
[Swash ring]: Limits the swash plate travel to within a ¿xed range. (helicopter only)
[Swash]: Swash AFR and linkage correction function (helicopter only except swash type H-1)
[Stick alarm]: Can be set so that an audible alarm sounds when the throttle stick reaches the set position.
[Timer]: Timer setting
[Function name]: Function name can be changed
[Sensor]: Various telemetry sensors setting
[Telemetry]: Displays various data sent from the receiver
[Tele.setting]: Telemetry data log
[Trainer]: Starts and sets the trainer system.
[Warning setting]: Mixing, throttle position warning reset
[User menu setting]: Original menu making
[Date reset]: Model memory set data reset (by item)
