17
M
OUNTING
/ P
ART
N
AMES
/ C
ONNECTING
Mount on a model using the attached mounting pad and mount it at the center posi-
tion of model gyro mount so that it is exactly parallel to the roll and pitch axis of the
aircraft.
*The CGY760R/CGY755 should be mounted on a rigid platform, at least 6
in. [152
mm] away
from a Nitro Engine. It is not necessary to mount the gyro near the main shaft of the model
but it is very important that the mounting area chosen is rigid. Please refer to your model
manufacturer’s instructions for recommended mounting locations.
*Test t the gyro sensor, ensuring that the sensor is in alignment with the model on the roll and
pitch axis. The cable from the gyro sensor must exit toward the front or the rear of the model
since this is the pitch axis. Any misalignment will cause a loss of performance.

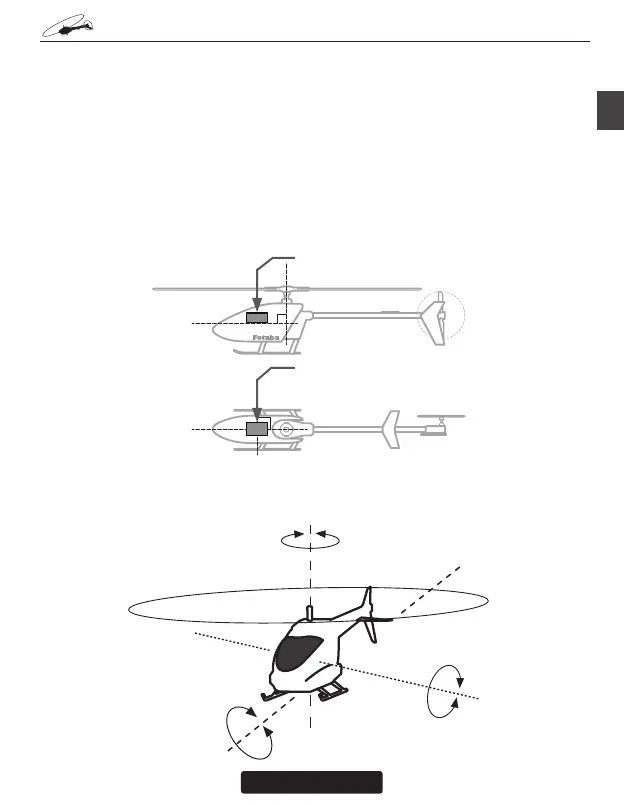

Mounting angle
• The bottom of the CGY760R/CGY755 Gyro Sensor
must be perpendicular to the main shaft.
•The roll axis must be parallel to the tail boom and
the pitch axis must be perpendicular to the side
frame.
Control axis
• Elevator (Pitch) axis
• Rudder (Yaw) axis
• Aileron (Roll) axis
To Next Page
