SWASH BASIC SETTING
)
This menu is utilized to perform the basic setup of swash motion.
"
SWH. BASIC
"
screen from the
"
BASIC MENU
"
screen.

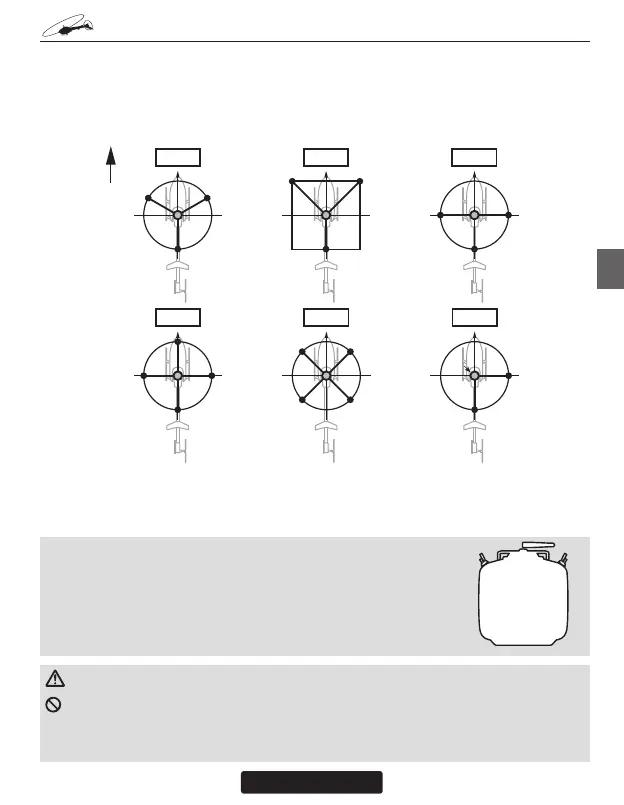

The CGY760R/CGY755 is compatible with the following six types swash plate.
Your transmitter should be reset to the default settings and the
swash plate type selected with the transmitter should be set to "H-
1" or single servo mode. All CCPM mixing is set up and handled in
the CGY, and the transmitter functions should not be used. Before
starting model set-up, be sure that all dual rates, pitch curve, and
endpoint values are set to 100/100.
AIL --------------------Aileron servo
ELE ----------------- Elevator servo
PIT --------- Collective pitch servo
ELE2 ---- Second elevator servo
WARNING
Do not connect the servo to the gyros until you select the servo
type in the "SWH. BASIC" menu.
*If the servo type is incorrect, it is possible to damage the servos or CGY.
ELE
PIT AIL
H3-120
ELE
PIT AIL
H3-140
ELE
PIT AIL
H3-90
ELE2
ELE
PIT AIL
H4-00
ELE2
FRONT
ELE
PIT
AIL
H4-45
ELE
PIT
AIL
H-1
H-1
Swash Type
To Next Page
