S.BUS SERVO SETTING Screen
An S.BUS servo can memorize the channel and various settings you input. Servo
setting can be performed on the GPB-1 screen by wiring the servo as shown in the
gure.
*With some S.BUS(2) servos, there are some functions which cannot be used. If a
function cannot be used, the display screen will change.

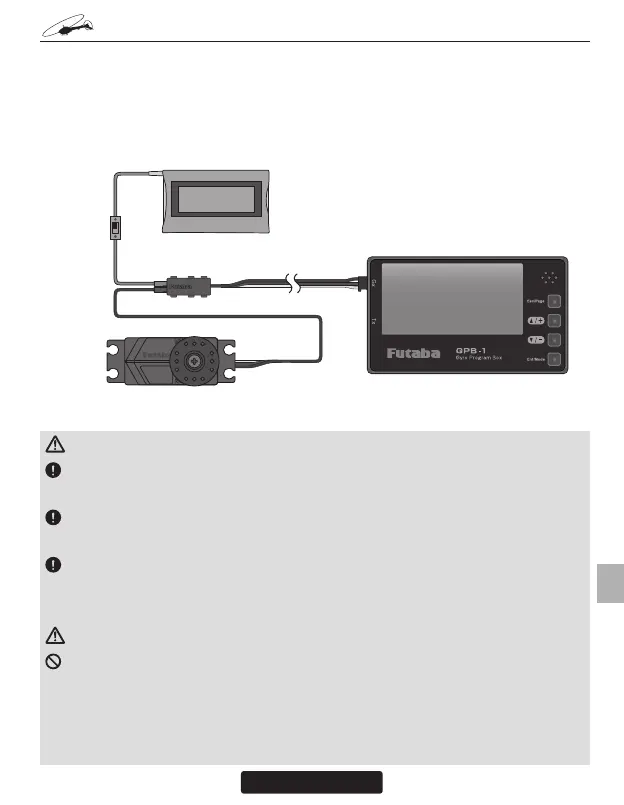

Double extension cable
S. BUS / S.BUS 2 Servo
(One servo can be connected)
Switch
GPB-1
Battery
CAUTION
Be sure to connect each servo and set it.
If multiple servos are connected at the same time, the servo may be damaged.
Be sure to turn off the power when replacing the servo.
Servo may be damaged if servo is replaced while power is on.
Please match the voltage of the battery to be used with the specifications of
the servo to be connected.
Servo will be damaged if voltage higher than specified is applied.
WARNING
Never connect CGY and GPB-1 when setting S.BUS servo. The helicopter be-
comes uncontrollable and crashes.
* Even if the servo is operating on the bench, it could be damaged.
