S.BUS Channel Setting
The default CGY760R/CGY755 S.BUS channel assignments should work properly
with most Futaba transmitters. If you experience any problems please refer to the
S.BUS section of the manual to set / verify each channel number for each function.
1. The "SBUS BASIC" menu of CGY760R/CGY755 is displayed.
2. Use the [
/
+] or [
/
-] key to select "AIL CH #" and press the [Enter] key to enter set-
ting mode. Check the transmitter’s aileron channel and set it to match the channel
with the [
/
+] or [
/
-] key. When you are done, press [Enter] key to exit setting mode.
3. Perform the same operation as above and set the function (such as aileron, pitch,
collective, tail rotor gain, rotor head gain, RPM, gv on/off) channels to the transmitter.
4. If your transmitter does not offer enough channels to operate all of the CGY’s func-
tions, it is possible to operate the CGY760R/CGY755 without the Gov SW, Rotor
Head Gain channels connected. When any of these functions are not used, it is
necessary to set the channel number to "INH" within the CGY’s S.BUS menu. Do-
ing so disables the function and enables the user of the value set in the CGY760R/
CGY755 menu accordingly.
When the Gov SW channel is not used, the governor on/off control is handled by the
[Stick Switch] function.
Governor Installation
To install the governor, it will be necessary to modify the helicopter's cooling fan.
Installation of the sensor and magnet are shown below. Balance the cooling fan as
needed following magnet installation.

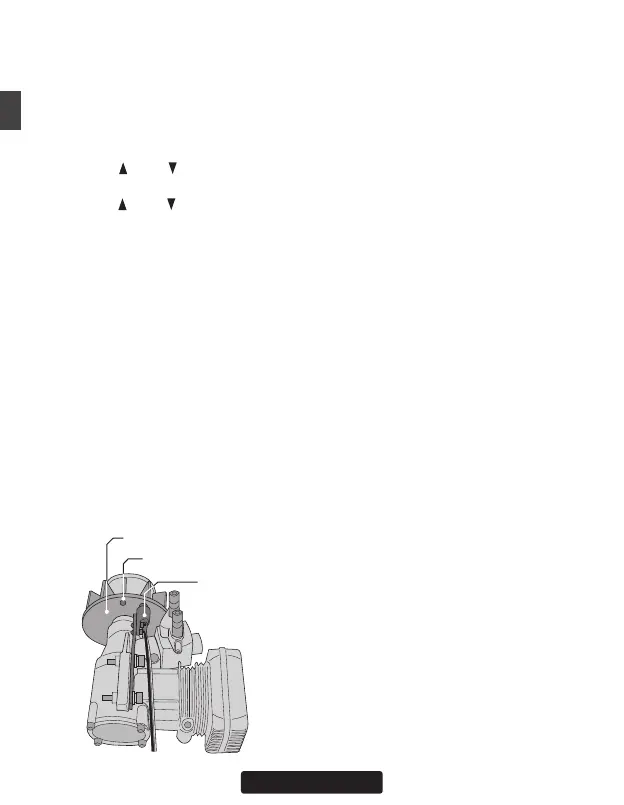

Cooling fan
Magnet (Embedded in cooling fan.)
Sensor (Attached to engine flange through the engine
mounting holes.)
If installing the sensor unit on the muffler side of the engine,
please follow a similar procedure.
